Cabling tips
If you do not have the option of feeding the cable through the wall, the following alternatives are
available:
1. Cable duct:
Feed the cable downwards and out from the mount. Use a cable duct (width at least 40 mm,
depth at least 30 mm) to protect the laid cable.
2. Surface-mounted box:
Use a surface-mounted box (width and height at least 105 mm, depth at least 35 mm) and drill a
hole into the box's cover so that the network cable and power cable can be fed into the surface-
mounted box. Next, install the camera and mount on the cover of the surface-mounted box. Install
the surface-mounted box in the desired installation location and screw the cover in place together
with the camera.
4.3. PPIC34520

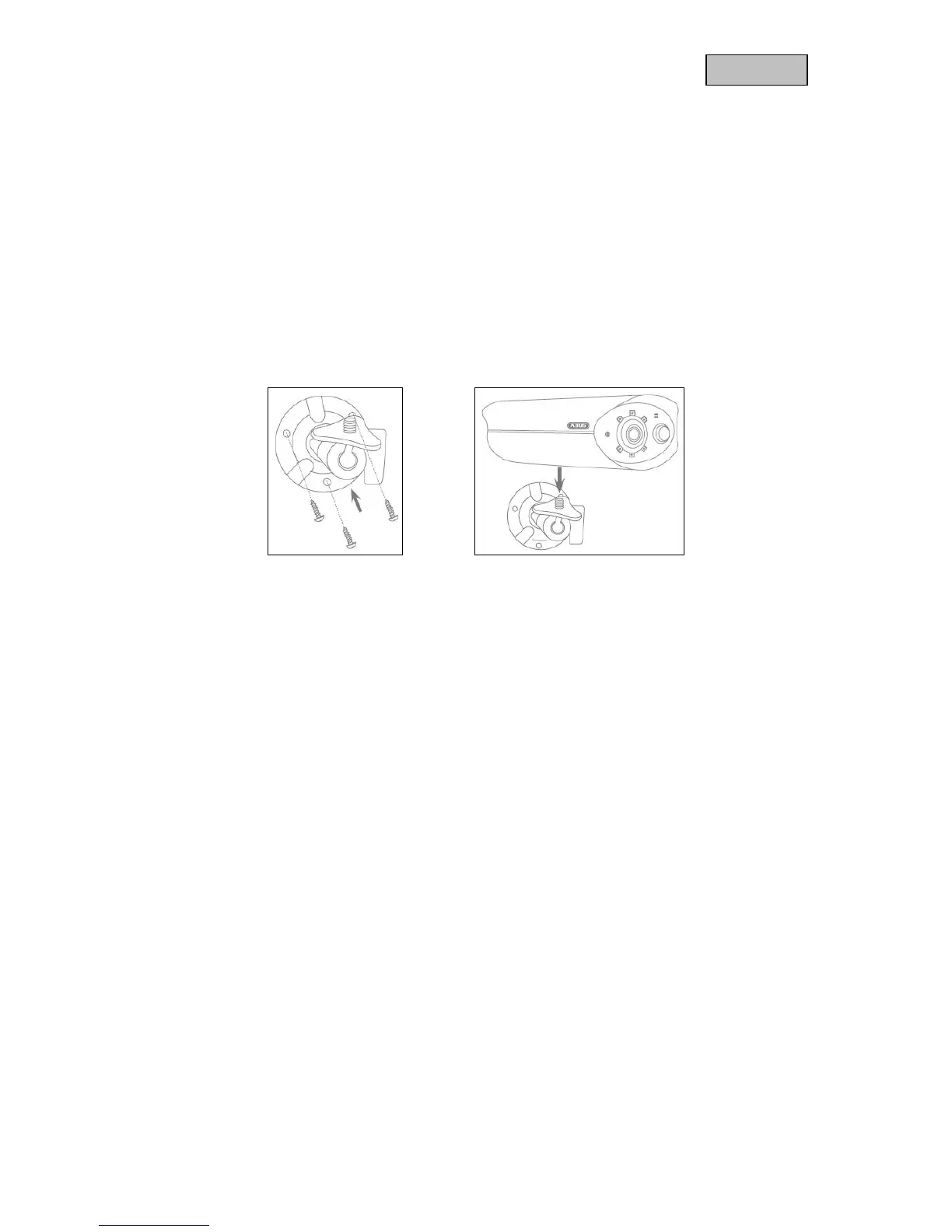

Position the mount where you intend to install the camera. Mark up and drill the required holes.
Next, use the screw anchors and screws provided to fasten the mount in place.
Next, install the camera on the mount by screwing the camera clockwise on to the thread. As soon as
the camera is fully screwed into position, lock the camera further into place by tightening the wing nuts
from underneath.
For alignment purposes, loosen the wing screw at the side and align the camera in the desired position.
Next, lock the camera into place once more by tightening the wing screw.
