6.2 Jumper settings

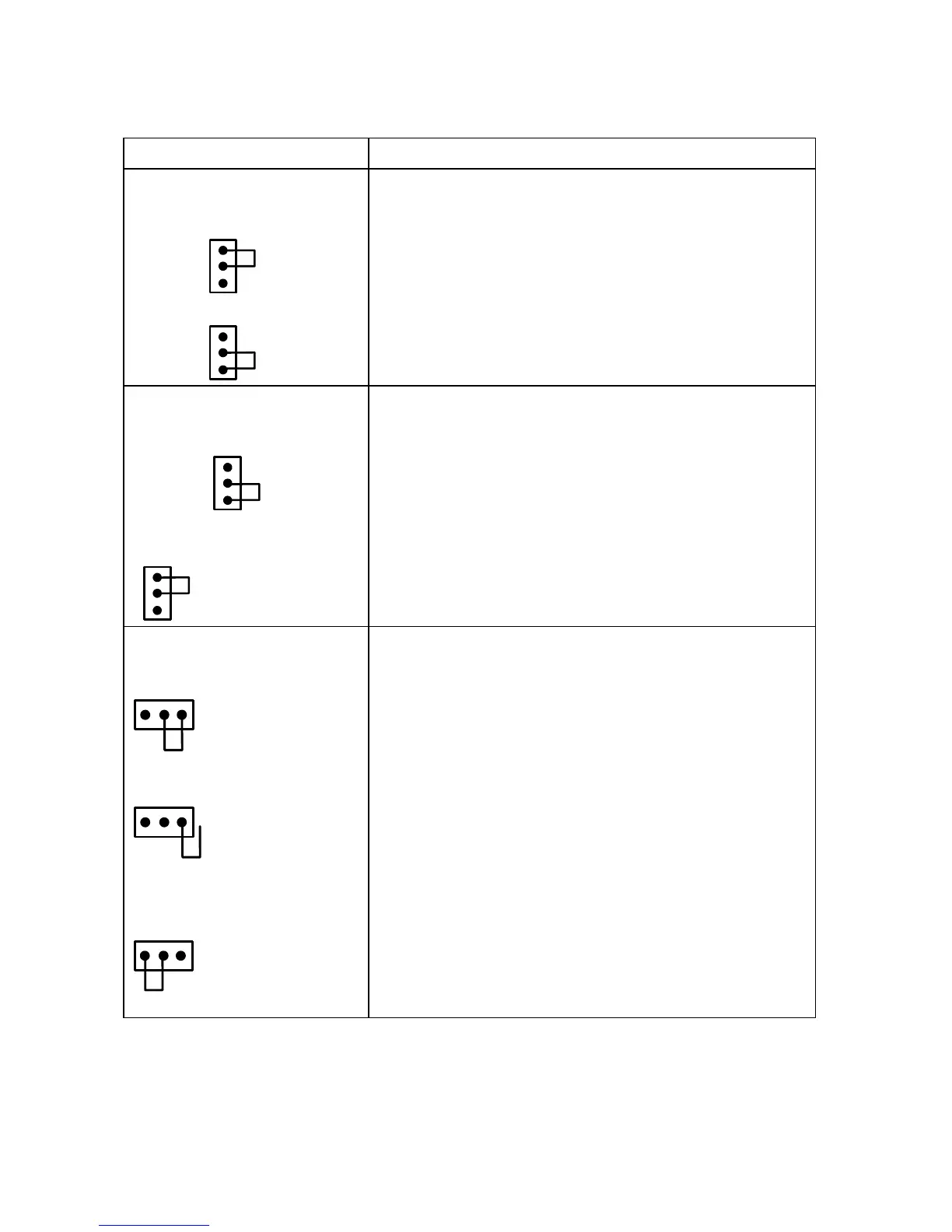

Setting Description
STROB
(Default: AUTO)
AUTO
STROB
Defines the strobe operation mode.
AUTO: The strobe follows the sounder triggering.
MAN
STROB
MAN: The strobe follows the triggering of the ST
input.
TRIG
(Default: C+)
C +
TRIG
Setting of the trigger potential of sounder.
C+: Use the C+ connection to activate the sounder
(Terminal C- is deactivated).
C -
TRIG
C-: Use the C- connection to activate the sounder
(Terminal C+ is deactivated).
TAMPER
(Default: EXT)
EXT
TAMPER
Defines the tamper output operation (wall and cover
contact).
EXT: The NC tamper output is for connection to an
external tamper line.
TAMPER
1 PIN (no connection):
As for the EXT setting, the tamper output is for
connection to an external tamper line. However,
there is an internal series-connected 2K2 resistor for
the EOL connection.
INT
TAMPER
INT:
Not used.
