ADDING MORE FANS
CONTROLLER 12
CLOUDPLATE fans can also be controlled using the CONTROLLER 12 rack cabinet unit. All
CLOUDPLATE fan units (secondary) must set their fan speeds to max, disable their alarms, and
left on SPEED mode, and be connected to the 12V DC EXT ports in order to be controlled by the
CONTROLLER 12 (primary).
The two 5V DC USB ports are used to support AIRPLATE cabinet fans and MULTIFAN component
USB fans. Connected units (secondary) must have their fan speed set to max in order to be
controlled by the CONTROLLER 12 (primary). No settings are required if the USB fans are not
equipped with a speed controller.

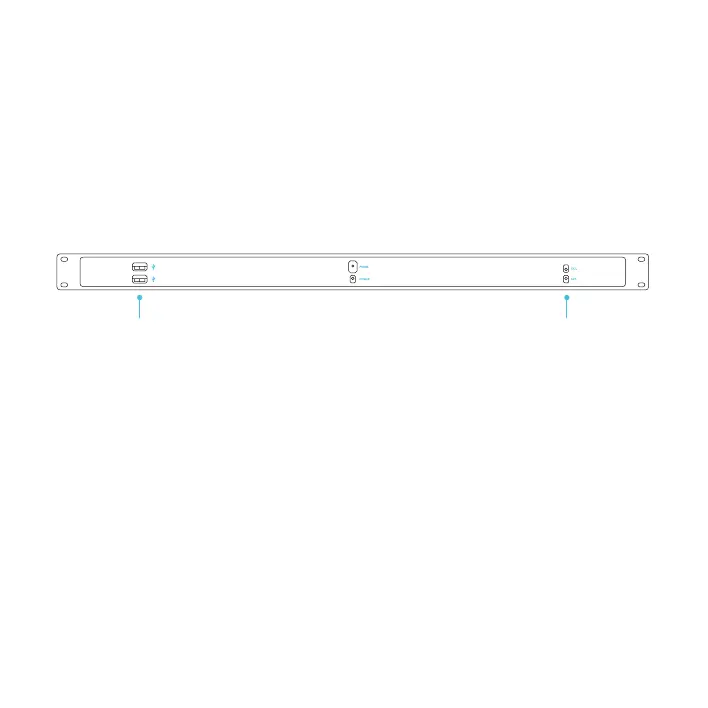

5V DC USB Ports 12V DC EX T. Ports
