Accu-Chek Aviva User Manual

You need the meter, a test strip, a lancing device designed for AST, and a lancet.
1. Prepare the lancing device.

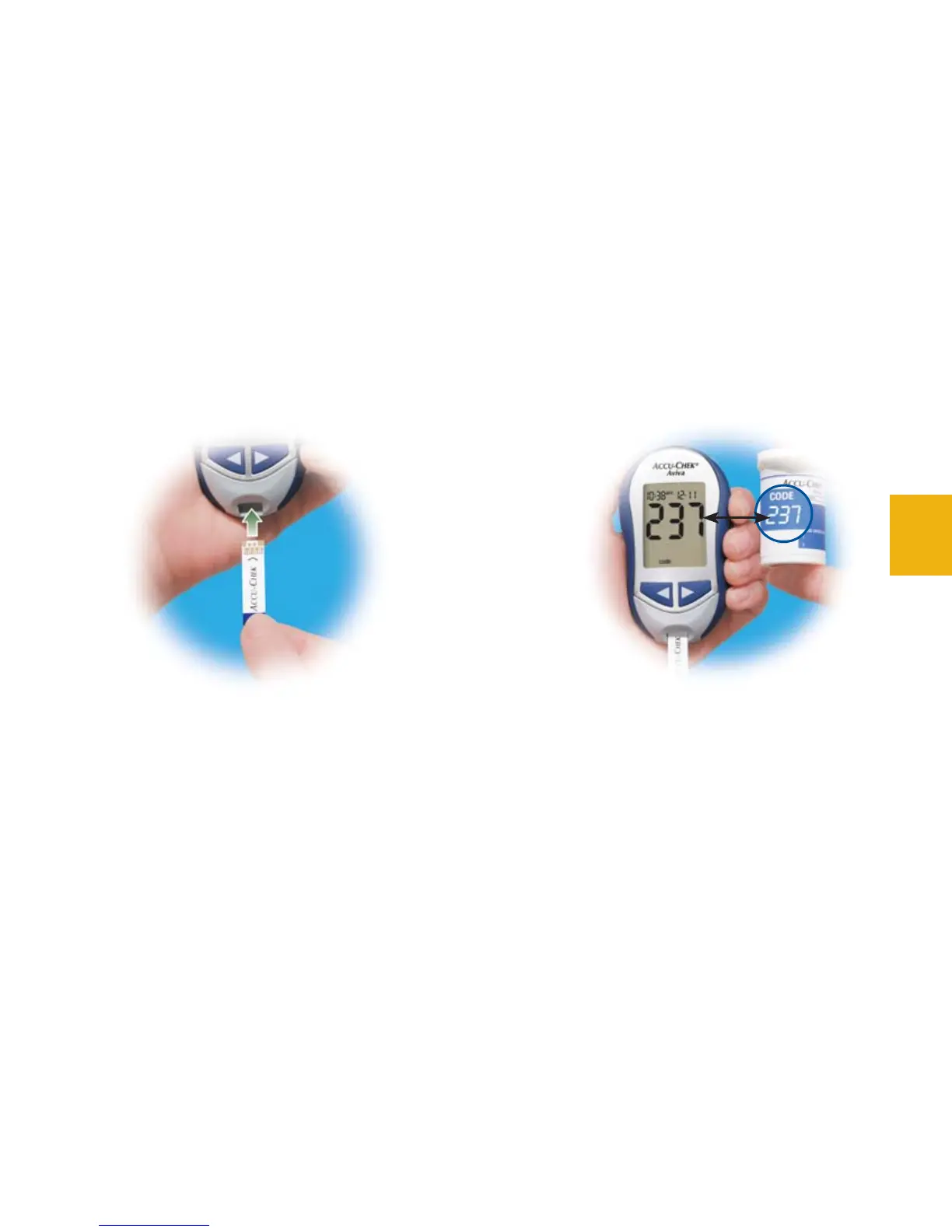

2. Insert the test strip into the meter in
the direction of the arrow. The meter
turns on.
3. Make sure the code number on the
display matches the code number on the
test strip container. If you miss seeing
the code number, remove the test strip
and reinsert it into the meter.
21

Accu-Chek Aviva Specifications

General

Sample Size	0.6 µL
Test Time	5 seconds
Coding	No coding required
Battery Life	Approximately 1000 tests
Memory	500 test results
Battery Type	1 x 3V lithium (CR2032)
Operating Humidity	10% to 90% RH
Meter Weight	59 g
Measuring Range	10 mg/dL to 600 mg/dL
Automatic Shut Off	After 90 seconds of inactivity
