Load cell color code
Terminal
assignment 123456
For load cell type:
4-conductor red green white black
6-conductor red blue green white brown black
or yellow
* For 4-conductor load cell - Pin 1, 2 and Pin 5, 6 connected with a jumper wire.

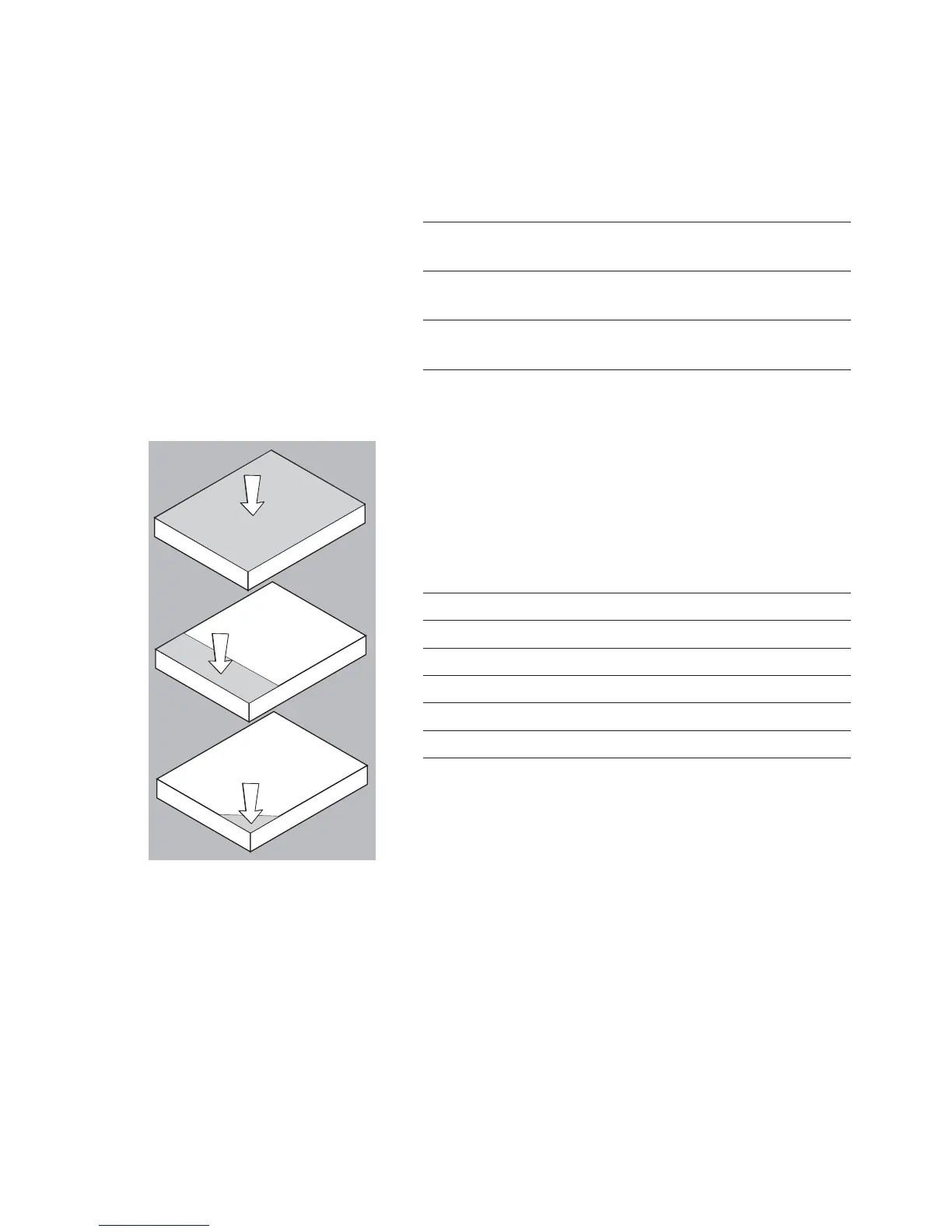

Operating Limits
Never exceed the maximum capacity of the scale.
The maximum loading capacities of the scale in this series are listed in the table
below, and depend on the position of the load on platform:
Model Width Length Center* Side Comer
(mm) (mm)
ECL6 240 320 50 35 20
ECL15 300 400 130 85 45
ECL30 400 500 500 400 200
ECL60 500 650 600 400 200
ECL150 700 700 600 400 200
ECL300 600 800 600 400 200
11
