Accuphase E-308 User Manual

-12-
K2
K1
K3 K4
IC1
IC2
Q1
K8
IC5
K9
K10
IC7
K11
K7
IC3
RELAY1
XTAL1
Digital Transistor X1,2,3 RN1206
ﾃﾞｼﾞﾀﾙﾄﾗﾝｼﾞｽﾀ
Transistor Q1 2SC3902-S/T
ﾄﾗﾝｼﾞｽﾀ
C1,3 CE04W1E102VK 1,000uF/ 25V
C4 CE04W1H2R2VK 2.2uF/ 50V
Electorlytic Capacitor C6 CE04W1E471VK 470uF/ 50V
ｱﾙﾐ電解ｺﾝﾃﾞﾝｻ C7 CE04W1E101VK 100uF/ 50V
C9 CE04W0J220VRE 22uF/6.3V
C10 CE04W1C220VRE 22uF/ 16V
Ceramic Capacitor C2,5,8,11,12 CK92Y5V1H104Z 0.1uF/50V
磁器ｺﾝﾃﾞﾝｻ
R1 RD142EA120J 12Ω 1/4W
R2 RD142EA4R7J 4.7Ω 1/4W
R3 RD142CA103J 10kΩ 1/6W
R4 RD142CA220J 22Ω 1/6W
R5 RD142CA105J 1MΩ 1/6W
Carbon Film Resistor R6 RD142CA223J 22kΩ 1/6W
炭素被膜抵抗器 R7 RD142CA152J 1.5kΩ 1/6W
R8 RD142CA101J 100Ω 1/6W
R9 RD142CA471J 470Ω 1/6W
R10 RD142CA332J 3.3kΩ 1/6W
R11～16 RD142CA102J 1kΩ 1/6W
R17 RD142CA473J 47kΩ 1/6W
Resistor Array RA1 RD92AK15C104J18
抵抗ｱﾚｨ
X3
X1
X2
K5
K6
F1

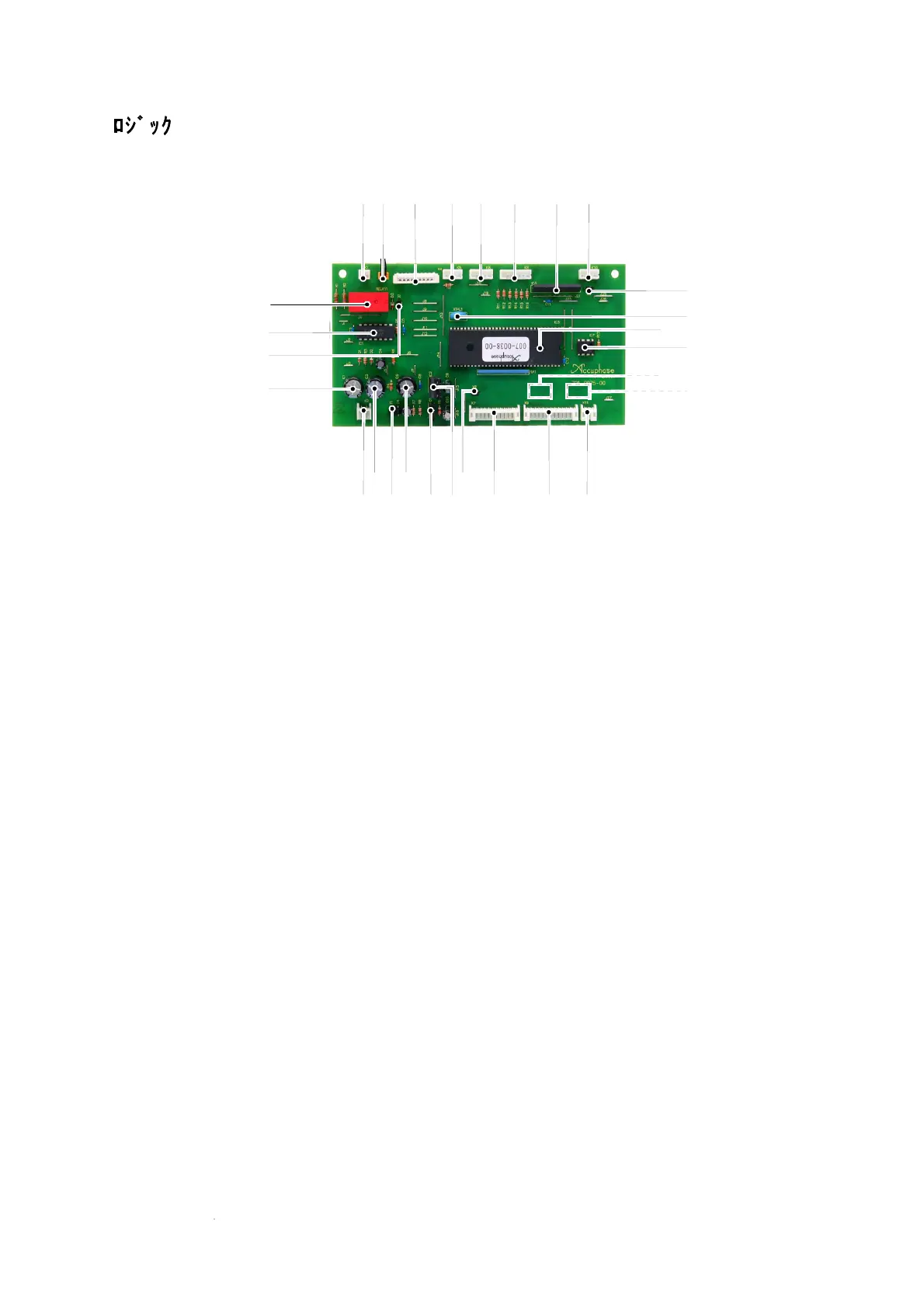

Logic Assembly (721-0075-00)
Ass'y
Connector Plug K1 308-0206-00
ｺﾈｸﾀﾌﾟﾗｸﾞ K2 308-0213-00
K5,10 308-0407-00
K6 308-0508-00
K7 308-1207-00
K8 308-0707-00
K9 308-1303-00
K11 308-0311-00
Connector Jack K4 307-0911-00
ｺﾈｸﾀｼﾞｬｯｸ
Connector Assembly K3 309-2260-04
ｺﾈｸﾀAss'y
IC Protector F1 310-8251-00
ICﾌﾟﾛﾃｸﾀ
Relay RELAY1 362-1212-00
ﾘﾚｨ
Crystal XTAL1 527-0012-00
ｾﾗﾛｯｸ
Diode D1,2,3 MA165
ﾀﾞｲｵｰﾄﾞ D4 1SR139-400
IC1 TC74HC14AP
IC2 NJM78M05FA
IC IC3 TMP87PH00N
IC4,6 TD62003AF
/TD62003F/EL
IC5 LB1642
IC7 M93C46-BN6
IC4
IC6
C6C3
C1
