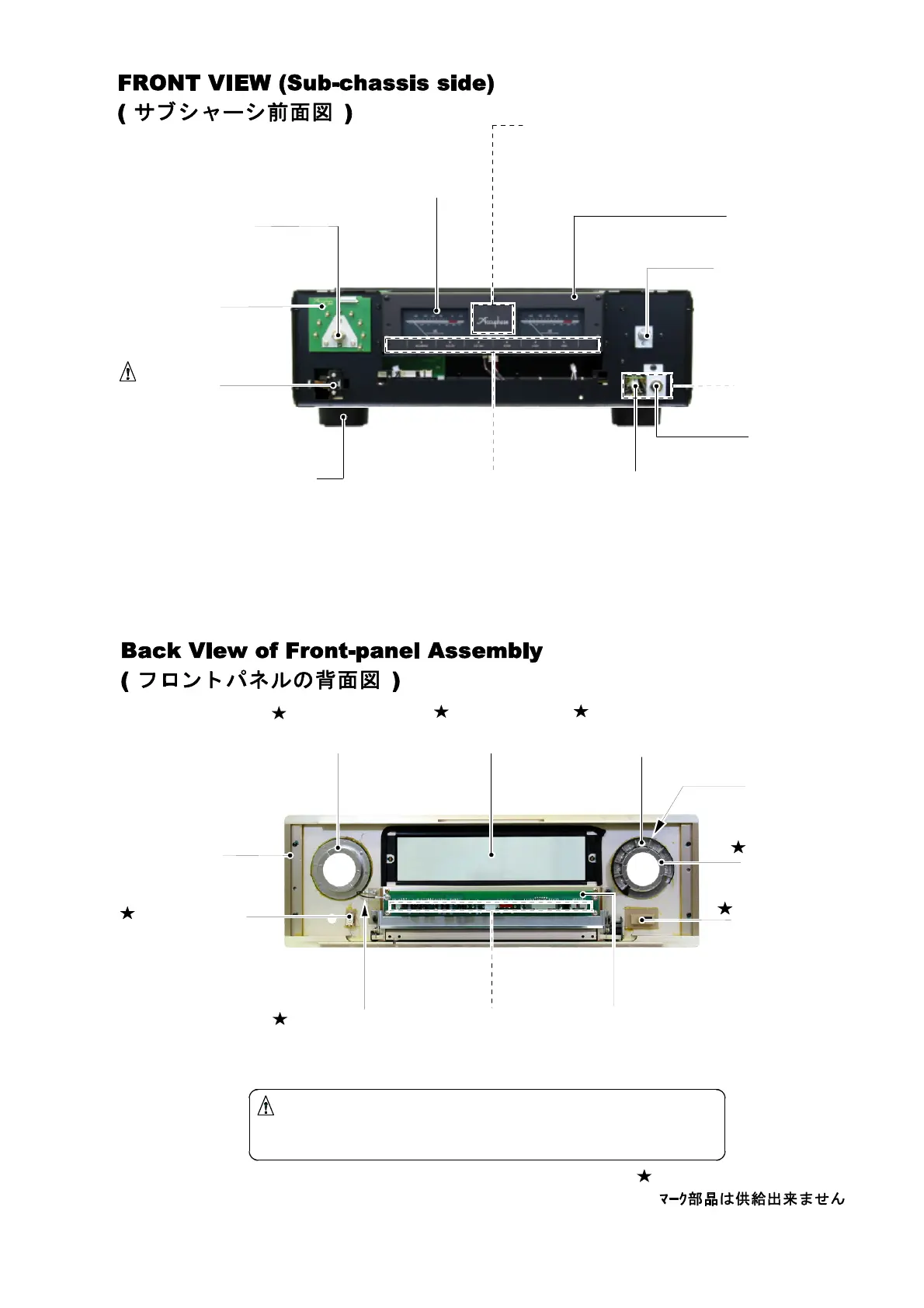

Accuphase E-308 User Manual

Power Push Switch
ﾊﾟﾜｰｽｲｯﾁ
(354-1023-00)
Variable Resistor
可変抵抗器/VR1:50kΩ-A
(575-2021-00)
Volume Assembly
ﾎﾞﾘｭｰﾑ Ass'y
(716-0679-00)
Push Switch/ATT
ﾌﾟｯｼｭｽｲｯﾁ
(354-1218-00)
Rotary Switch
ﾛｰﾀﾘｽｲｯﾁ / S1
(339-0002-00)
Input Selector Assembly
ｲﾝﾌﾟｯﾄｾﾚｸﾀ Ass'y
(716-0677-00)
Power Meter
ﾊﾟﾜｰﾒｰﾀ
(178-2038-10)
Pilot Lamp 1
ﾊﾟｲﾛｯﾄﾗﾝﾌﾟ/PL1,2,3
(176-3501-00)
Receiver Assembly
受光器Ass'y
(721-0076-00)
Head Phone Assembly
ﾍｯﾄﾞﾎﾝ Ass'y
(716-0676-00)
Head Phone Jack
ﾍｯﾄﾞﾎﾝｼﾞｬｯｸ
(302-1204-00)
Selector LED Assembly
ｾﾚｸﾀLED Ass'y
(723-0094-00)
Foot
脚
(238-0023-00)
-４-
Attention mark indicating critical components for safety.
Replacement must be made with identical parts of special part number.
このマークのついている部品は、安全上重要な部品です。
必ず指定されている部品番号の部品を使用して下さい。
Indicator
ｲﾝﾃﾞｨｹｰﾀ
(173-9077-03)
Display Assembly
ﾃﾞｨｽﾌﾟﾚｲAss'y
(723-0092-00)
Front Glass
ﾌﾛﾝﾄｶﾞﾗｽ
(172-0129-03)
Knob Base
台座 /INPUT
(170-0033-13)
Knob Base
台座 /VOLUME
(170-0032-04)
Push Button/POWER
ﾌﾟｯｼｭﾎﾞﾀﾝ
(388-5044-03)
Push-button Frame
ﾌﾟｯｼｭﾎﾞﾀﾝﾌﾚｰﾑ
(113-0100-14)
Coil Spring
ｽﾌﾟﾘﾝｸﾞ
(285-1016-04)
Push Button/ATT
ﾌﾟｯｼｭﾎﾞﾀﾝ
(389-5077-13)
Push-button Frame
ﾌﾟｯｼｭﾎﾞﾀﾝﾌﾚｰﾑ
(113-0111-14)
Coil Spring
ｽﾌﾟﾘﾝｸﾞ
(285-1023-04)
Tone Amp Assembly
ﾄｰﾝｱﾝﾌﾟAss'y
(712-0094-00)
Switch Assembly
ｽｲｯﾁ Ass'y
(716-0678-00)
Rubber Cussion
ｺﾞﾑｸｯｼｮﾝ
(250-2079-04)
Connector Ass'y
ｺﾈｸﾀ Ass'y
(309-4138-04)
mark parts not supplied
Position Indicator
ﾎﾟｼﾞｼｮﾝｲﾝﾃﾞｨｹｰﾀ/8pcs.
(173-1902-04)
Binding Screw
ﾌﾞﾚｻﾞｰﾀｯﾌﾟﾀｲﾄ/4pcs.
(611-0414-02)
Panel End Cap
ﾊﾟﾈﾙｴﾝﾄﾞｷｬｯﾌﾟ
(132-0106-04)
