Accuphase E-308 - E-308 page02_FrontRear

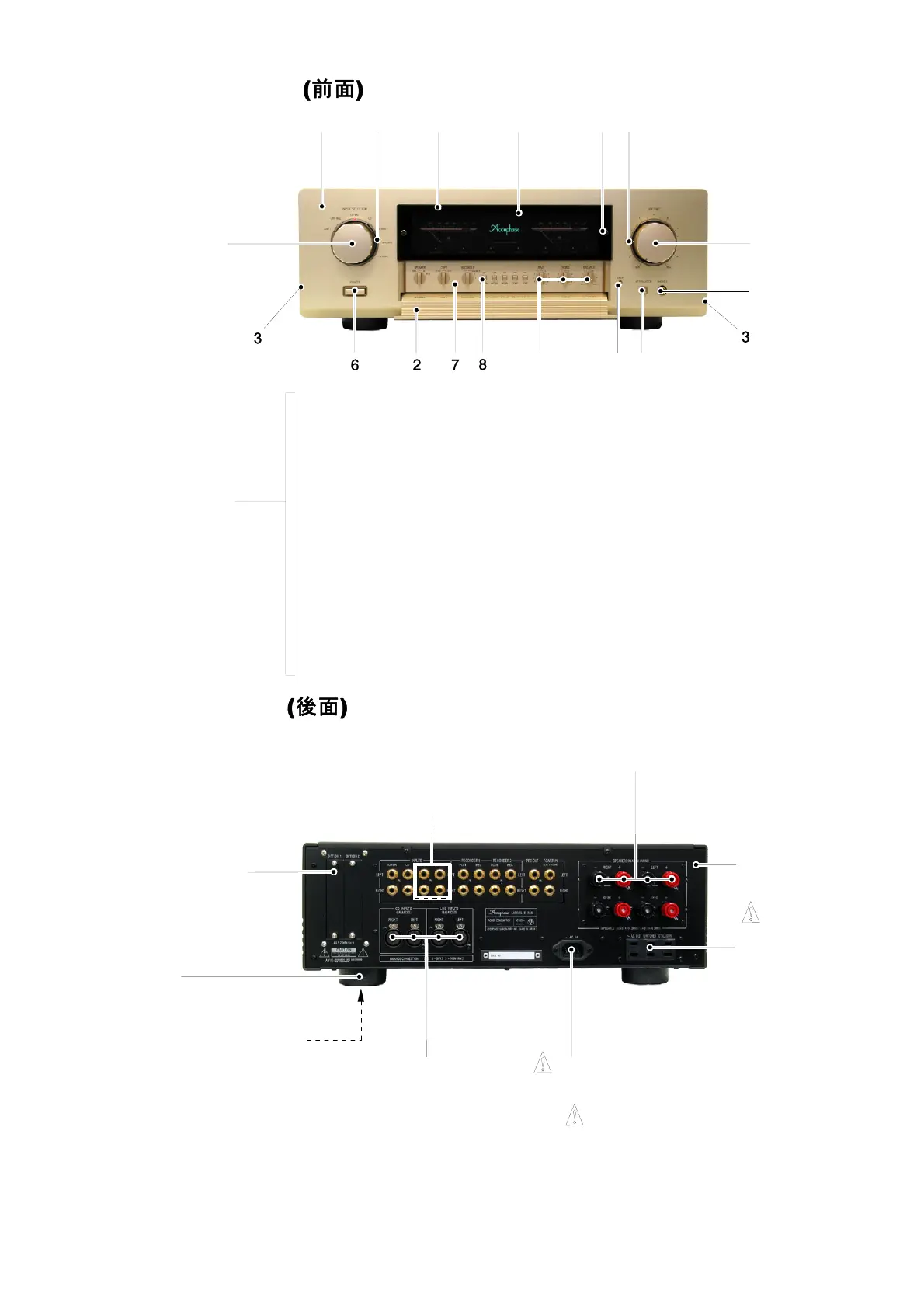

FRONT VIEW
REAR VIEW
Pin Jack
ﾋﾟﾝｼﾞｬｯｸ /5pcs.
(302-0411-00)
Pin Jack Cover
ﾋﾟﾝｼﾞｬｯｸｶﾊﾞ/20pcs.
(254-2015-04)
Foot
脚
(238-0023-00)
Decoration Plate
ｽﾛｯﾄﾊﾟﾈﾙ
(159-0059-04)
Fixing Screw
飾りﾈｼﾞ/4pcs.
(630-0302-04)
ﾜｯｼｬ/4pcs.
(637-9045-04)
XLR (Cannon) Receptacle
ｵｰﾃﾞｨｵｺﾈｸﾀｼﾞｬｯｸ/4pcs.
(302-8011-00)
Connector Cover/Female
ｺﾈｸﾀｶﾊﾞ/ 4pcs.
(254-2012-00)
AC Outlet
ACｿｹｯﾄ/J type only
(305-1209-00)
AC Inlet
AC ｺﾈｸﾀﾌﾟﾗｸﾞ
(301-3304-00)
Power Supply Cord
電源ｺｰﾄﾞ
J type:680-1204-00
U type:680-2401-00
E type:680-3402-00
Rear Panel
ﾊﾞｯｸﾊﾟﾈﾙ
(135-0166-02)
Front Panel Assembly
ﾌﾛﾝﾄﾊﾟﾈﾙ Ass'y
(130-0177-11)
1 Front Panel=131-0177-11
ﾌﾛﾝﾄﾊﾟﾈﾙ
2 Sub-panel =134-0145-02
ｻﾌﾞﾊﾟﾈﾙ
3 Panel End Cap=132-0106-04
ﾊﾟﾈﾙｴﾝﾄﾞｷｬｯﾌﾟ
4 Front Glass=172-0129-03
ﾌﾛﾝﾄｶﾞﾗｽ
5 Decoration Screw=630-0304-14
飾りﾈｼﾞ
Washer =637-9045-04
ﾜｯｼｬ
6 Push-button=388-5044-03
ﾌﾟｯｼｭﾎﾞﾀﾝ /POWER
Coil Spring=285-1016-04
Frame=113-0100-14
7 Panel Name Plate=180-1095-13
ﾊﾟﾈﾙﾈｰﾑﾌﾟﾚｰﾄ
1pce.
1pce.
2pcs.
1pce.
2pcs.
2pcs.
1pce.
1pce.
1pce.
1pce.
8 Push-button=389-5080-03
ﾌﾟｯｼｭﾎﾞﾀﾝ /TONE,COMP,MODE,METER
EXTPRE
9 Push-button=389-5077-13
ﾌﾟｯｼｭﾎﾞﾀﾝ /ATT.
Coil Spring=285-1023-04
Frame=113-0111-14
10 Push-button=388-0305-04
ﾌﾟｯｼｭﾎﾞﾀﾝ /OPEN
.
11 Indicator=173-9077-03
ｲﾝﾃﾞｨｹｰﾀ
Light Holder=234-1095-03
ﾗｲﾄﾎﾙﾀﾞ
Rubber Cushion=250-2119-04
ﾗﾊﾞｰｸｯｼｮﾝ
12 Knob Base=170-0032-04/VOLUME
13 Knob Base=170-0033-13/INPUT
台座
1pce.
1pce.
1pce.
1pce.
1pce.
1pce.
1pce.
1pce.
1pce.
1pce.
1
4
5
Knob for VOLUME
ﾂﾏﾐ
(381-4501-14)
Head Phone Jack
ﾍｯﾄﾞﾎﾝｼﾞｬｯｸ
(302-1204-00)
Knob for INPUT
ﾂﾏﾐ
(381-4503-04)
Knob for TONE,BAL
ﾂﾏﾐ
(384-1405-04)
-２-
Speaker Terminal
出力端子
(313-0041-00)
11
12
13
10
9
Binding Screw
ﾌﾞﾚｻﾞｰﾀｯﾌﾟﾀｲﾄ/4pcs.
(611-0414-02)
