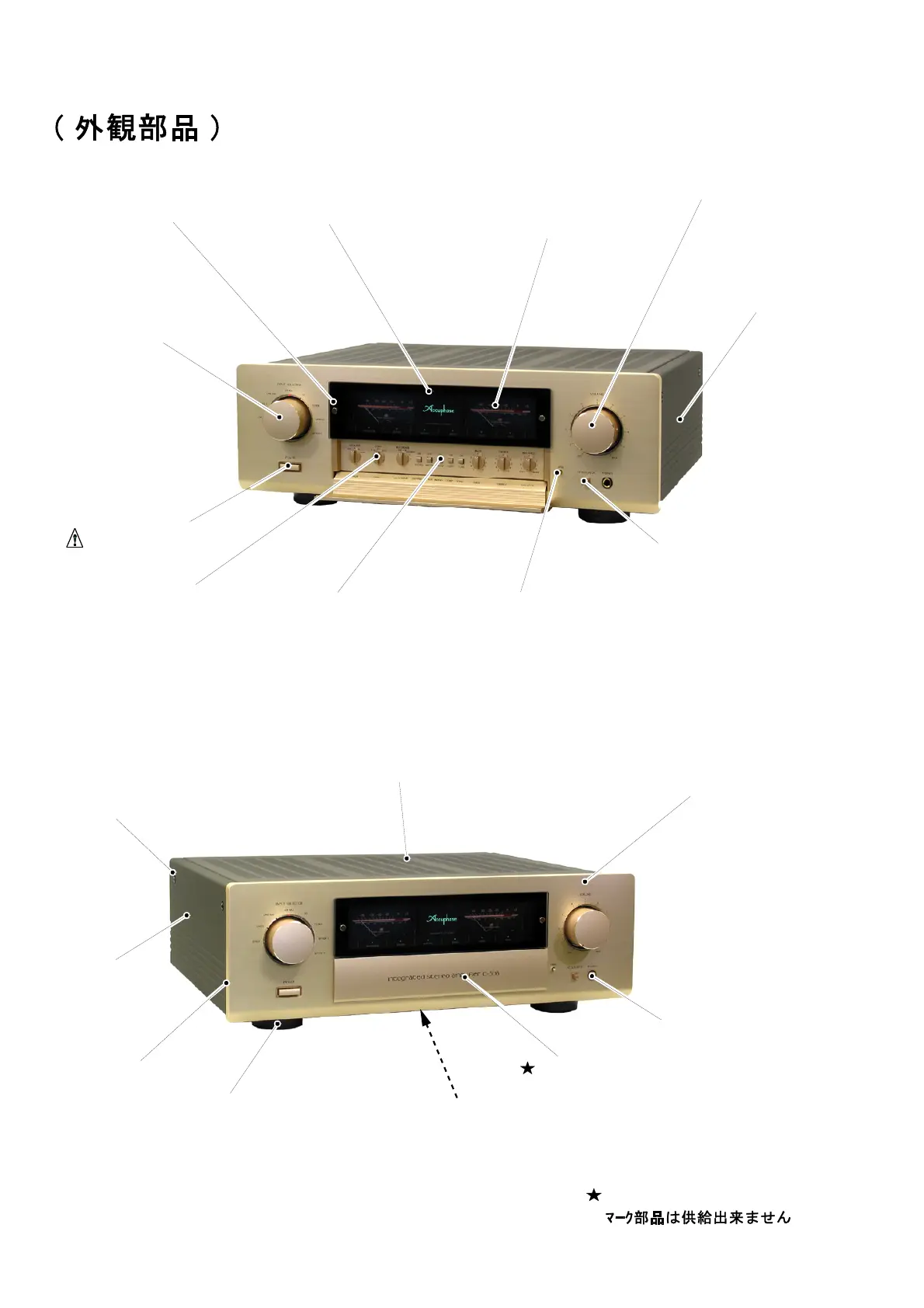

EXPLANATION OF SURFACE PARTS
Meter
メータ
(178-2038-10)
Knob for INPUT
ツマミ
(381-4503-04)
Knob for VOLUME
ツマミ
(381-4501-14)
Push-button for POWER
プッシュボタン
(388-5044-03)
Push-button for ATT
プッシュボタン
(388-5077-13)
Front Panel Assembly
フロントパネル Ass'y
(130-0177-11)
Front Glass
フロントガラス
(172-0129-03)
Decoration Screw
飾りネジ/2pcs.
(630-0304-14)
Washer
ワッシャ/2pcs.
(637-9045-04)
Bottom Plate
ボトムプレート
(155-0062-52)
Foot
(238-0023-00)
Sub Panel
サブパネル
(134-0145-02)
Panel End-cap
パネルエンドキャップ
(132-0106-04)
-1-
Side Panel
サイドパネル
(139-0034-22)
Side Panel
サイドパネル
(139-0034-22)
Top Plate
トッププレ-ト
(150-0068-12)
Head Phone Jack
ヘッドホンジャック
(302-1204-00)
Head Phone Ass'y
(716-0676-00)
Push-button for TONE
プッシュボタン/1pce.
(389-5080-03)
Push-button for Opener
プッシュボタン
(388-0305-04)
Power Push Switch
(354-1023-00)
Knob for SP,COPY,RECORDER
ツマミ/6pcs.
(384-1405-04)
mark parts not supplied
Binding Screw
バインドねじ/4pcs.
(604-0408-00)
Washer
平ワッシャ/4pcs.
(637-0042-07)
