Accuphase M-8000 - Page02 Front & Rear View

－２－

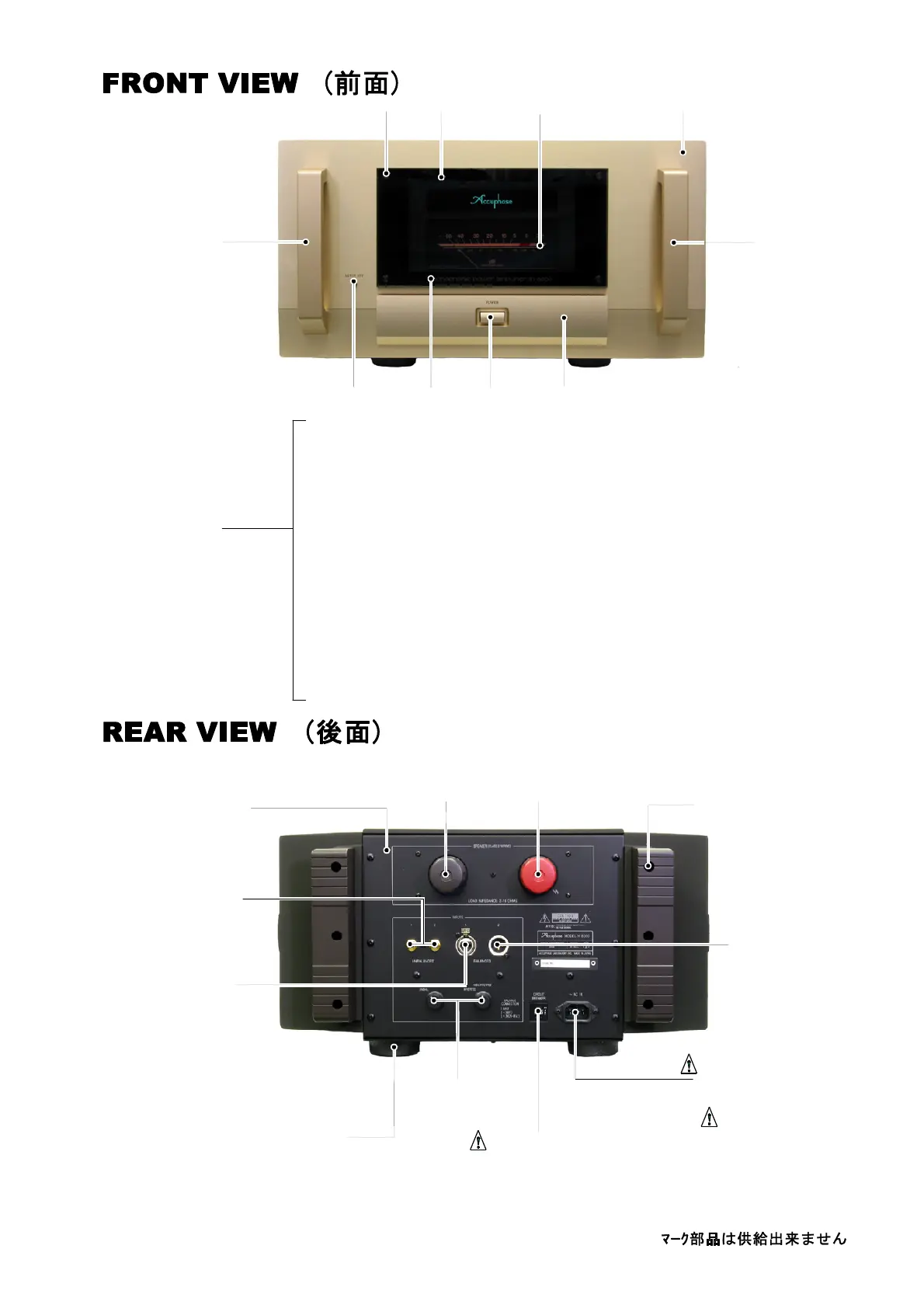

Front Panel Assembly
ﾌﾛﾝﾄﾊﾟﾈﾙ Ass'y
(130-0167-01)
1. Front Panel=131-0167-01
ﾌﾛﾝﾄﾊﾟﾈﾙ
2. Sub-panel=134-0135-03
ｻﾌﾞﾊﾟﾈﾙ
3. Handle A=132-0114-00
取手
4. Push-button=388-5061-13
ﾌﾟｯｼｭﾎﾞﾀﾝ /POWER
4-1. Push-button Frame=113-0122-04
ﾌﾟｯｼｭﾎﾞﾀﾝﾌﾚｰﾑ
4-2. Coil Spring=285-1022-04
ｺｲﾙｽﾌﾟﾘﾝｸﾞ
4-3. Washer=637-0041-02
ﾜｯｼｬ
4-4. E-ring=647-1055-00
E-ﾘﾝｸ
ﾞ
5. Push-button=388-0502-04
ﾌﾟｯｼｭﾎﾞﾀﾝ /METER
1pce.
1pce.
2pcs.
1pce.
1pce.
1pce.
1pce.
1pce.
1pce.
1pce.
5-1. Retainer=283-1019-14
軸受
5-2. Coil Spring=285-1030-04
ｺｲﾙｽﾌﾟﾘﾝｸﾞ
5-3. E-ring=647-1054-00
E-ﾘﾝｸﾞ
6. Front Glass=172-0120-03
ｶﾞﾗｽ
7. Decoration Screw=630-0306-04
飾りﾈｼﾞ
7-1 Washer=637-9050-04
ﾜｯｼｬ
7-2 Nut=633-2032-02
六角ﾅｯﾄ
8. Panel Name Plate=180-1097-03
ﾊﾟﾈﾙﾈｰﾑﾌﾟﾚｰﾄ
Foot/脚
(238-0023-00)
Binding Serew
ﾌﾞﾚｻﾞｰﾀｯﾌﾟﾀｲﾄ/4×14
(611-0414-02)
Foot / 脚
(238-0020-22)
Binding Serew
ﾌﾞﾚｻﾞｰﾀｯﾌﾟﾀｲﾄ/4×14
(611-0414-02) 6pcs.
XLR (Cannon)
Plug Receptacle
ｵｰﾃﾞｨｵｺﾈｸﾀﾌﾟﾗｸﾞ
(301-8005-00)
Connector
Cover/Female
ｺﾈｸﾀｶﾊﾞ
(254-2011-00)
SP Terminal(Black)
出力端子 (黒)
(313-1011-32)
AC Inlet/AC ｺﾈｸﾀﾌﾟﾗｸﾞ
(301-3304-00)
Power Supply Cord
電源ｺｰﾄﾞ
J type:680-1404-00
U type:680-2402-00
E type:680-3402-00
Rear Panel
ﾊﾞｯｸﾊﾟﾈﾙ
(135-0156-02)
SP Terminal(Red)
出力端子 (赤)
(313-1012-32)
Knob/ﾂﾏﾐ
(384-2001-04)
Pin Jack/ﾋﾟﾝｼﾞｬｯｸ
(302-0112-00)
Pin Jack Cover
ﾋﾟﾝｼﾞｬｯｸｶﾊﾞ
(254-2015-04)
Meter/ﾒｰﾀｰ
(178-2039-00)
1
2
4
6
8
5
7
3
3
1pce.
1pce.
1pce.
1pce.
4pcs.
4pcs.
1pce.
1pce.
mark parts not supplied
★
★
★
★
★
★
Circut Breakr/ｻｰｷｯﾄﾌﾞﾚｰｶ
J,U type (311-0204-00)20A
E type (311-0104-00)10A
★
XLR (Cannon)
Jack Receptacle
ｵｰﾃﾞｨｵｺﾈｸﾀｼﾞｬｯｸ
(302-8006-00)
Connector Cover/Female
ｺﾈｸﾀｶﾊﾞ
(254-2012-00)
