Accuphase M-8000 - Page07_716-0639,0640,0642

ln-rush Protector Assembly (716-0640-00) for D/U Model
－７－

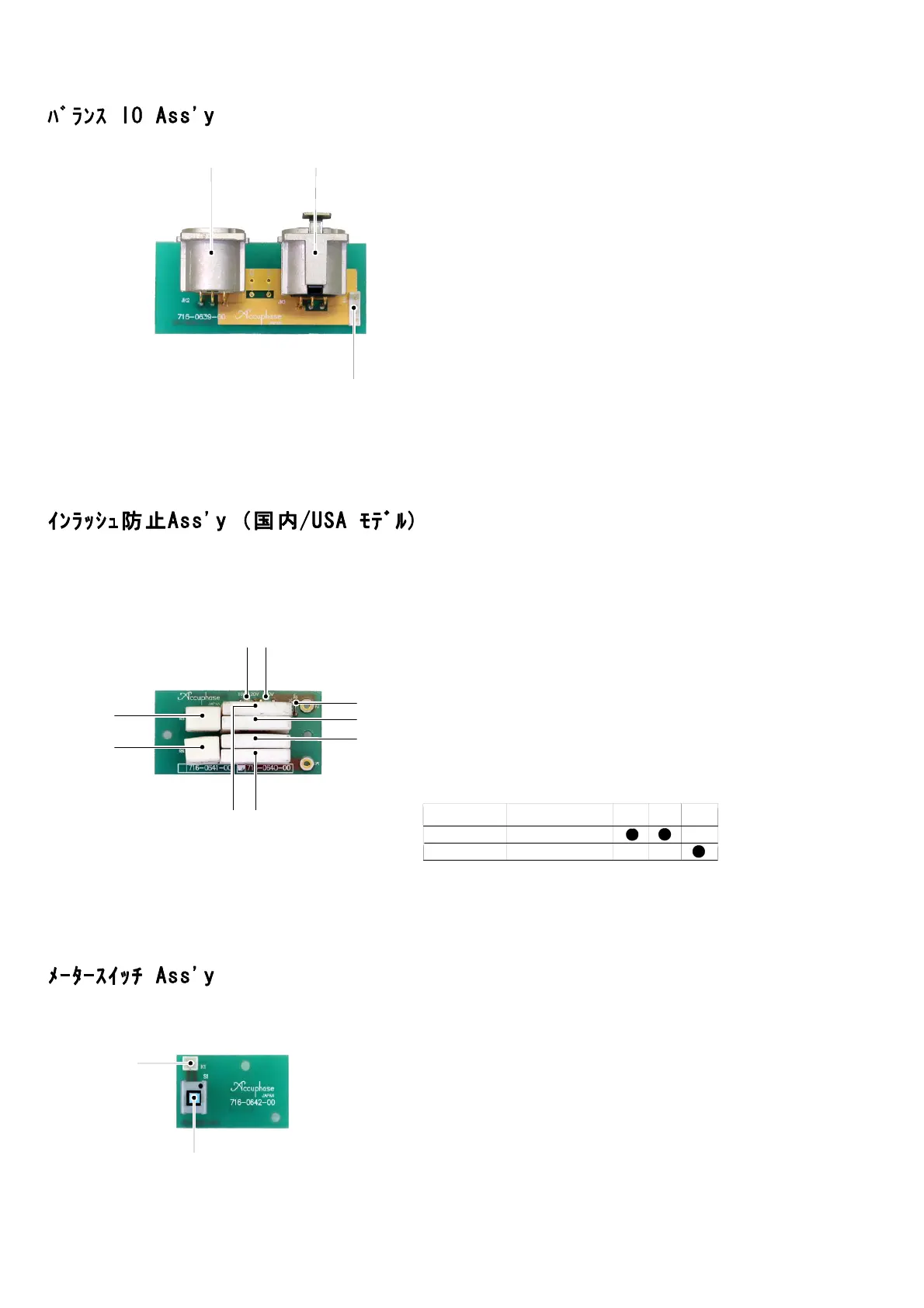

Balance IO Assembly (716-0639-00)
<716-0641-00 for Etype Model>
Meter Switch Assembly (716-0642-00)
XLR Audio Jach JK1 302-8006-00
ｵｰﾃﾞｨｵｺﾈｸﾀｼﾞｬｯｸ
XLR Audio Plug JK2 301-8005-00
ｵｰﾃﾞｨｵｺﾈｸﾀﾌﾟﾗｸﾞ
Connector Plug K1 308-0419-00
ｺﾈｸﾀﾌﾟﾗｸﾞ
Metal Plate Resistor R1,2,3,4 RW994AJ3R3J-S 3.3Ω/5W
金属板抵抗器
Fuse Resistor R5,6 RF993HG2R2J 2.2Ω/5W
ﾌｭｰｽﾞ抵抗器
Connector Plug K1 308-0206-00
ｺﾈｸﾀﾌﾟﾗｸﾞ
Push Switch S1 354-1219-00
ﾌﾟｭｼｭｽｲｯﾁ
K1
JK1
JK2
R1
R6
R3
R5
R4R2
K1
S1
Jumper Setting/ｼﾞｬﾝﾊﾟｰ設定
J1
J2
J3
VOLTAGE Ass'y NO
J1 J2 J3
100-120V 716-0640-00
230V 716-0641-00
