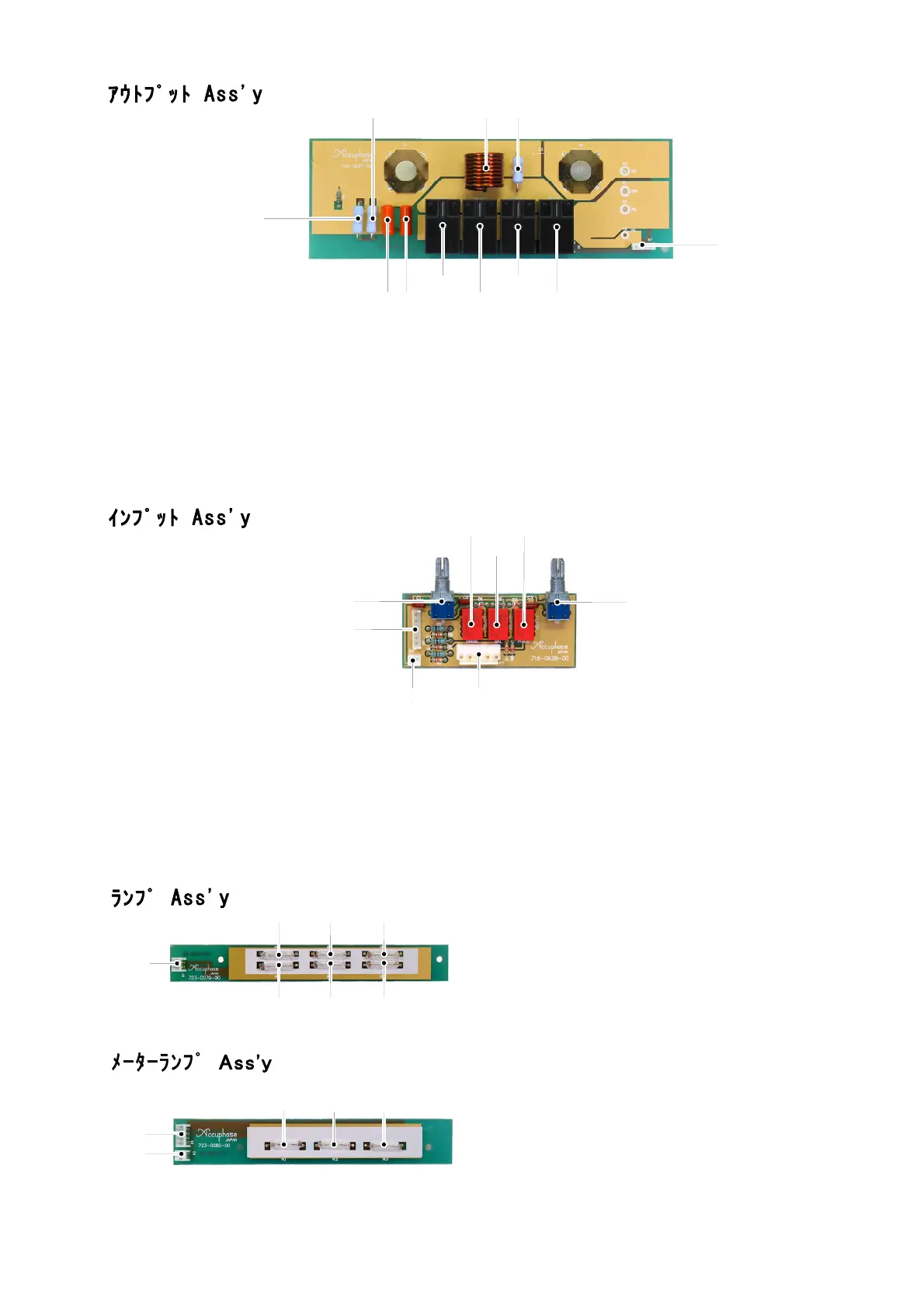

Accuphase M-8000 - Page06_716-0637,0638;723-0089

Output
A
ssembly (716-0637-00)
Input Assembly (716-0638-00)
Connector Purg K7 308-0408-00
ｺﾈｸﾀﾌﾟﾗｸﾞ
Tarminal K5,6 314-0523-04
端子
Relay RELAY1,2,3,4 362-2230-00
ﾘﾚｨ
Choke Coil L1,2 506-0007-00
ﾁｮｰｸｺｲﾙ
－６－
Connector Plug K1 308-0616-00
ｺﾈｸﾀﾌﾟﾗｸﾞ K2 308-0206-00
K3 308-0526-00
Rotary Switch S1,2 336-2005-00
ﾛｰﾀﾘｰｽｲｯﾁ
Relay RELAY1,2,3 362-1202-00
ﾘﾚｨ
Diode D1 1SR139-400
ﾀﾞｲｵｰﾄﾞ
Polypropylen Capacitor C1,2 CQ922N2D473KAPHF 0.047uF/200V
ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝｺﾝﾃﾞﾝｻ
Oxide Metal Film Resistor R1 RS143FA100JS-P 10Ω 2W
金属酸化物被膜抵抗器 R2,3 RS143FA200JS-P 20Ω 3W
Carbon Film Resistor R4 RD142EA203JF 20kΩ 1/4W
炭素皮膜抵抗器
Polyester Capacitor C1,2,3 CQ922M1H103J-B 0.01uF/50V
ﾎﾟﾘｴｽﾃﾙｺﾝﾃﾞﾝｻ
Diode D1,2,3 MA165
ﾀﾞｲｵｰﾄﾞ
Carbon Film Resistor R1,2,3 RD142HA101JFS 100Ω 1/6W
炭素被膜抵抗器 R4～8 RD142CA274J 270kΩ 1/6W
C2
RELAY2
R3
C1
K7
S2
S1
K2
K3
K1
RELAY1 RELAY3
RELAY2
RELAY1
RELAY3
RELAY4
L1
R2
R1
Lamp Assembly (723-0079-00)
PL1
K1
PL3
PL5
PL6
PL4
PL2
PC Board 115-1433-00
PCﾎﾞｰﾄﾞ
Pilot Lamp PL1,2,3,4,5,6 176-4501-10
ﾊﾟｲﾛｯﾄﾗﾝﾌﾟ
Connector Plug K1 308-0213-00
ｺﾈｸﾀﾌﾟﾗｸﾞ
Meter Lamp Assembly (723-0080-00)
PL1
PL2
PL3
K1
K2
PC Board 115-1434-00
PCﾎﾞｰﾄﾞ
Pilot Lamp PL1,2,3 176-7501-00
ﾊﾟｲﾛｯﾄﾗﾝﾌﾟ
Connector Plug K1 308-0413-00
ｺﾈｸﾀﾌﾟﾗｸﾞ K2 308-0209-00
