Accurex XRRS User Manual

3
Fire Ready Hood
Example: XRRS-30-F-D-N
Accurex RRS, 30 inches long, with front fan discharge,
with dual element disconnect, NFPA 101 Compliant
XRRS - 30 - F - E - D - N
Type
Residential
Range
Suppression
Length
30 inches
36 inches
Ventilation
F - Integral Fan - Front Recirculation
R - Integral Fan - Rear Discharge
T - External Fan - Top Discharge
External Fan Type
D - Inlet Duct
W - Wall Mount
NFPA 101 Compliance
X - Noncompliant
N - Compliant
Range Disconnect Type
E - Electric
G - Gas
D - Dual (gas and electric)
Model Number Code
Parts Checklist
Hood
Back support mounting bracket
External fan (Inline / Wall Mount / None)
• 25 ft. plenum rated wire for plug and play
connection
8 ft. of metal clad wire for hood power connection
(marked with red tape)
Gas disconnect valve (optional)
• 6 ft. shielded control wire for plug and play
connection
Electrical disconnect box (optional)
• 6 ft. shielded control wire for plug and play
connection
8 ft. of metal clad wire for gas disconnect/electrical
disconnect connection (marked with black tape)
Remote switches, ADA (optional)
Manual Pull Kit (optional) consisting of the following:
• Pull Box (1)
• Pull Face (1)
• Elbow Pulley (3)
• 25 ft. Cable and Pin
The ClockBox (optional)
• 20 ft. shielded control wire for plug and play
connection

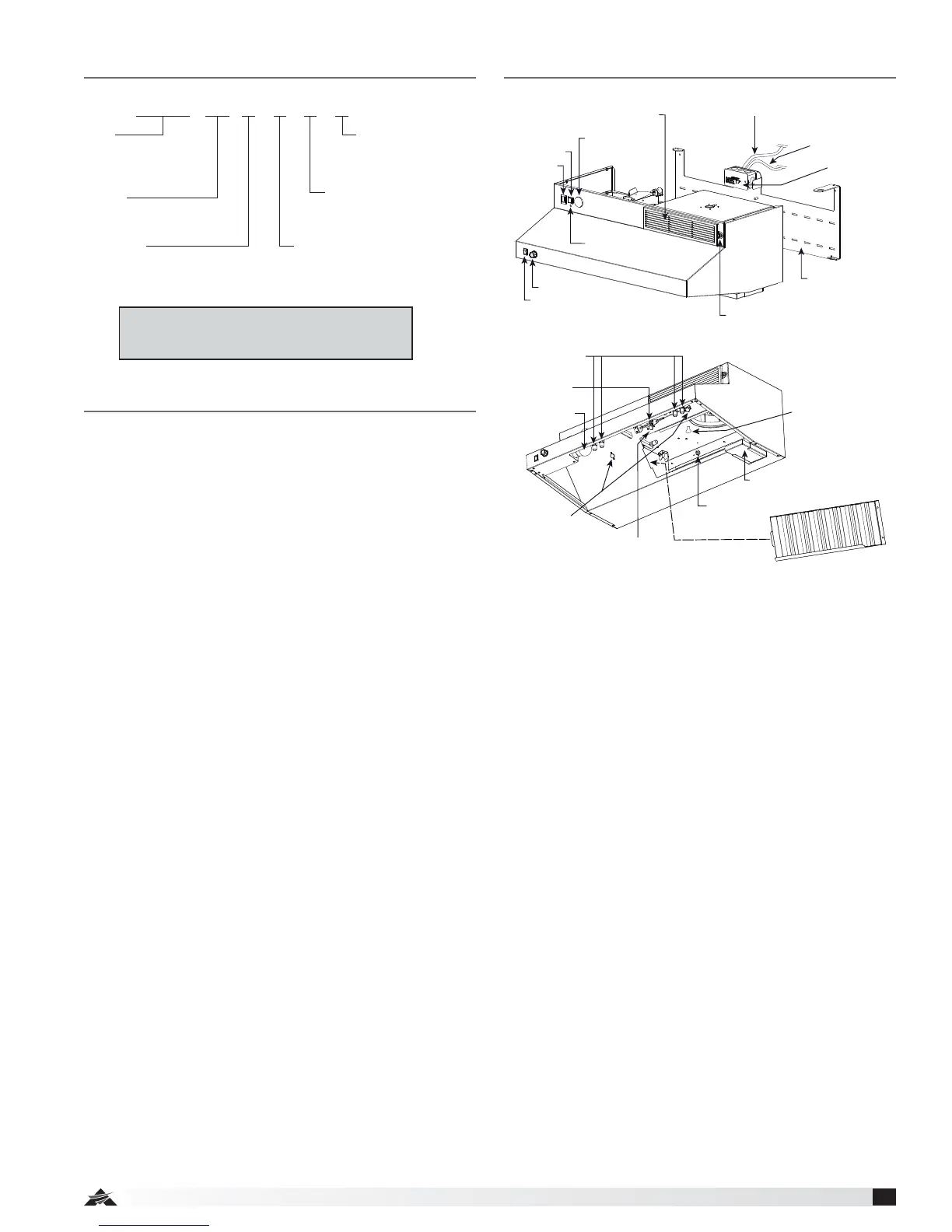

Exploded View
Recirculating Vent
(recirculating model)
Power Switch
Reset Switch
Electrical Disconnect
(Black Tape)
Thumbscrew to remove vent
on some models
Thumbscrews (2x)
(inline models)
Discharge Nozzles
with protective caps
Light Bulb
Fusible Link
Low Temperature
Switches
High Temperature
Switch
Thumb Nut (3x)
Grease Tray
Grease Filter
Extinguisher
Pressure Gauge
110 VAC Power Supply
(Red Tape)
Junction Box
Back Support
Mounting Bracket
Fan Speed Knob
Light Switch
LED Status Light
