Accurex XXDW User Manual

15
1. After the hood is hung in position, slide the flat flange of the backsplash panel behind the back of
the hood.
Note: If the backsplash panel length is greater than 46 in. (116.84 cm), it will be shipped in multiple
pieces.
2. After the backsplash panel has been positioned, drill holes in the panel and fasten to the wall.
(fasteners provided by others).
Note: The holes should be spaced to adequately secure the panel to the wall.
3. Caulk the joints between the hood and the backsplash panel with NSF Approved silicone caulk
(GE SCS1009, or its equivalent). The caulk is not provided.
4. Caulk the joint between the backsplash panels when multiple panels are required, with NSF
Approved silicone caulk (GE SCS1009, or its equivalent). The caulk is not provided.
H
O
LE
S
S
H
OU
LD BE
S
PA
C
ED T
O
A
DE
Q
UATELY SECURE THE PANE
L
TO THE WALL STUDS
(
HOLE SPACIN
G
A
ND FASTENERS PROVIDED BY OTHERS
)
BA
C
K
S
PLA
S
H PANE
L
HOOD END PANEL
L
H
OO
D FR
O
NT PANE
L
S
LIDE FLAN
GE
BEHIND BA
CK
O
F THE H
OOD
S
E
C
TI
O
N VIE
W
O
F BA
C
K
S
PLA
SH
PANEL
O
VERLA
P

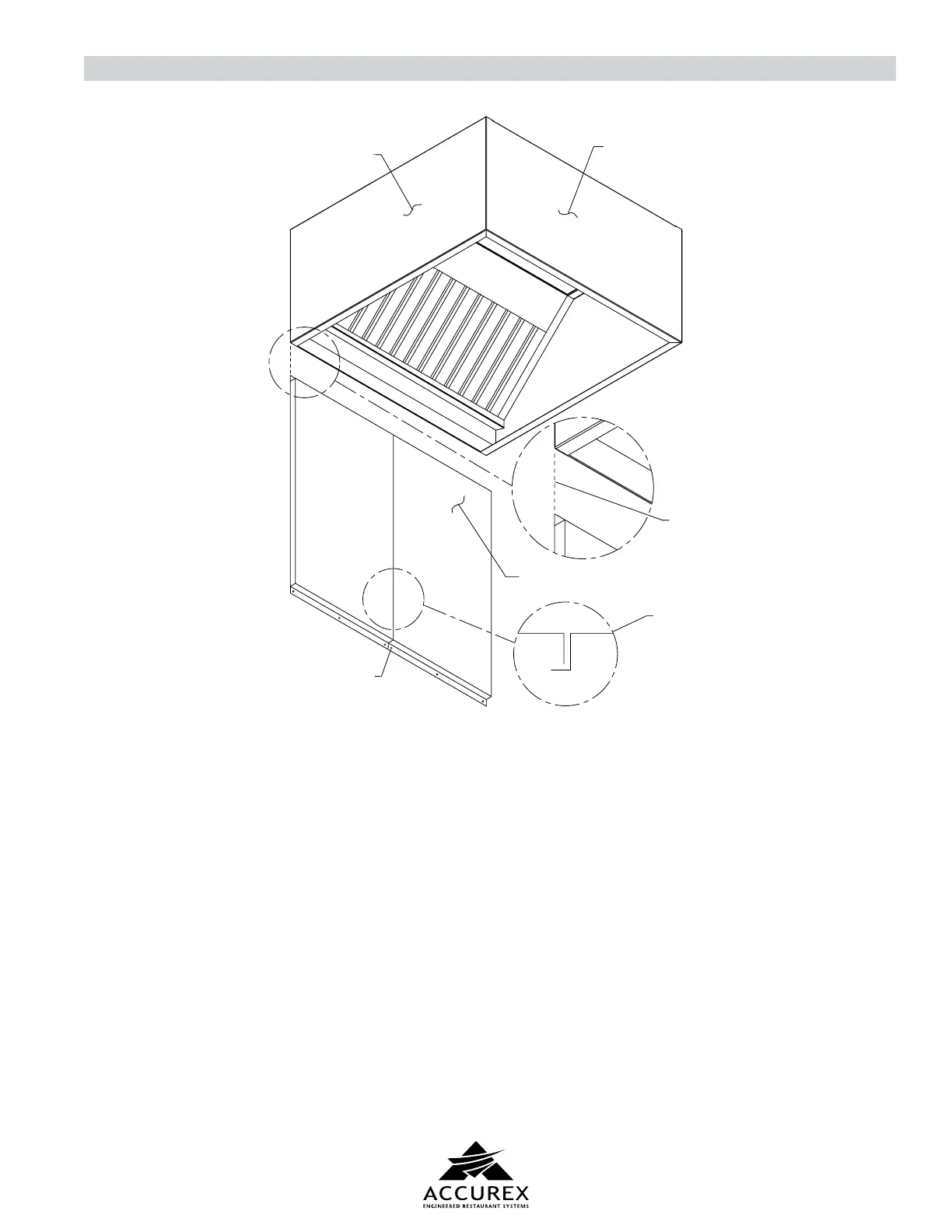

Fig. 23
Installing Backsplash Panels
