Accurex XXDW User Manual

14

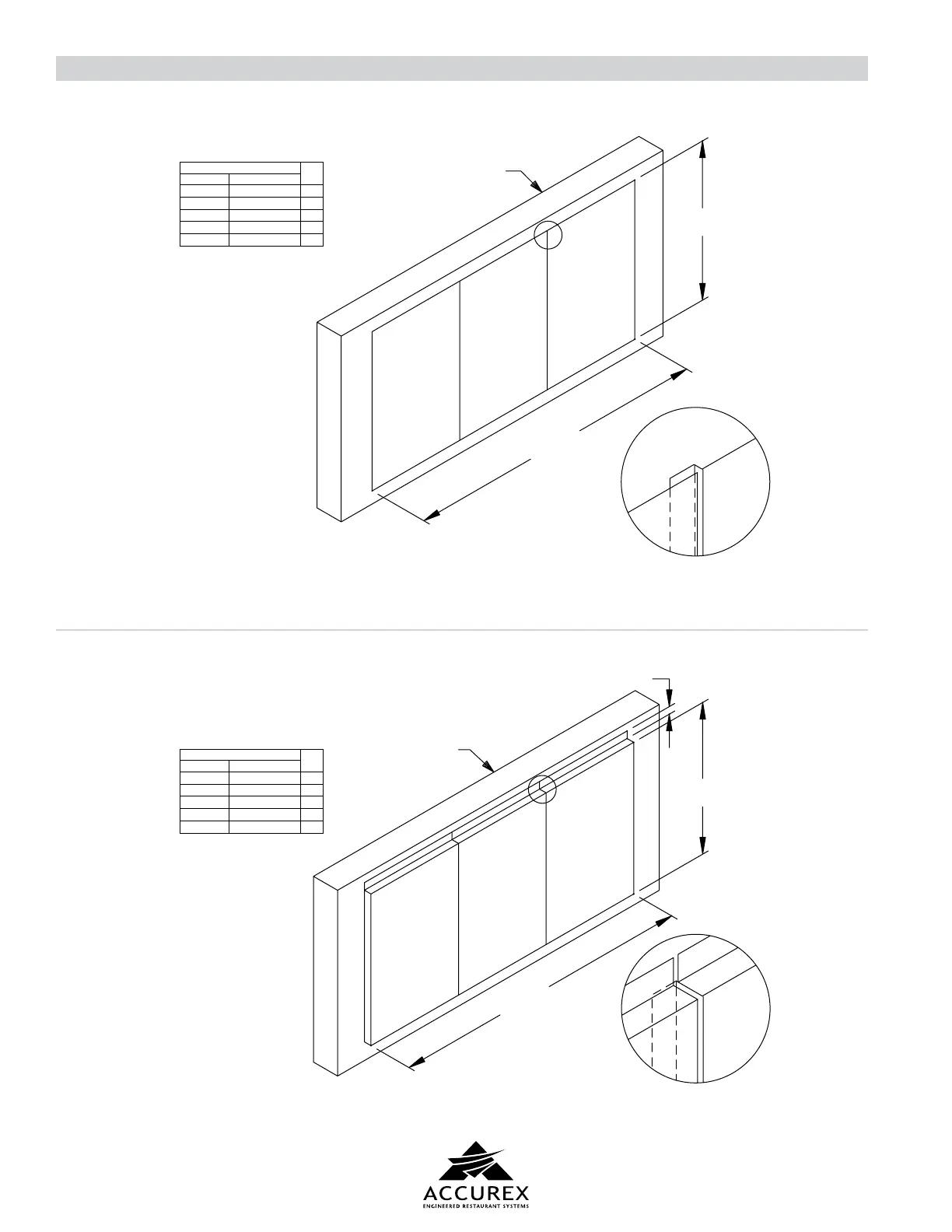

Fig. 21
Installing Backsplash Panels
MATERIAL GAUGE — STAINLESS
MATERIAL GAUGE — STAINLESS
INSULATION — 1 IN. (25.4 MM)
FLAT BACKSPLASH PANEL
INSULATED BACKSPLASH PANEL
WALL
WALL
NOTE: PANELS UP TO 46 IN. (1168.4 MM) WIDE SHIP IN ONE PIECE; OVER 46 IN. (1168.4 MM) IN MULTIPLE PIECES.
NOTE: PANELS UP TO 48 IN. (1219.2 MM) WIDE SHIP IN ONE PIECE; OVER 48 IN. (1219.2 MM) IN MULTIPLE PIECES.
LENGTH
1 IN. (25.4 MM)
HEIGHT
LENGTH
HEIGHT
LENGTH
QTY
Inches Millimeters
<= 48 <= 1219.2 1
>48<=94 >1219.2<=2387.6 2
>94<=141 >2387.6<=3581.4 3
>141<=188 >3581.4<=4775.2 4
>188<=235 >4775.2<=5969 5
LENGTH
QTY
Inches Millimeters
<= 46 <= 1168.4 1
>46<=91 >1168.4<=2311.4 2
>91<=136 >2311.4<=3454.4 3
>136<=181 >3454.4<=4597.4 4
>181<=226 >4597.4<=5740.4 5
Fig. 22
