ACE095 Page 12 of 17 Rev Date: 12.7.2021
6. Power Supply Module

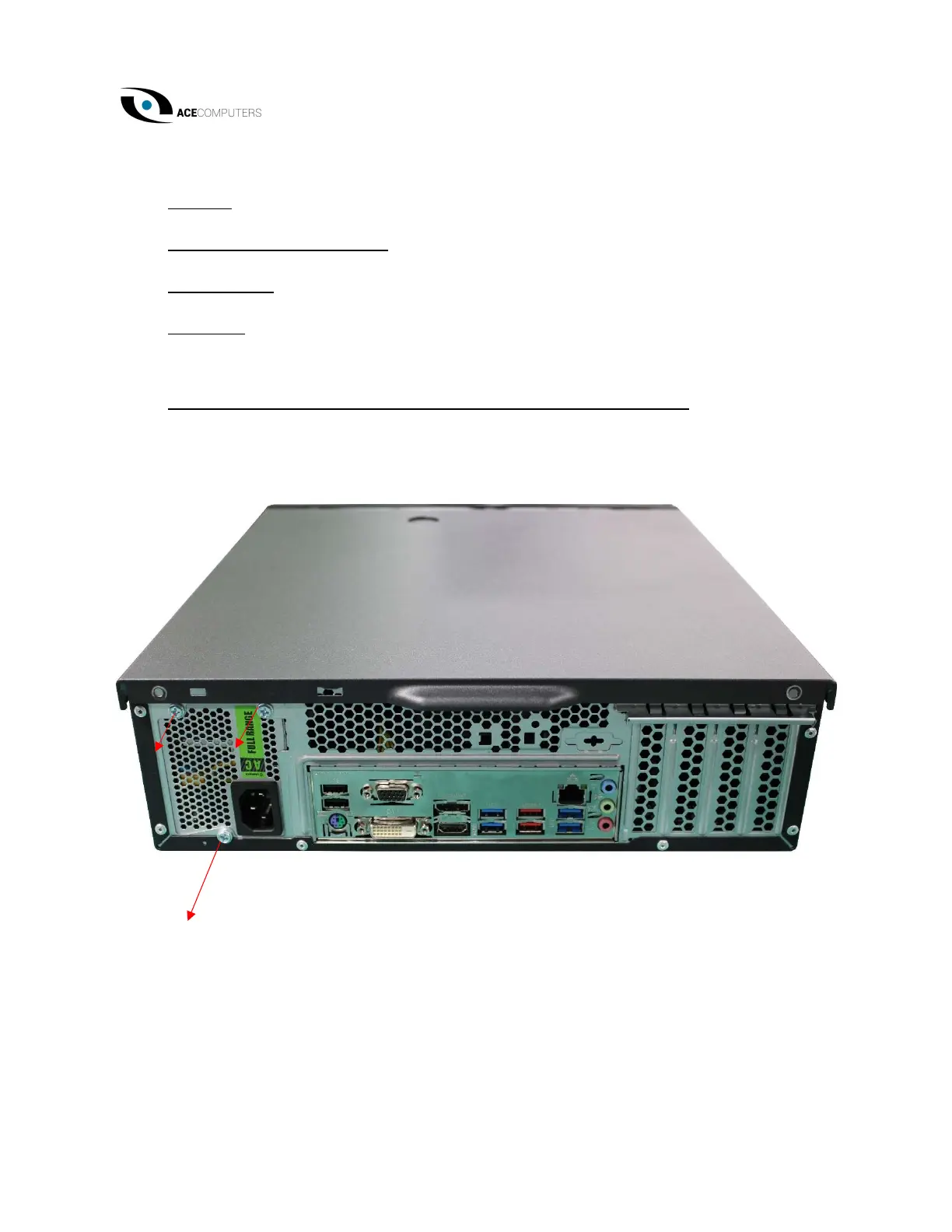

Location: The power supply module is located in the back left hand corner.
Type and number of fastenings: Three (3) Phillips Screws per module.
Tools required: Screw Driver.
Procedure: Unplug the power cord from the power supply. To remove the power supply,
remove the three exterior Phillips screws. Remove the top cover, disconnect all cables from the
rear of the power supply and slide backward the unit from the case.
Selective Treatment/Special Handling Per Annex VII, Directive 2012/19/EU: Any printed circuit
boards within the power supply module must be removed separately from the power supply
module and shall be disposed or recovered in compliance with Directive 2008/98/EC.
