Machine Maintenance Procedures 3-21
4. Disconnect DC-in cable from mainboard connector (E) (Figure 3-17).
5. Disconnect powerboard cable from mainboard connector (G) (Figure 3-18).
6. Disconnect speaker cable from mainboard connector (H) (Figure 3-18).

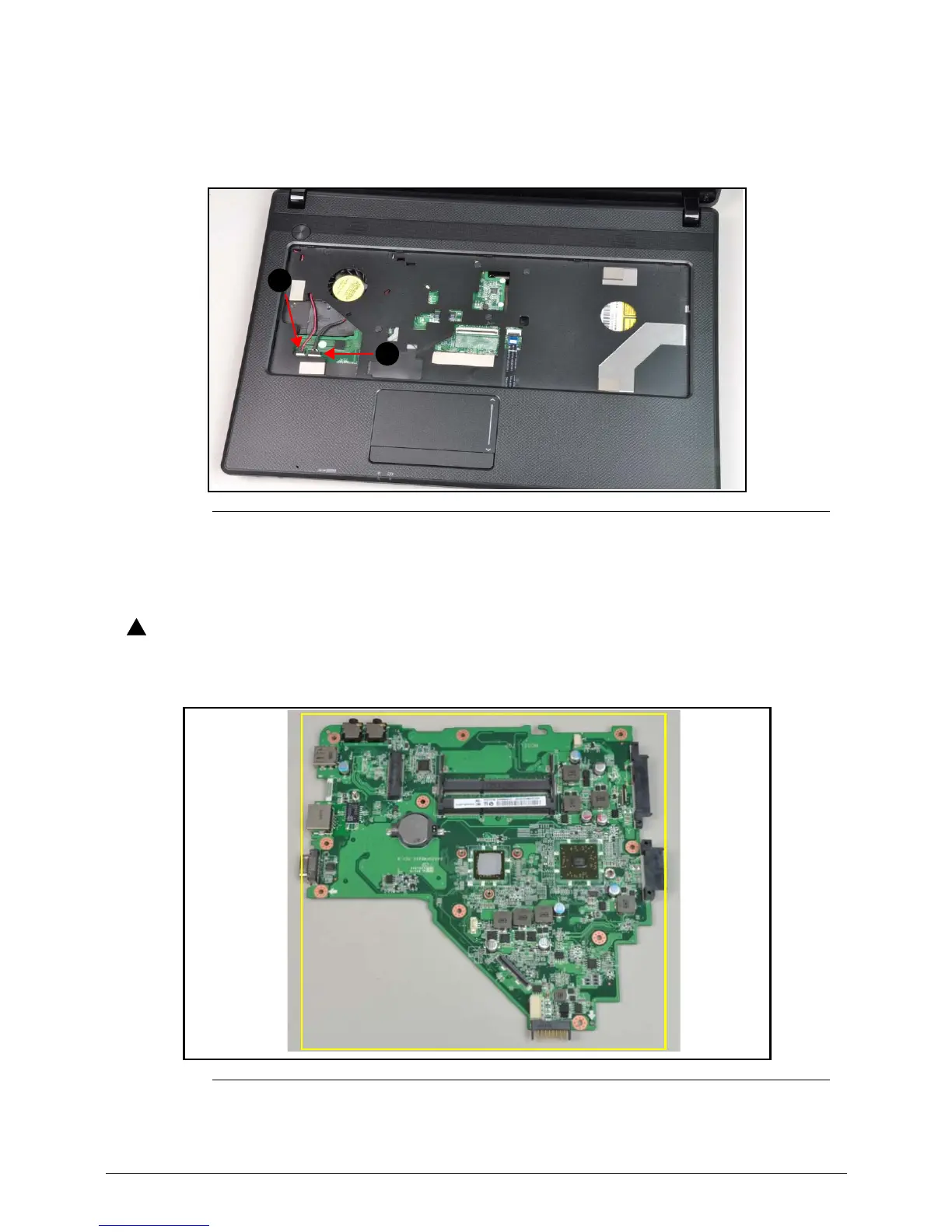

Figure 3-18. Mainboard Connector Location
7. Remove two (2) screws (F) securing the mainboard in place (Figure 3-17).
8. Remove Mainboard by lifting it from Base Assembly.
Make sure all cables are moved away from the device to avoid damage
during removal.
Figure 3-19. Mainboard
