Acer Aspire 4250 - DC-in Jack Procedures

3-34 Machine Maintenance Procedures
DC-in Jack Removal 0
Prerequisite:
LCD (Liquid Crystal Display) Module Removal
1. Find DC-in Jack Module (A) on Top Assembly. Refer to Figure 3-30.
2. Remove DC-in cable from cable guides on the top assembly (Figure 3-30).
3. Remove one (1) screw (B) from top assembly (Figure 3-30).
4. Remove DC-in Jack Module (A) from top assembly.

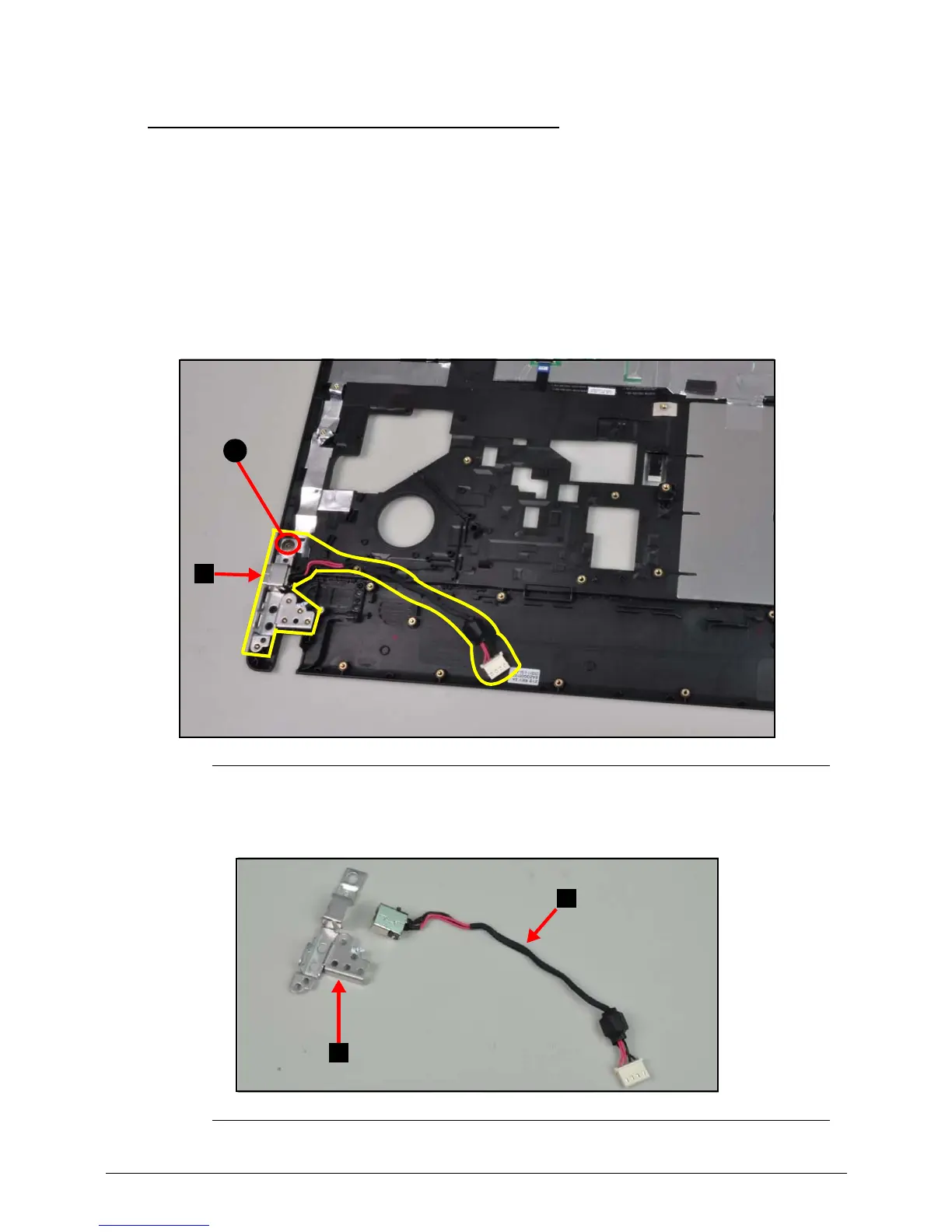

Figure 3-30. DC-in Jack Module
5. Remove DC-in Jack (C) from DC-in bracket (D) (Figure 3-31).
Figure 3-31. DC-in Jack
A
B
C
D
