5-4 Jumper and Connector Locations

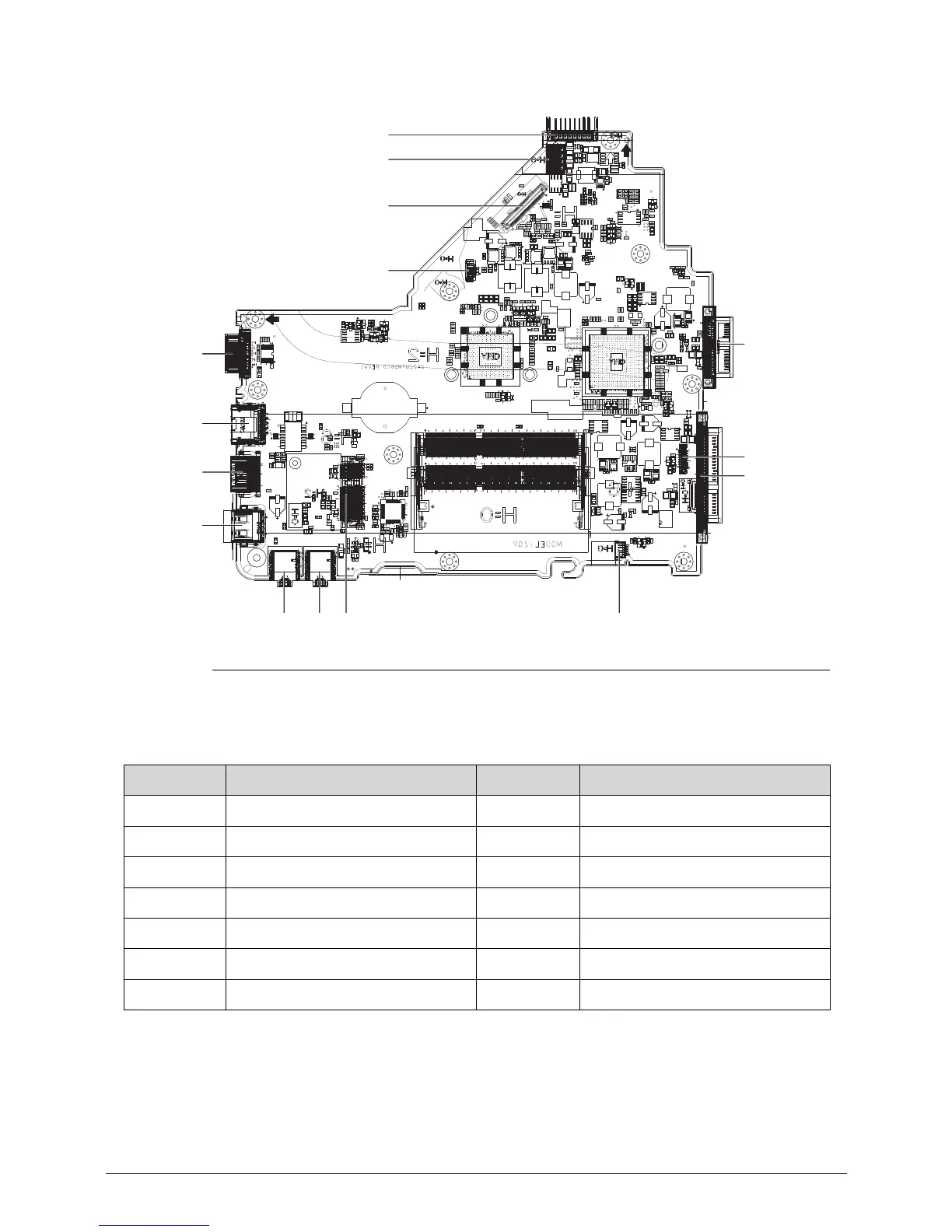

Figure 5-2. Mainboard Bottom
Table 5-2. Mainboard Bottom
Item Description Item Description
1 Battery Connector 8 USB Connector
2 DC-IN Connector 9 ODD Connector
3 LVDS Connector 10 USB board Connector
4 Fan Connector 11 HDD Connector
5 VGA Connector 12 Microphone Connector
6 RJ-45 Connector 13 Headphone Connector
7 HDMI Connector 14 Bluetooth Connector
12 13 1514
9
10
11
5
6
7
8
1
2
3
4
