WLAN Antenna Removal 0
Prerequisite:
LCD Panel Removal
1. Remove black (A) and white (B) WLAN antennas.

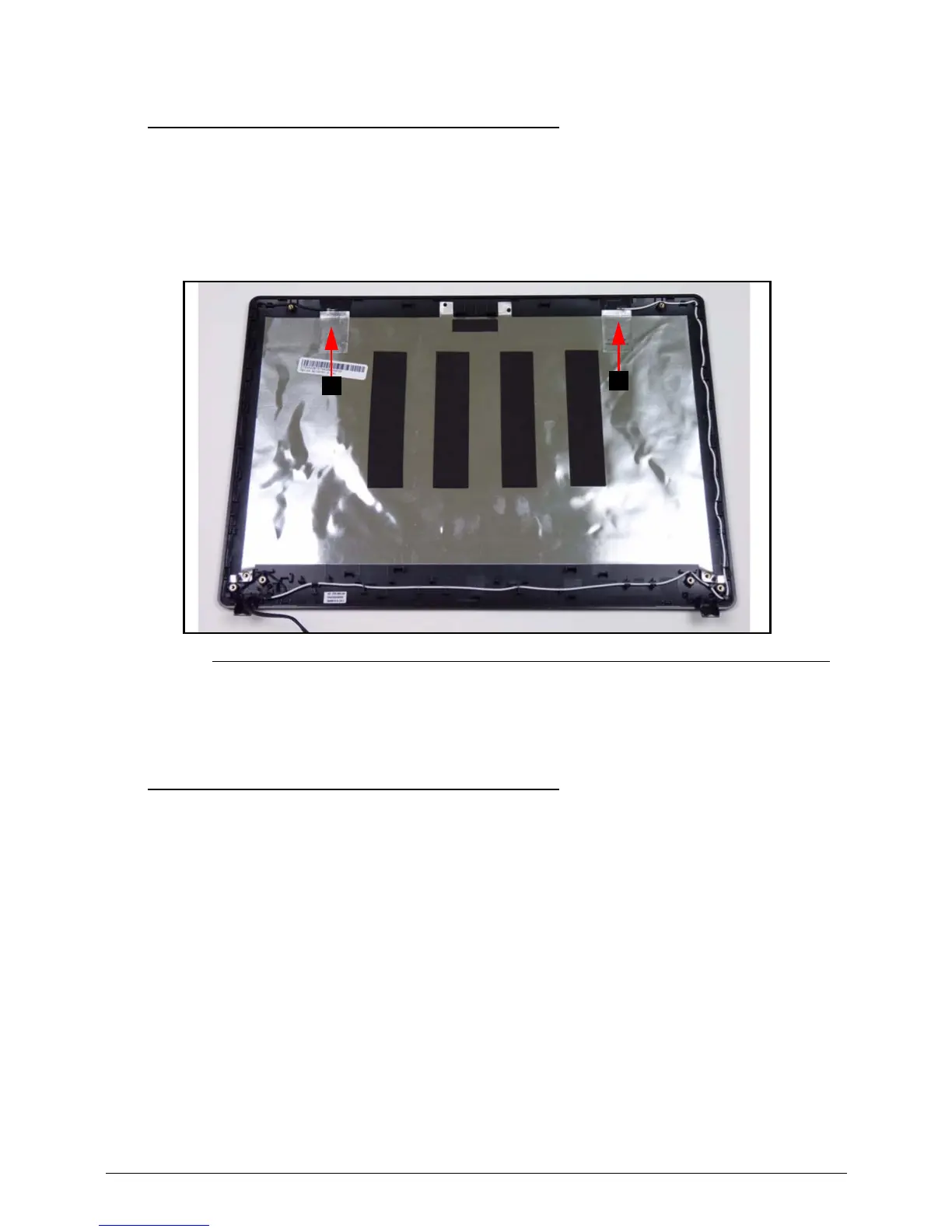

Figure 3-42. WLAN Antenna
2. Remove antenna cables from cable guides.
WLAN Antenna Installation 0
1. Put antenna cables into cable guides. Refer to Figure 3-42.
2. Put black (A) and white (B) antennas onto LCD cover. Refer to Figure 3-42.
3. Install LCD panel.
A
B
