Acer ASPIRE 4253 - Exploded Diagrams

6-4 FRU (Field Replaceable Unit) List
Exploded Diagrams 0

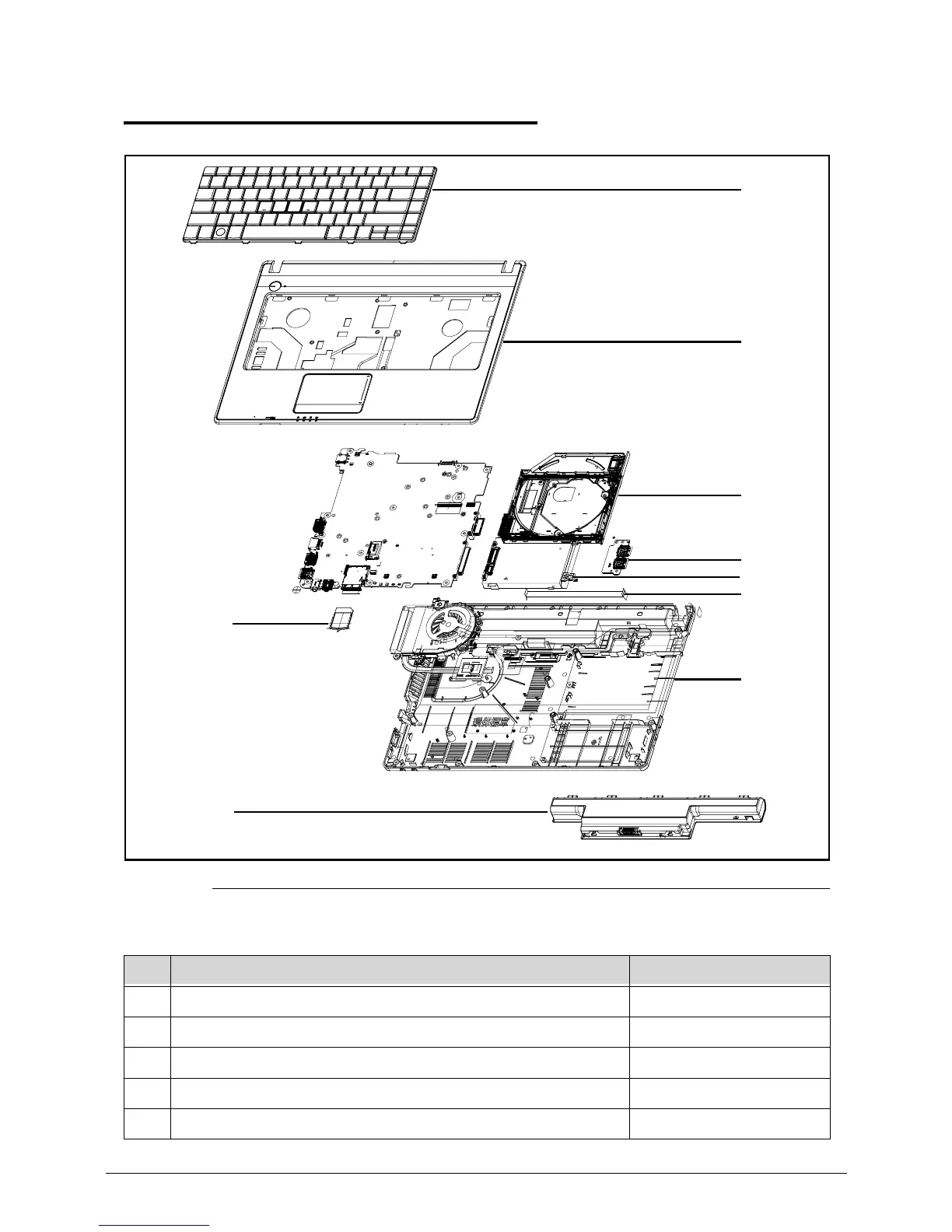

Figure 6-1. Upper & Lower Cover Exploded Diagram
Table 6-1. Upper & Lower Cover Exploded Diagram
No. Description Acer Part No.
1 Keyboard KB.I140A.204
2 Upper Case 60.R6Z07.001
3 ODD Module 6M.RDX07.001
4 USB Board 55.R6Z07.001
5 HDD Module KH.16001.045
1
2
3
4
5
6
7
9
8
