3-58 Machine Maintenance
Main Unit Reassembly Process 0
Replacing the LCD Module 0

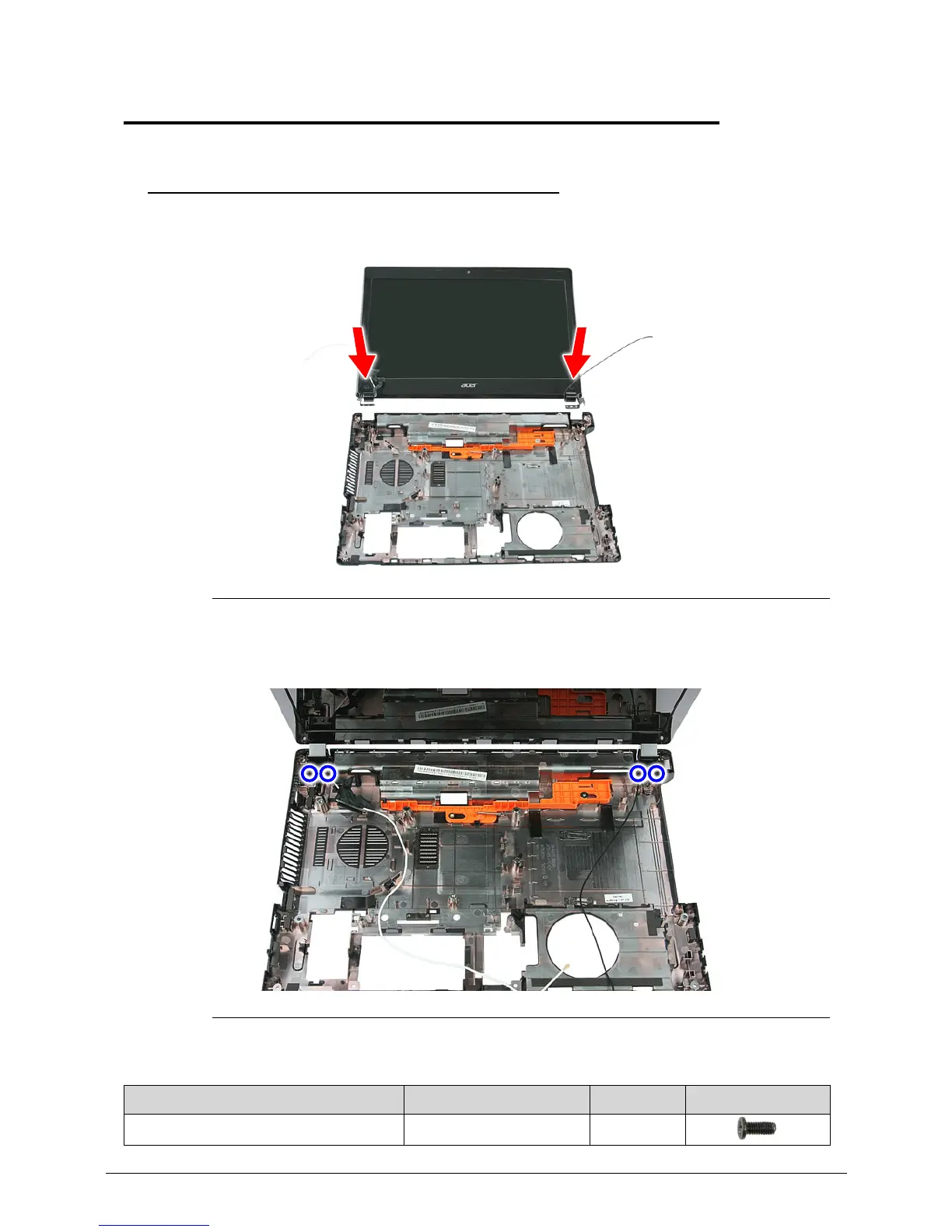

1. Position the LCD module on the lower case.
Figure 3-85. LCD Module
2. Secure the LCD module to the lower case using four screws.
Figure 3-86. LCD Module Hinge Screws
Table 3-86. Screws
Step Screw Quantity Screw Type
LCD Module Reassembly M2 × L3 4
