3-62 Machine Maintenance

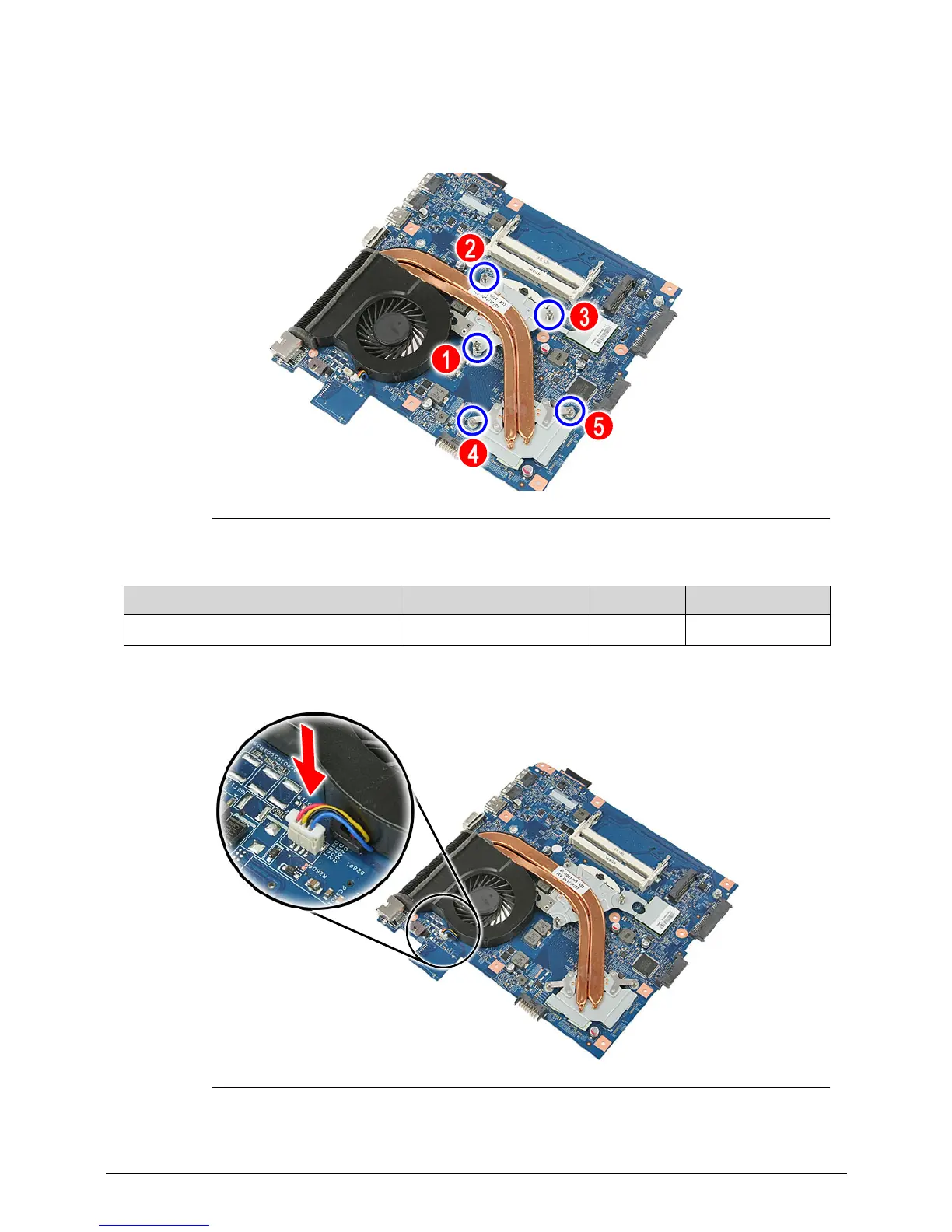

4. Tighten the five (5) spring-loaded captive screws to secure thermal module in place.
Follow the sequence of the number beside each screw when securing the thermal
module.
Figure 3-92. Thermal Module Screws
5. Connect the fan cable to the mainboard.
Figure 3-93. Fan Cable
Table 3-92. Screws
Step Screw Quantity Screw Type
Thermal Module Reassembly – 5 –
