Acer Aspire 4743Z - Removing the Power Button Board

Machine Maintenance 3-31
Removing the Power Button Board 0
1. Refer to Removing the Palmrest Module/Upper Cover.

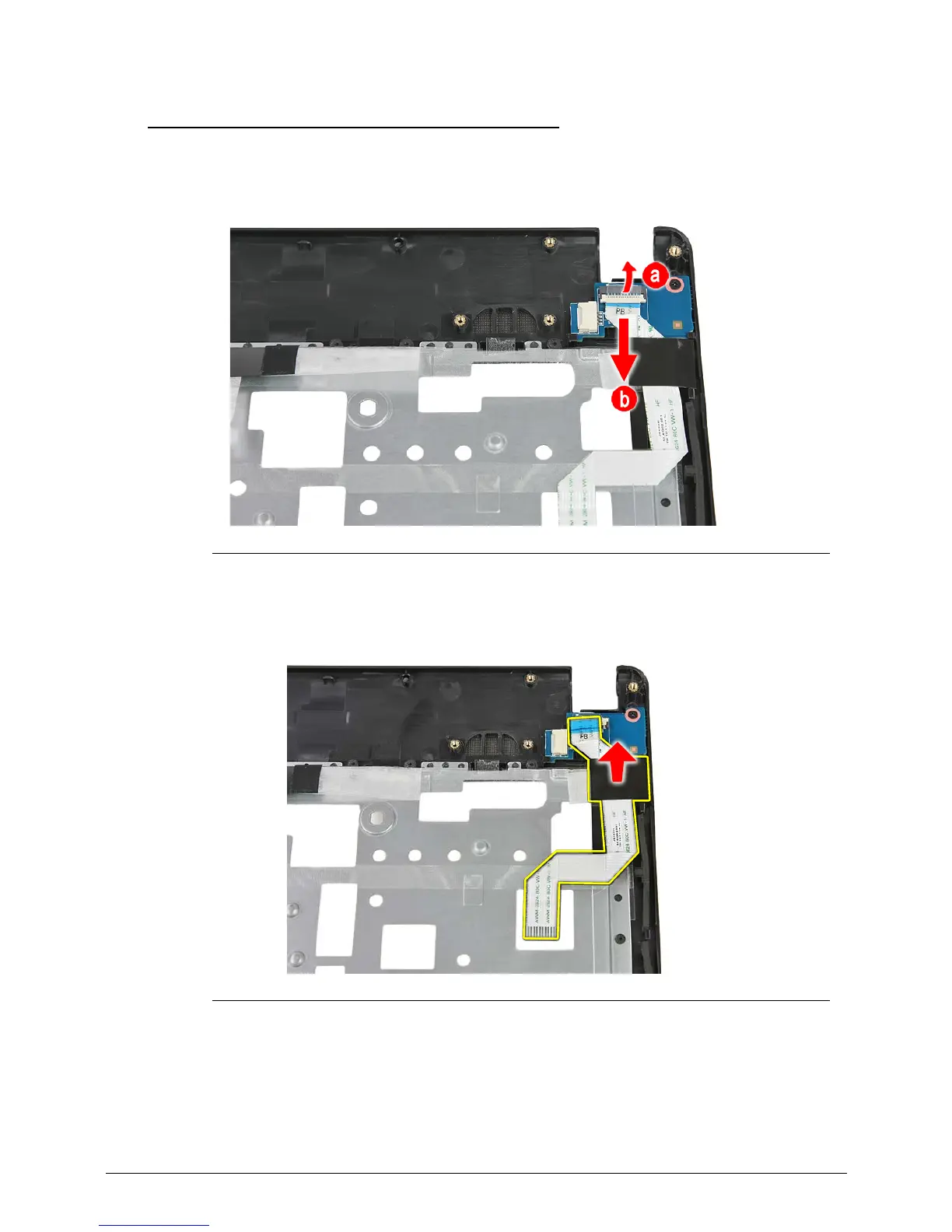

2. Open the connector latch, then remove the power button cable.
Figure 3-41. Power Button Cable
3. Detach the mylar tape from the power button cable, and remove the power button cable
from the upper cover.
Figure 3-42. Power Button Cable
