Machine Maintenance 3-19
Removing the ODD Module 0
1. Refer to Removing the Base Door.
2. Remove the screw securing the ODD module.

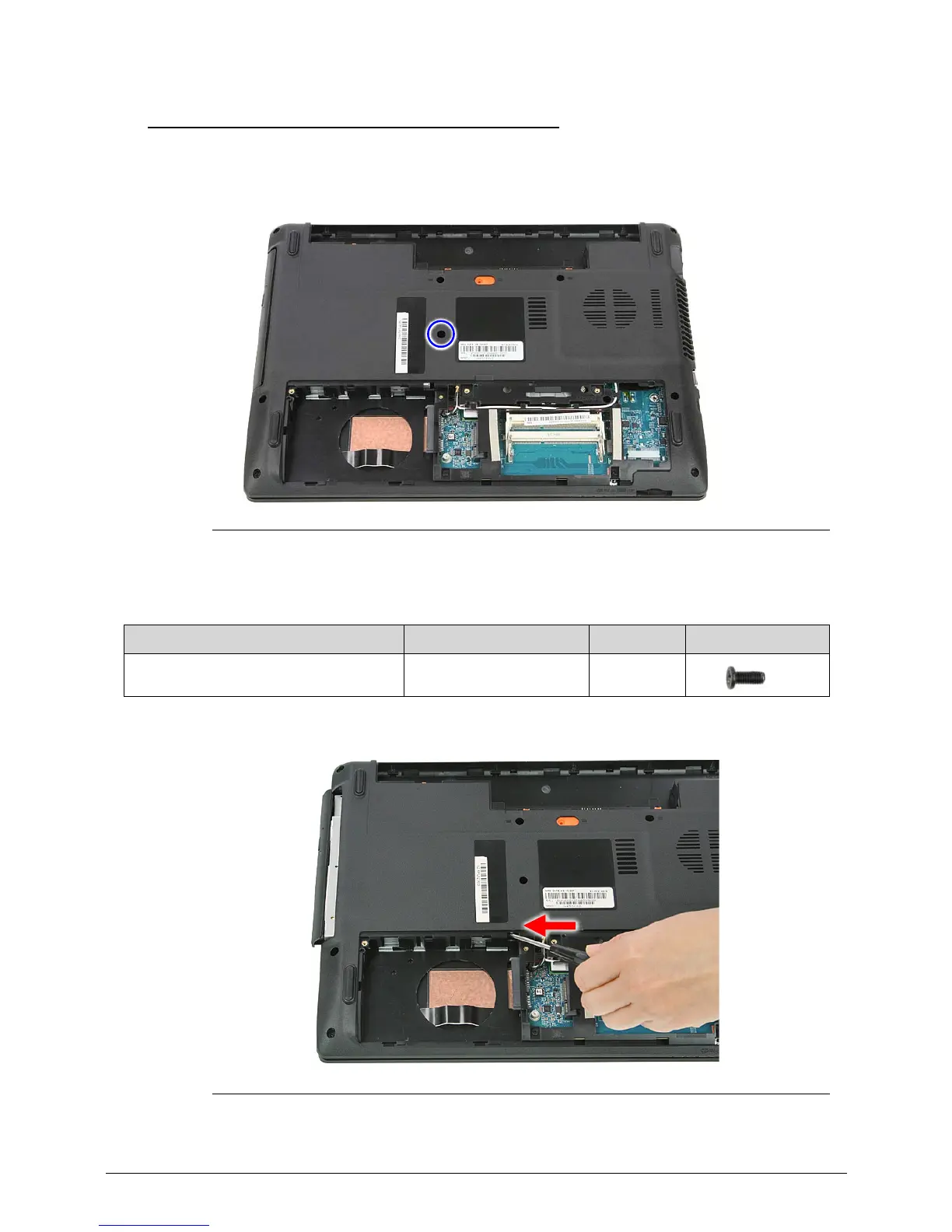

Figure 3-20. ODD Module
3. Use the non-marring plastic scribe to push the ODD out of the drive bay.
Figure 3-21. ODD Module
Table 3-7. Screw
Step Screw Quantity Screw Type
ODD Module Disassembly M2.5 x L6 1
To Next Page
