5
English

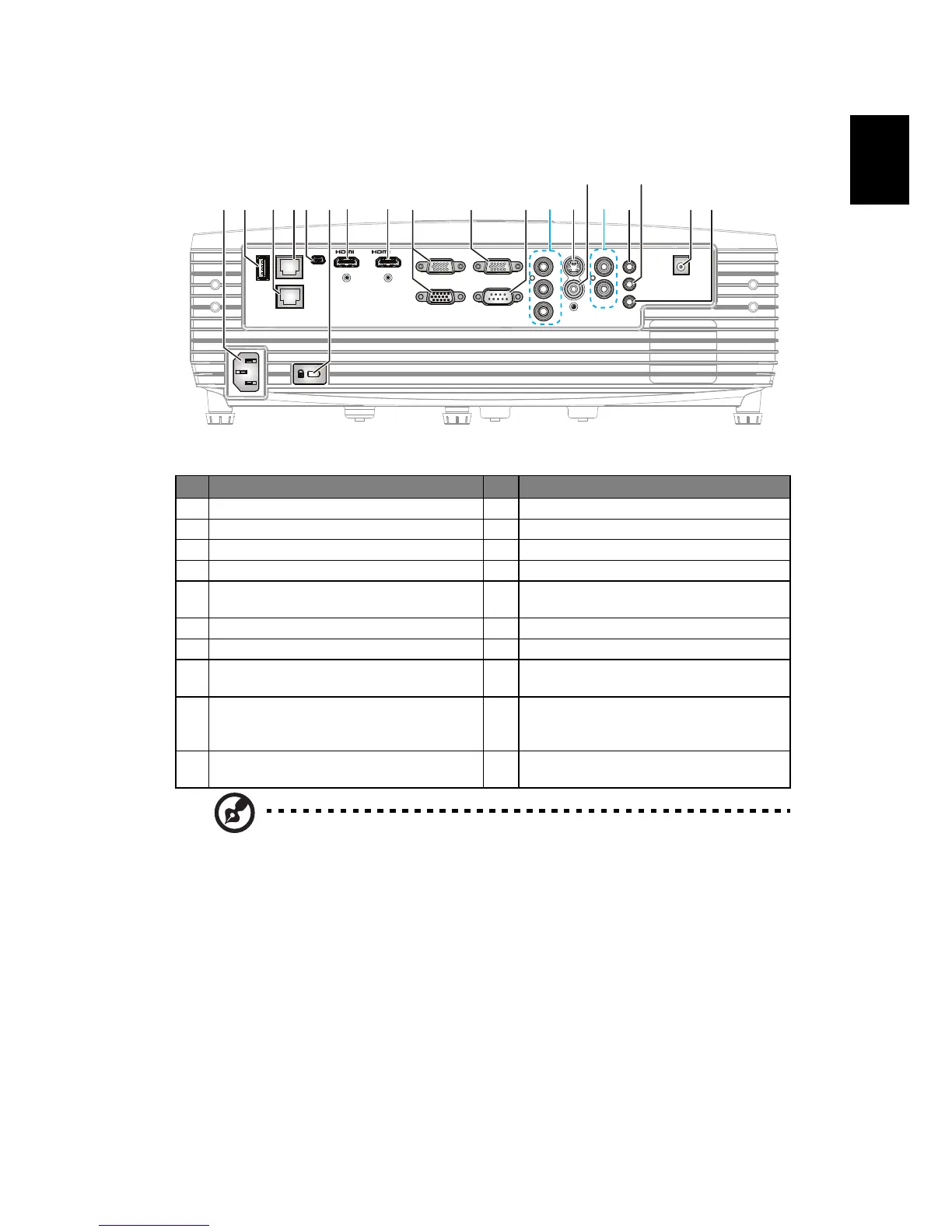

Right / Rear side
Note: Functions vary depending on model definition.
# Description # Description
1 Power socket 11 RS232 connector
2 5V DC output connector 12 YPbPr/YCbCr input connector
3 HD BaseT 13 S-Video input connector
4 LAN (RJ45 Port for 10/100M Ethernet) 14 Composite video input connector
5 Mini USB Ctrl connector (for firmware
upgrade and USB display)
15
Audio in connector (RCA)
6 Kensington™ lock port 16 Audio in connector
7 HDMI 2 connector 17 Audio out connector
8 HDMI/MHL connector (HDMI/MHL,
HDMI 1/MHL)
18 12V DC output connector
9 PC analog signal/HDTV/component
video input connector (VGA, VGA IN,
VGA IN 1, VGA IN 2)
19 3.5mm Microphone Input
10 Monitor loop-through output
connector (for VGA IN 1 only)
HDBaseT
1/MHL
DC 5V OUT LAN Min-USB
VGA IN 1 VGA OUT
2
Y
S-VIDEO
VIDEO
AUDIO IN L
AUDIO IN
MIC-IN
AUDIO OUT
AUDIO IN R
Pr/Cr
Pb/Cb
RS232
VGA IN 2
12V DC
4 13 16
2 3 116
17
18
19
14
9 101 5 87 12 15
