Acer PM161Q User Manual

6
Installation

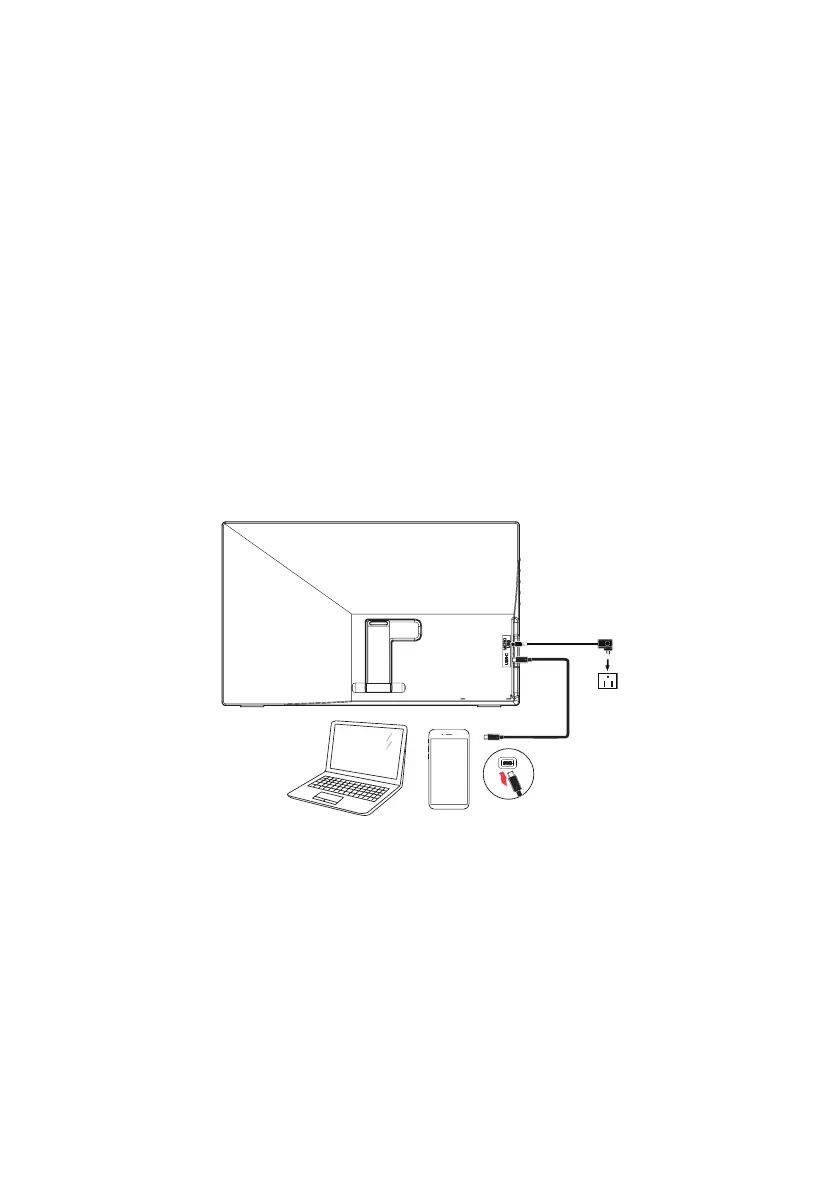

To install the monitor on your host system, please follow the steps below:
Steps
Connect the monitor to your computer
1. Connect the signal transmission cable (Thunderbolt 3 (USB-C) cable) to the monitor’s Type-C jack
and the Type-C output jack of the computer’s display card.
2. The monitor does not require an external power supply via its micro USB port when it is connected
to the computer; it only requires a single signal transmission cable (the Thunderbolt3 (USB-C)
cable).
Connect the screen to your phone
1. Connect the signal transmission cable to the Type-C jack of the monitor and the Type-C output
jack on your phone.
2. Some underpowered phones require an external power supply via the monitor’s micro USB port
when in use.

Acer PM161Q Specifications

General

3D	-
Screen shape	Flat
Response time	15 ms
Display diagonal	15.6 \
Display technology	LED
Native aspect ratio	16:9
Maximum refresh rate	60 Hz
Contrast ratio (dynamic)	100000000:1
Contrast ratio (typical)	800:1
Display number of colors	262000 colors
Viewing angle, horizontal	170 °
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	1920 x 1080 (HD 1080)
Tilt angle range	15 - 35 °
Energy efficiency scale	A to G
Power consumption (standby)	- W
Power consumption (typical)	12 W
Product color	Black
Cables included	AC, Micro-USB, USB
VGA (D-Sub) ports quantity	0
USB Type-C downstream ports quantity	1

Weight and Dimensions

Width (with stand)	375 mm
Height (with stand)	233 mm
Weight (with stand)	952 g
Depth (without stand)	20 mm
Width (without stand)	376 mm
Height (without stand)	234 mm
Weight (without stand)	771 g
