Acer V223HQ

- 32 -
Disassembly SOP about V223HQ
Preparation before disassemble
1.Clean the room for disassemble
2.Identify the area for monitor
3.Check the position that the monitors be placed and the quantity of the monitor ;prepare the area for material flow;
according to the actual condition plan the disassemble layout
4.Prepare the implement, equipments, materials as bellow:
1)Press-fixture
2)working table
3)Screw-driver
4)knife*1
5)glove
6)cleaning cloth
7)ESD protection
ite
m
Operation
Tool
Notes

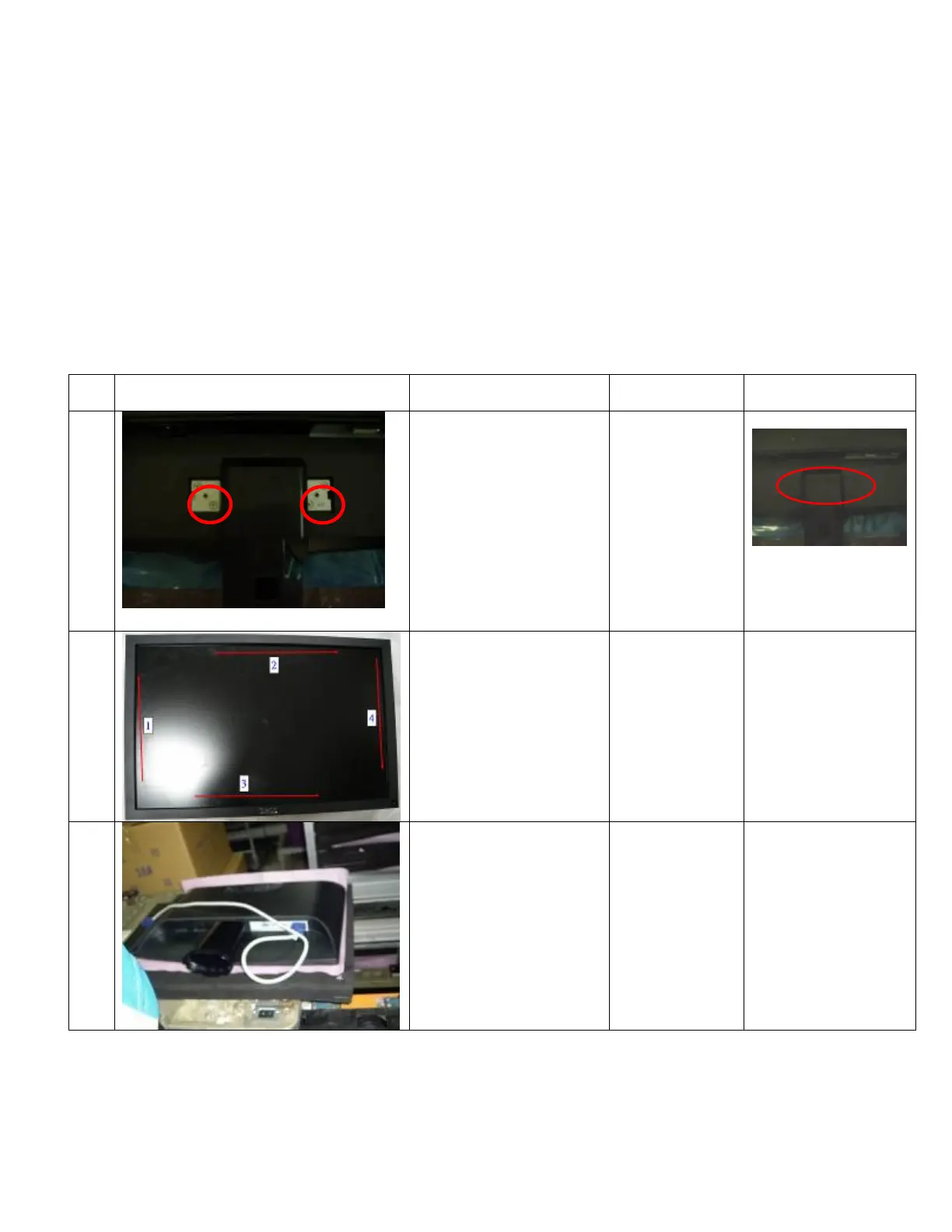

1
Disassemble the stand
 4 screws
Screw-driver
Kick the board first.
2
disassembly the bezel
from the monitor, notice
the disassembly order :
1.Left (1) parts of bezel
2.Top (2) parts of bezel
3.Bottom (3) parts of
bezel
4. Right (4) parts of bezel
Don’t draw the BZL
When disassembly
the bezel ,notice don’t
bend the C/B .man
must wear glove
The purpose is loose
the BZL
3
Turn over the
monitor ,dismantle the
Rear cover from the
monitor
