- 60 -
6.2 Circuit Operation Theory
I. Introduction:
V223HQ is a 21.5 inch and 24bits color TFT LCD monitor, which can support the resolution up to 1920x1080. It
has VGA input and compliant with VESA specification to offer a smart power management. The monitor has
DDC/CI function to make the monitor communicate with PC by Acer ADM DDC/CI software, and also it has
ACM function to let the monitor contrast ratio up to 50000:1. It also offers OSD Menu for users to control the
adjustable items and get some information about this monitor.
II. Block diagram
V223HQ consists of a main body and a stand (base). The main body contains a LGD/SEC TFT
LCD module with 4 CCFL lamps, a power board (includes AC/DC
、
DC/DC
、
inverter and
panel power source), a control board and an interface board. The block diagram is shown as
below.

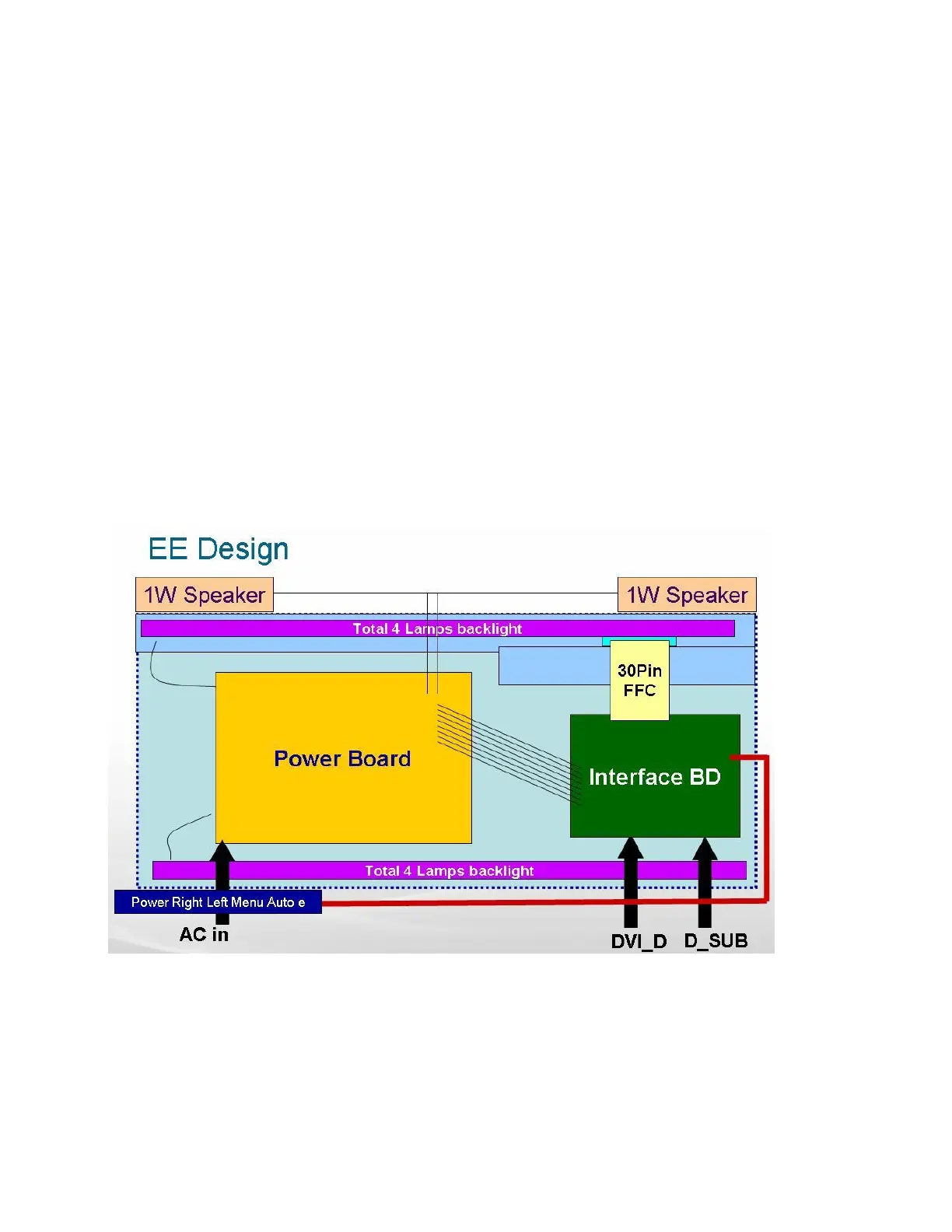

Fig. Block diagram for V223HQ LCD monitor
