- 67 -

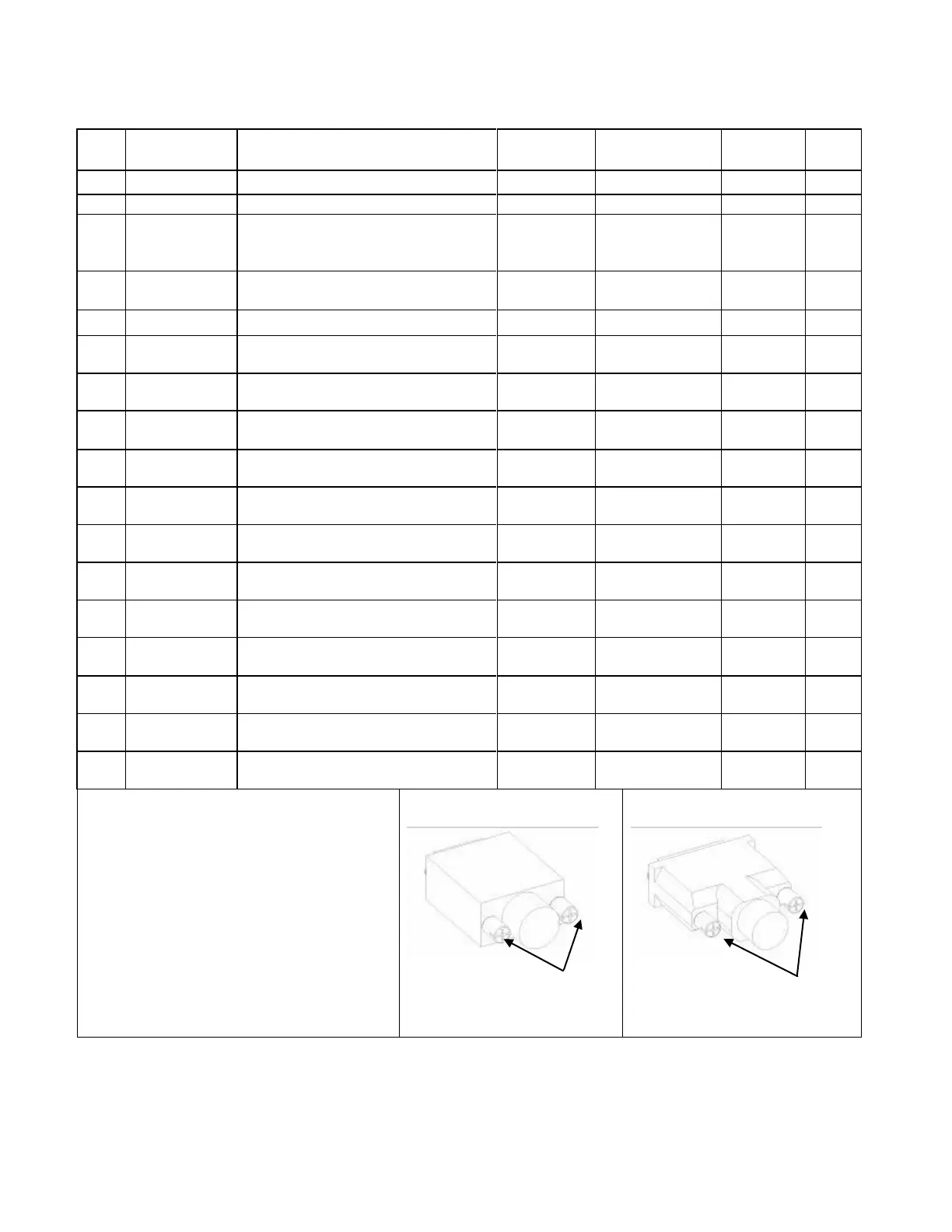

(B) SPECIAL SCREW TORQUE SPEC.
ITEM
P/N
DESCRIPTION
MOUNTING
MATERIAL
TORQUE
(KG-CM)
HOLE SIZE
(MM)
Screw
Head
1
8F.00274.8R0
SCREW FPH TAP M3*8L NI
Plastic
5.0±1.0
2.35±0.05
#2
2
8F.00003.143
SCRW TAP PAN #4-40*3/8
Aluminum
3.3±0.3
2.6±0.03
#2
3
8F.VG434.4R0
SCRW TAP PAN F/WSH M3*4L C-ZN
METAL
No thread
：
8
～
10
Have thread:6
～
8
Aluminum:4~5
2.68±0.03
#2
4
8F.1A356.100
SCRW MACH PAN M4*10L B-ZN NYLO
Metal
11.0±1.0
M4*0.7
#2
5
6K.L1G06.001
ASSY SCRW M4*12L L1740
METAL
11.0±1.0
M4*0.7
#2
6
8F.5A356.120
SCRW MACH FHM4*12L B-ZN NYL
METAL
11.0±1.0
M4*0.7
#2
7
8F.PA526.8R0
SCREW TAP PAN M4*8L NI
PLASTIC
7.5±0.5
3.4±0.05
#2
8
8F.5A554.5R0
SCRW MACH FLAT M3*0.5P*5L NI N
METAL
Side mount:3±0.6
Other: 4±0.6
M3*0.5
#2
9
8F.GA224.8R0
SCRW TAP CAP M3*8L Zn
Metal
4±0.6
M3*0.5
#2
10
8F.00518.100
SCRW TAP W/FL M3*8L (S3.8) ZN
Metal
4±0.6
2.65±0.05
#2
11
8F.00524.8R0
SCRW M FH M4*8L(D7.5)B-ZN NYL
PLASTIC
11±0.6
M4*0.7
#2
12
8F.5A224.6R0
SCRW MACH FLAT M3*0.5P*6L ZN
Metal
4±0.6
M3*0.5
#2
13
8F.MA524.4R0
SCRW TAP FPH M3*4L(6/0.8) NI
Metal
5±0.5
2.65±0.05
#2
14
8F.VZ524.6R0
SCRW TAP FLAT+EXT M3*6L C-ZN
Metal
7±1.0
M3
#2
15
8F.5A456.8R0
SCRW MACH FH M4*8L B-ZN NYL
METAL
9.0±1.0
M4*0.7
#2
16
8F.1A556.8R0
SCRW MACH PH M4*8L NI NYL
METAL
9.0±1.0
M4*0.7
#2
17
8F.00010.161
SCRW TAPTILE TRS W/EXT M4*8L
METAL
9.0±1.0
M4*0.7
#2
*SCREW Q’TYPE AND POSITION
REFERRED TO C328.
*NOTES:
1. (A)STANDARD SCREW TORQUE SPEC.
2. (B)SPECIAL SCREW TORQUE SPEC.
3. T: TAPPING SCREW.
4. M: MACHING SCREW.
D-SUB Connector
SCREW TORQUE SPEC.
SCREW TORQUE: 3± 0.5 (KG-
CM)
DVI Connector
SCREW TORQUE SPEC.
SCREW TORQUE : 3± 0.5(KG-
CM)
SCREW D-SUB
SCREW DVI
