Acer V223HQ

- 9 -

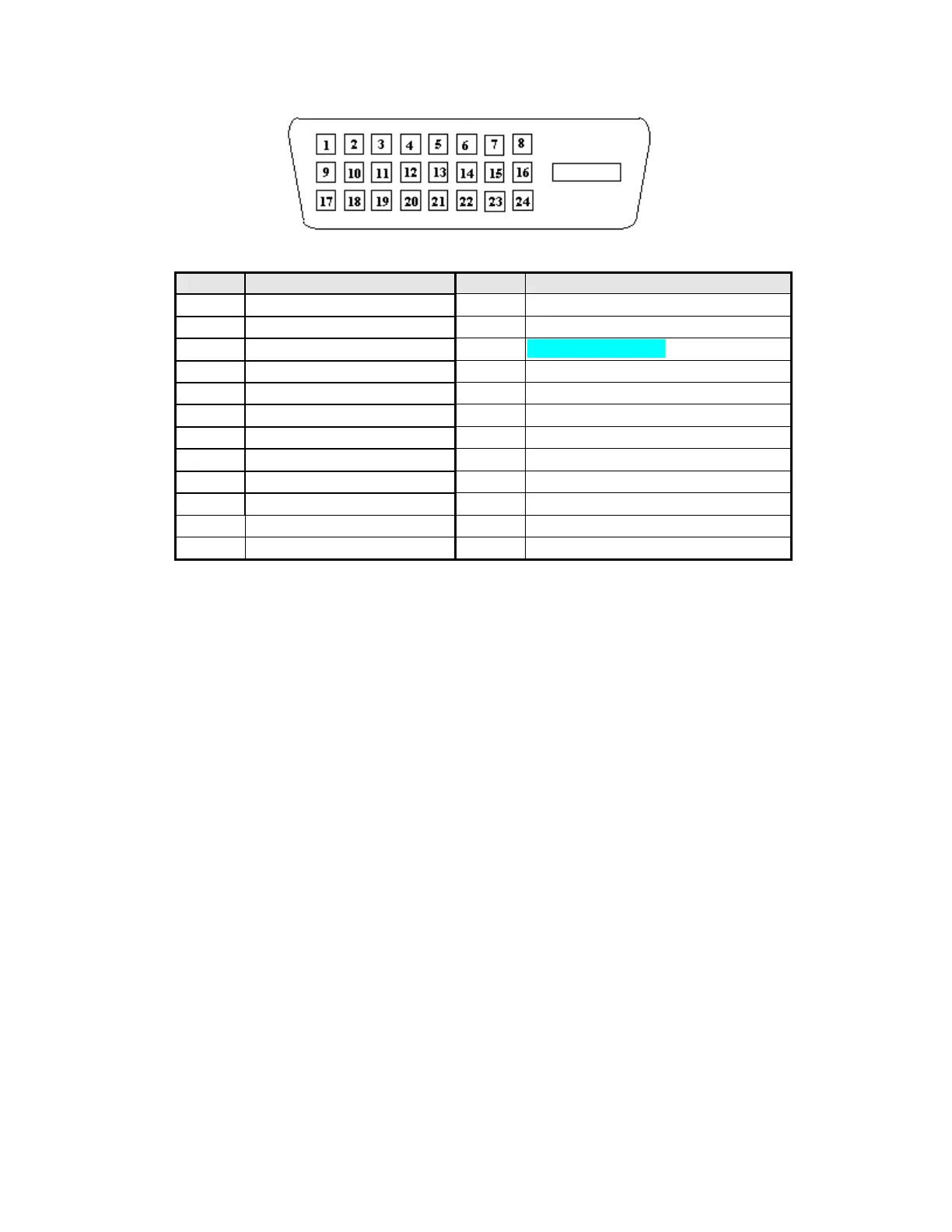

Note-2: The pin assignment of 24-pin DVI-D connector is as below,
P
i
n
Signal Assignment
Pin
Signal Assignment
1
TMDS RX2-
13
Floating
2
TMDS RX2+
14
+5V Power
3
TMDS Ground
15
Ground(Cable Detect)
4
Floating
16
Hot Plug Detect
5
Floating
17
TMDS RX0-
6
DDC Clock
18
TMDS RX0+
7
DDC Data
19
TMDS Ground
8
Floating
20
Floating
9
TMDS RX1-
21
Floating
10
TMDS RX1+
22
TMDS Ground
11
TMDS Ground
23
TMDS Clock+
12
Floating
24
TMDS Clock-
