Acer X111 - Projector Anatomy

3
English

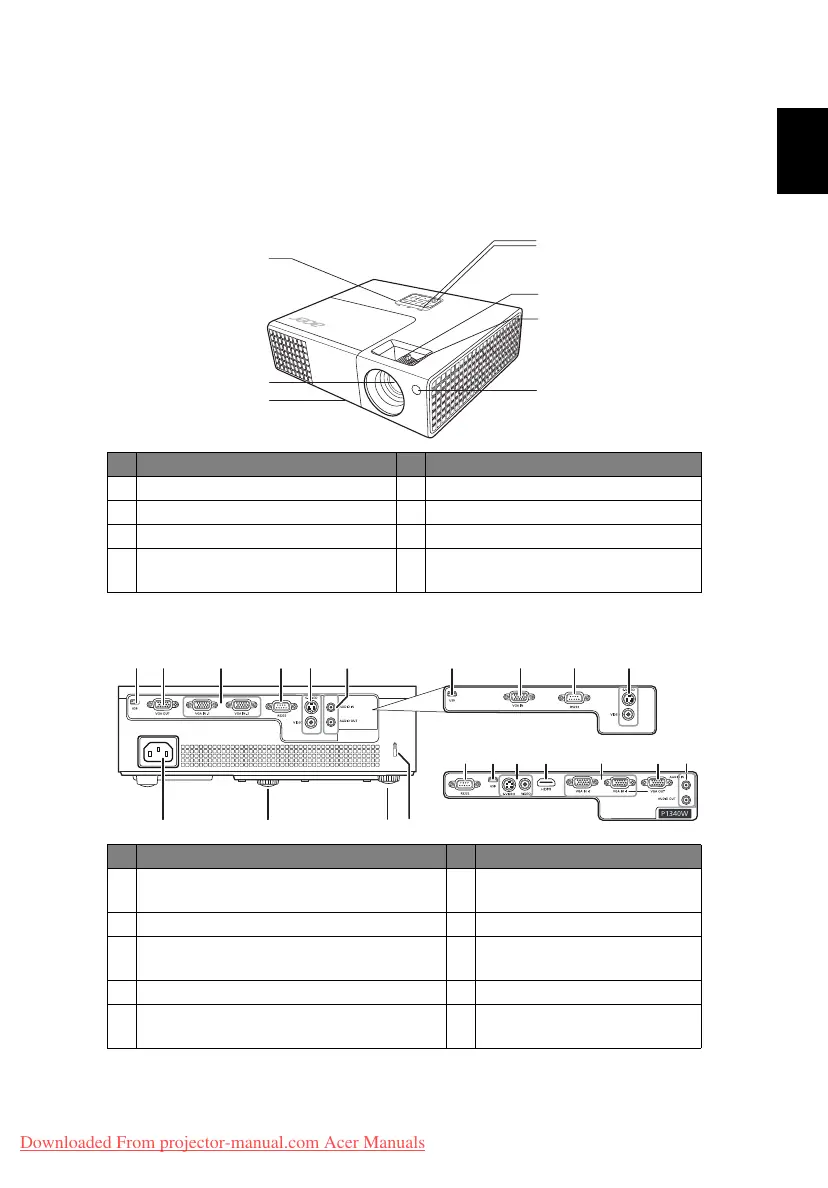

Projector Overview
Projector Outlook
Front / upper side
Rear side
# Description # Description
1 Control panel 5 Zoom ring
2 Projection lens 6 Focus ring
3 Tilt adjusting wheel 7 Remote control receiver
4 Power key and Power indicator
LED
# Description # Description
1 Mini USB connector 6 Audio input connector
Audio output connector
2 Monitor loop-through output connector 7 HDMI connector
3 Analog RGB signal/HDTV/component
video input connector
8 Tilt adjusting wheel
4 RS232 connector 9 Power socket
5 S-Video input connector
Composite video input connector
10 Kensington™ lock port
1
5
6
4
3
2
7
89
243 51
4 1 5 7 3 2 6
9
6
10
4 531
(X111/X1140)
(X1140A/X1240/X1340W)
(P1340W)
