• X1340W/P1340W

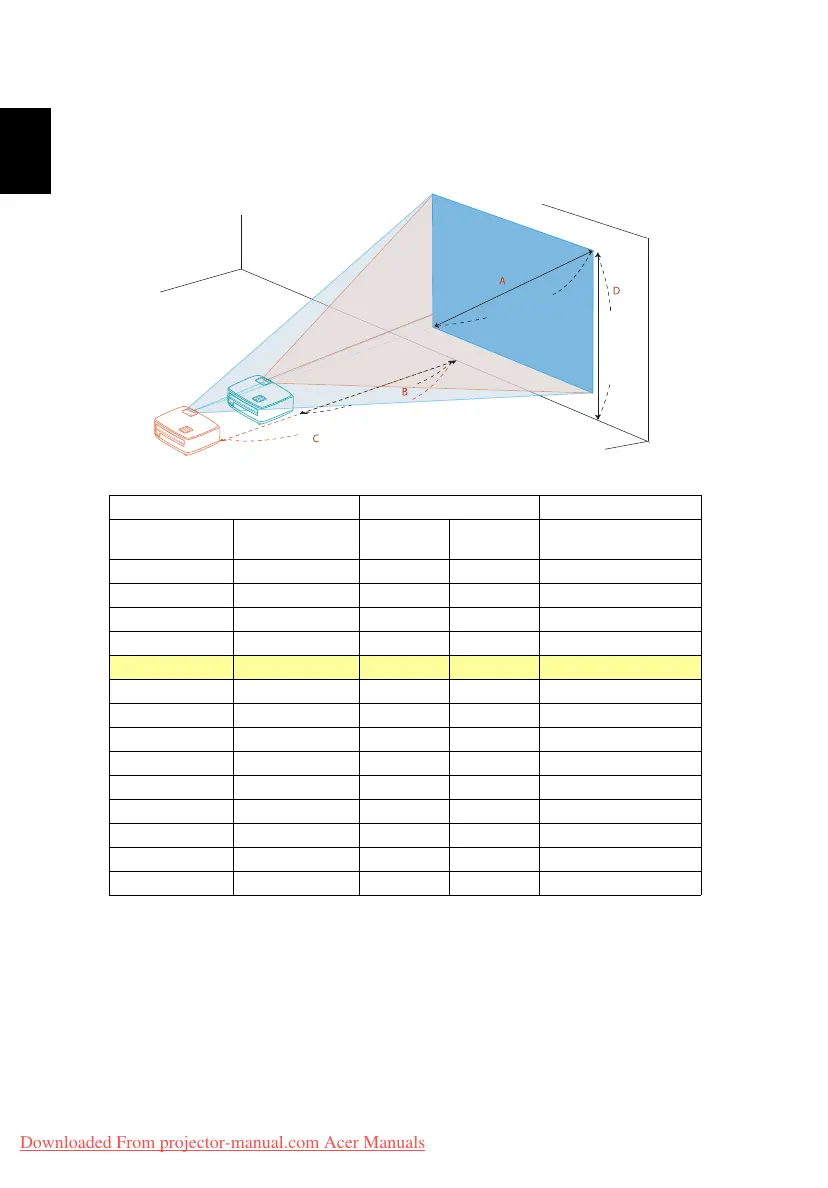

To obtain an image size of 70" set the projector at a distance between 2.3 m
and 2.5 m from the screen and adjust the zoom level accordingly.
Desired Image Size Distance (m) Top (cm)
Diagonal (inch)
< A >
W (cm) x H (cm)
Max zoom
< B >
Min zoom
< C >
From base to top of
image < D >
30 65 x 40 1.1 46
40 86 x 54 1.3 1.4 61
50 108 x 67 1.6 1.8 76
60 129 x 81 1.9 2.1 91
70 151 x 94 2.3 2.5 107
80 172 x 108 2.6 2.8 122
90 194 x 121 2.9 3.2 137
100 215 x 135 3.2 3.6 152
120 258 x 162 3.9 4.3 183
150 323 x 202 4.8 5.3 229
180 388 x 242 5.8 6.4 274
200 431 x 269 6.5 7.1 305
250 538 x 337 8.1 8.9 381
300 646 x 404 9.7 457
Zoom Ratio: 1.1 x
Desired distance
Height:
107 cm
From base
to top of
70"
Desired
image size
2.3 m
2.5 m
