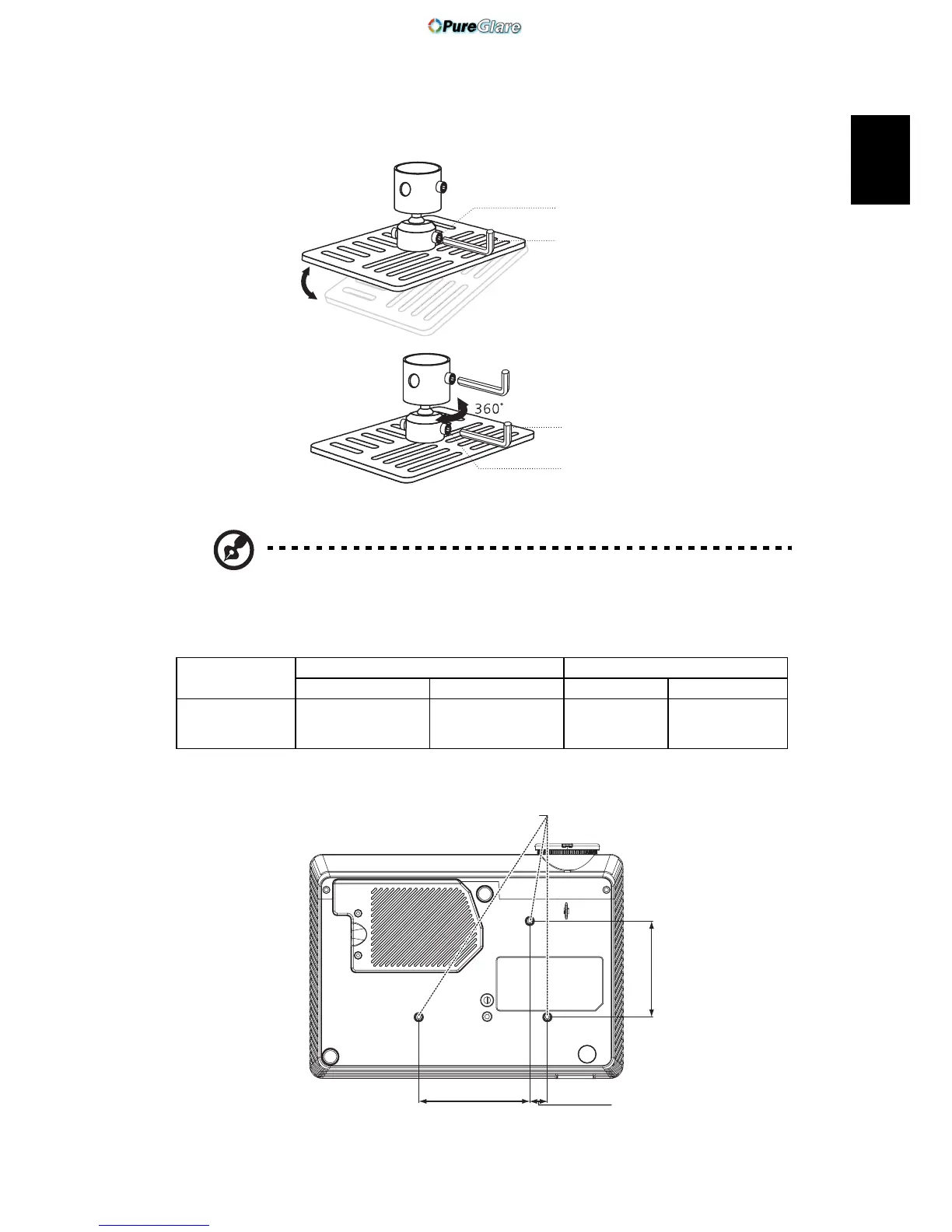

Acer X1161P Series - Attaching Bracket and Adjusting Mount Position

35
English
5 Adjust the angle and positioning as necessary.
Note: The appropriate type of screw and washer for each model is
listed in the table below. 3 mm diameter screws are enclosed in
the screw pack.
Models Screw Type B Washer Type
Diameter (mm) Length (mm) Large Small
X1161P/X1161PA/
X110P/H110P/
X1161N/X1261P
325VV
30°
Tightening Screw
Allen Key
Allen Key
Tightening Screw
82.30 mm
15.00 mm
95.00 mm
SCREW SPEC. M3 x 25 mm
