ACMER P2 - Finalizing X-axis Movement and Screws; Installing the Laser Module

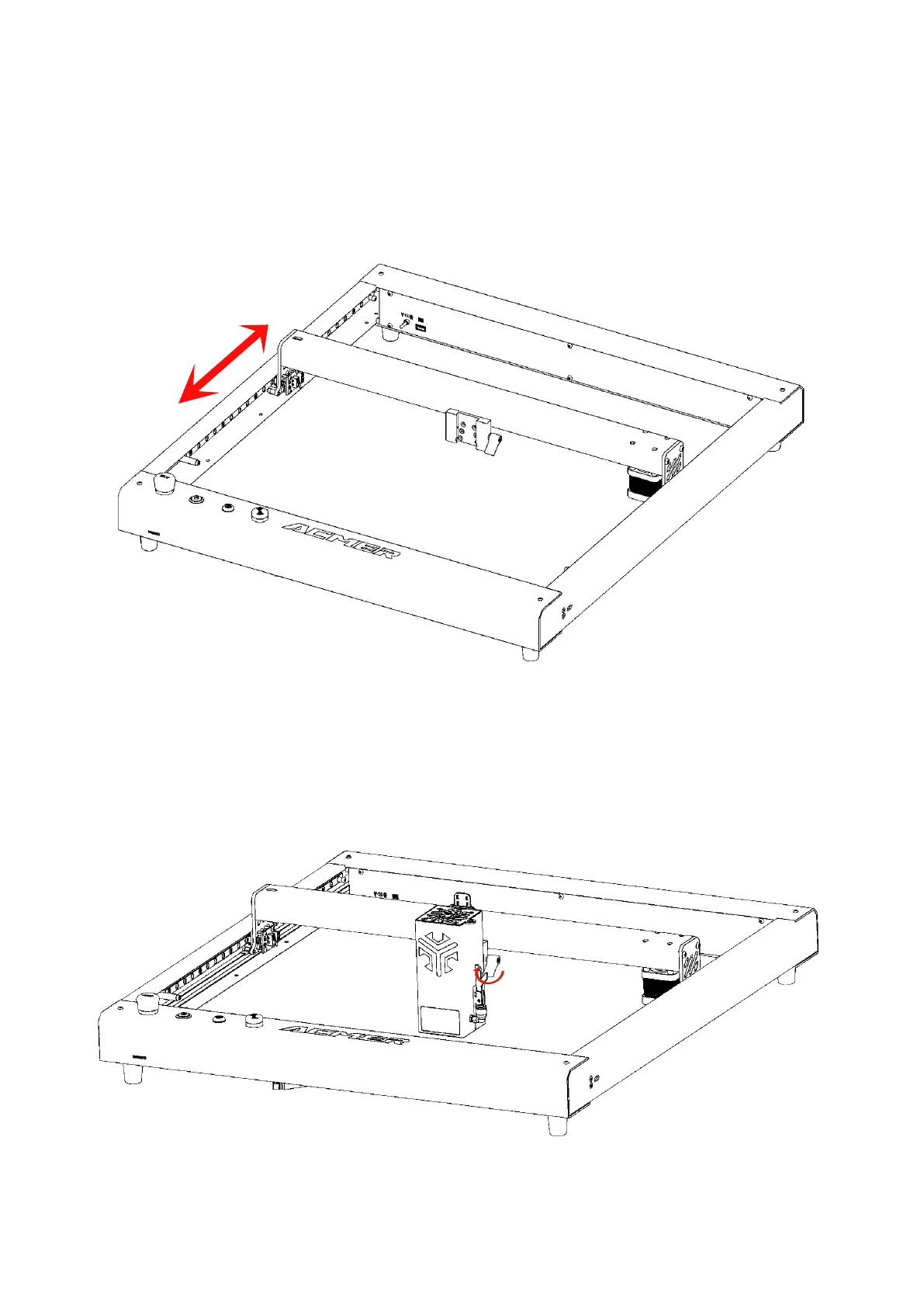

6.3.4 Remove the laser module, slide it into the slide slot, and tighten the side
screws to secure it.
6.3.3 Slowly move the X-axis assembly back and forth to ensure smooth
movement in the Y-axis direction and then lock the previously unlocked
screws.
