Acorn 80 Installation Manual

11
ACORN 80 Installation Manual
SECTION 4

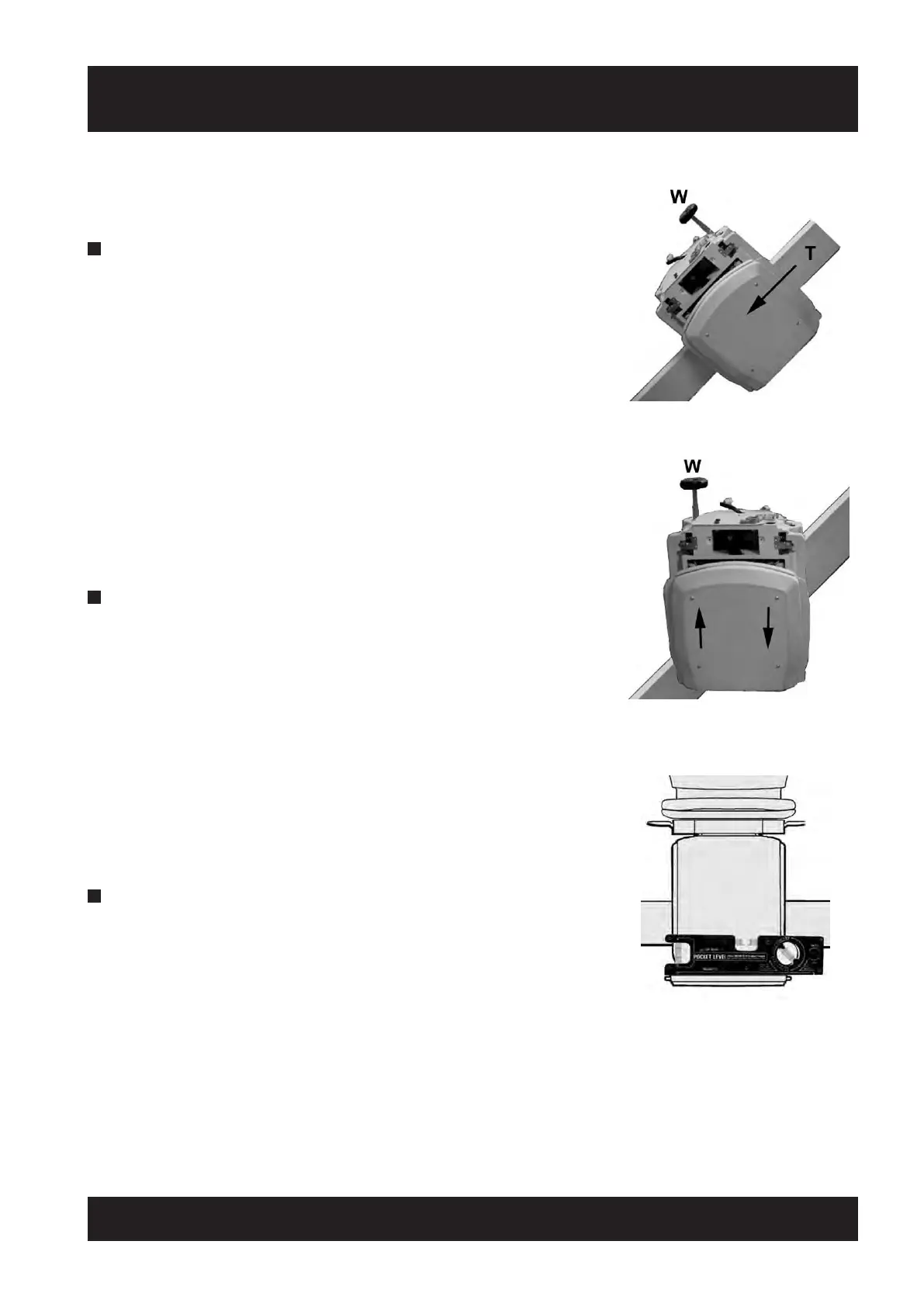

Fitting Carriage to Rail
3 Level the carriage as required, using the winding handle (W) on the
levelling motor.
4 Check the carriage is level with a spirit level on the footrest.
2 Fit the winding handle (W) onto the top of the drive motor. Handwind
the carriage off the transfer rail (T) onto the fitted rail. Remove transfer
rail. Where necessary, fit the last section of rail.

Acorn 80 Specifications

General

Safety Features	seatbelt
Speed	0.15 m/s
Seat Type	Padded
Footrest	Flip-up
Foldable	Yes
Color Options	Beige
Power Supply	Battery powered (2 x 12V sealed lead acid batteries)
