Acorn 80 Installation Manual

16
ACORN 80 Installation Manual
SECTION 6
Fitting Seat to Carriage

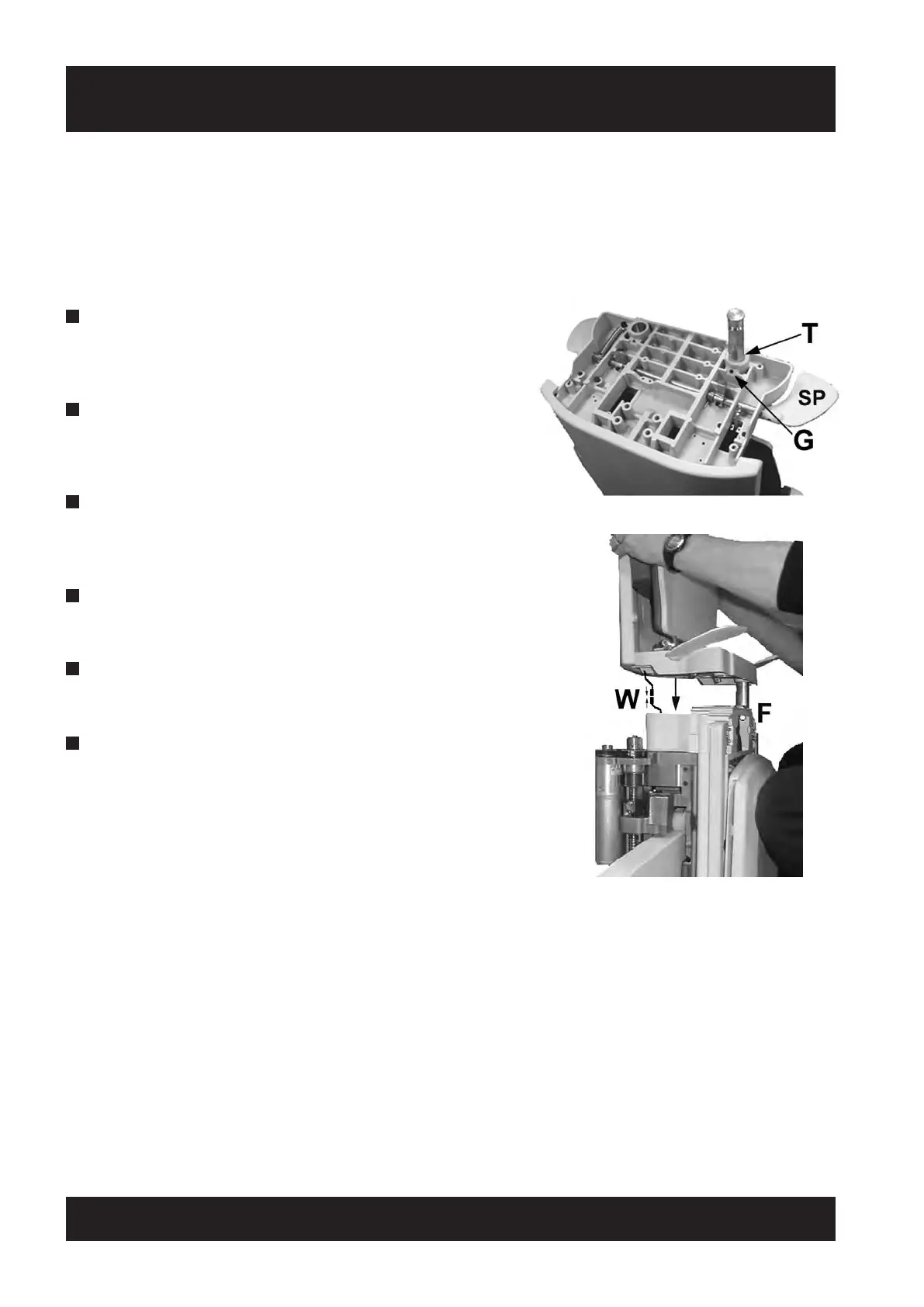

FITTING SEAT TO CARRIAGE
1 Apply the recommended grease to the swivel pin – see Appendix 3.
Ensure grub screw (G) is tight and the seat pin is secure.
2 Place the thrust washer (T) over the swivel pin.
(Only applies to power swivel).
3 Position the seat square with the main frame and locate
the swivel pin into its bearing bush, ensuring the thrust
washer is located, where applicable.
4 Hold paddle arms down and push the seat fully down into the frame (F).
5 Check the seat swivel locking mechanism operates correctly,
using the swivel paddles (SP).
6 Connect the seat wiring (W) to the PCB connector.

Acorn 80 Specifications

General

Safety Features	seatbelt
Speed	0.15 m/s
Seat Type	Padded
Footrest	Flip-up
Foldable	Yes
Color Options	Beige
Power Supply	Battery powered (2 x 12V sealed lead acid batteries)
