ACORN 80 Installation Manual
SECTION 7

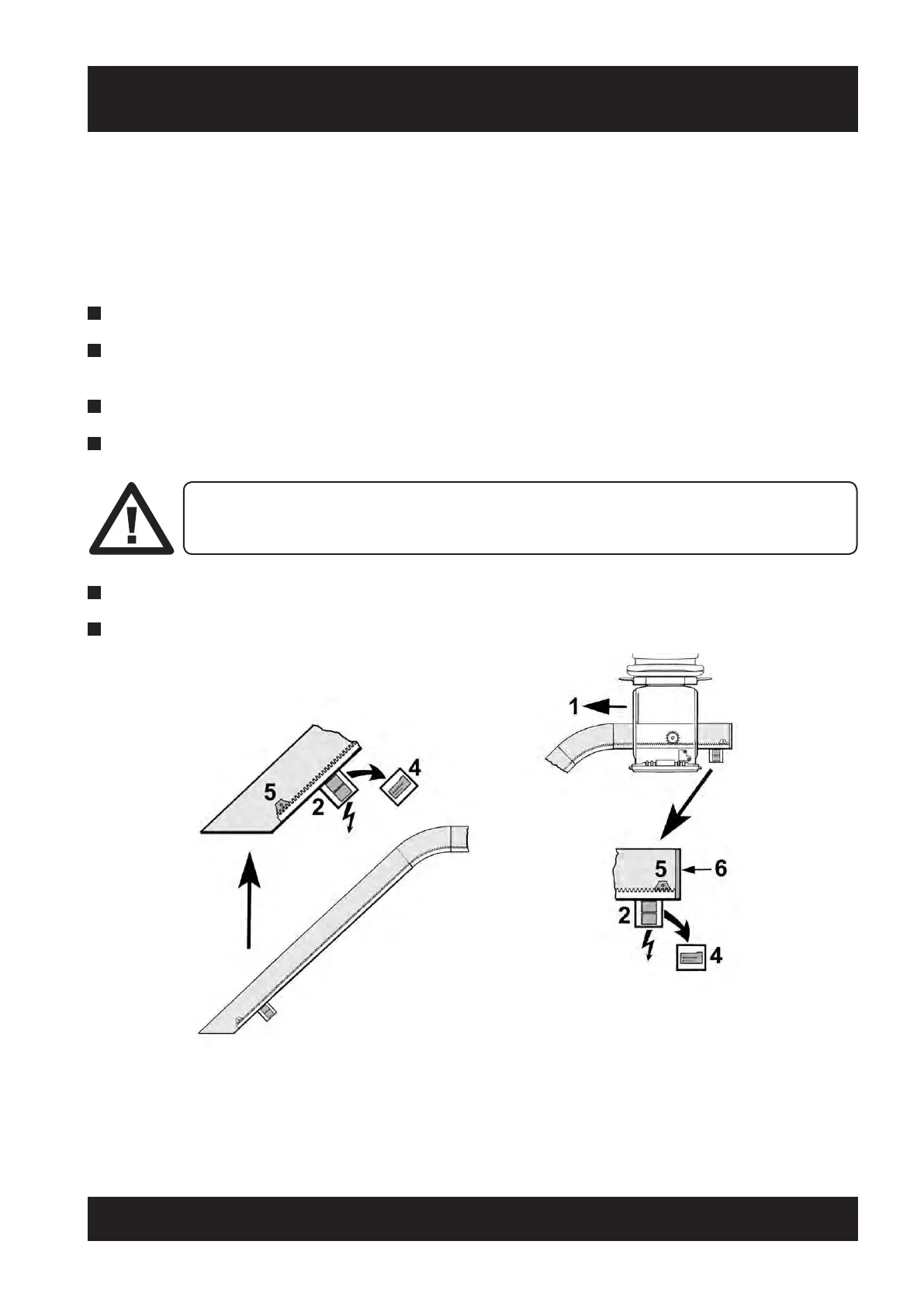

Fitting Rail Equipment
1 If necessary move the lift back along the rail using the winding handle.
2 Fit the top & bottom charge points to the rail as shown on the installation drawing. Connect the charge
points to the battery charger.
3 Test all charge points with a voltmeter (32v DC).
4 Fit the top & bottom limit switch striker plates onto the back of the charge points.
5 Fit the top & bottom mechanical stops to the rail rack.
6 Fit the end cap to the final section of rail.
FITTING RAIL EQUIPMENT
THE NEXT STEP IS AN IMPORTANT SAFETY REQUIREMENT.

Acorn 80 Specifications

General

Safety Features	seatbelt
Speed	0.15 m/s
Seat Type	Padded
Footrest	Flip-up
Foldable	Yes
Color Options	Beige
Power Supply	Battery powered (2 x 12V sealed lead acid batteries)
