ACORN 80 Installation Manual
APPENDIX 10

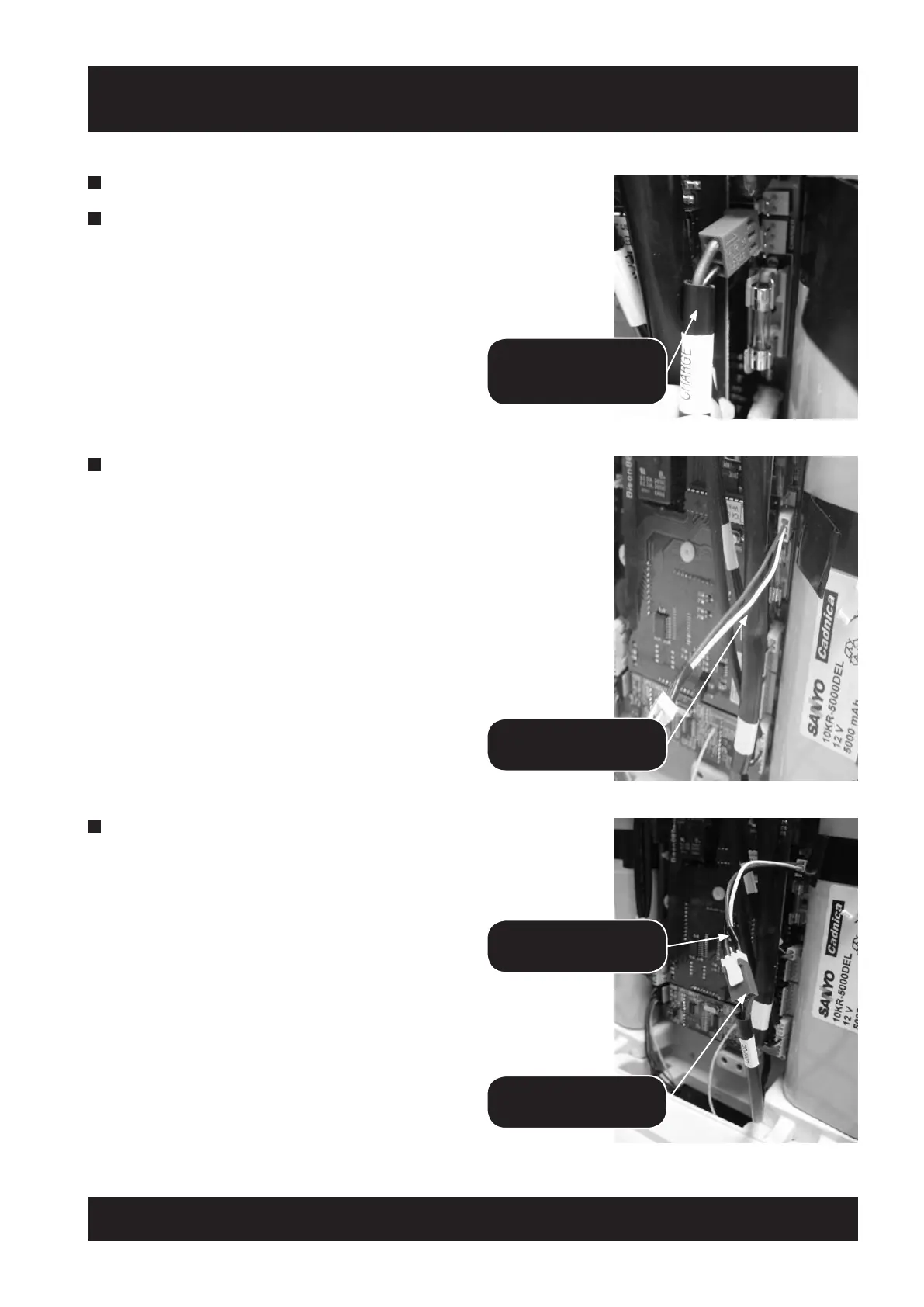

Rationalisation Procedures
1 Remove front cover of carriage.
2 Disconnect the charger harness from the main PCB as shown.
CHARGE HARNESS
DISCONNECTED
FROM THE PCB
3 Connect the Supercharger link wire (1021542) onto the charger
point on the PCB as shown.
4 Connect the charge harness to the supercharger link wire.
Neatly secure cable with cable ties and re-assemble front cover
to carriage.
SUPERCHARGER
LINK WIRE
1021542
CHARGE HARNESS
SUPERCHARGER
LINK WIRE
