ACORN 80 Installation Manual
APPENDIX 10
Rationalisation Procedures
10.4 Connecting Supercharger Link
RE-ASSEMBLE THE CARRIAGE FRONT COVER TO THE MAINFRAME, ENSURING THAT NO
CABLES ARE TRAPPED IN THE COVERS

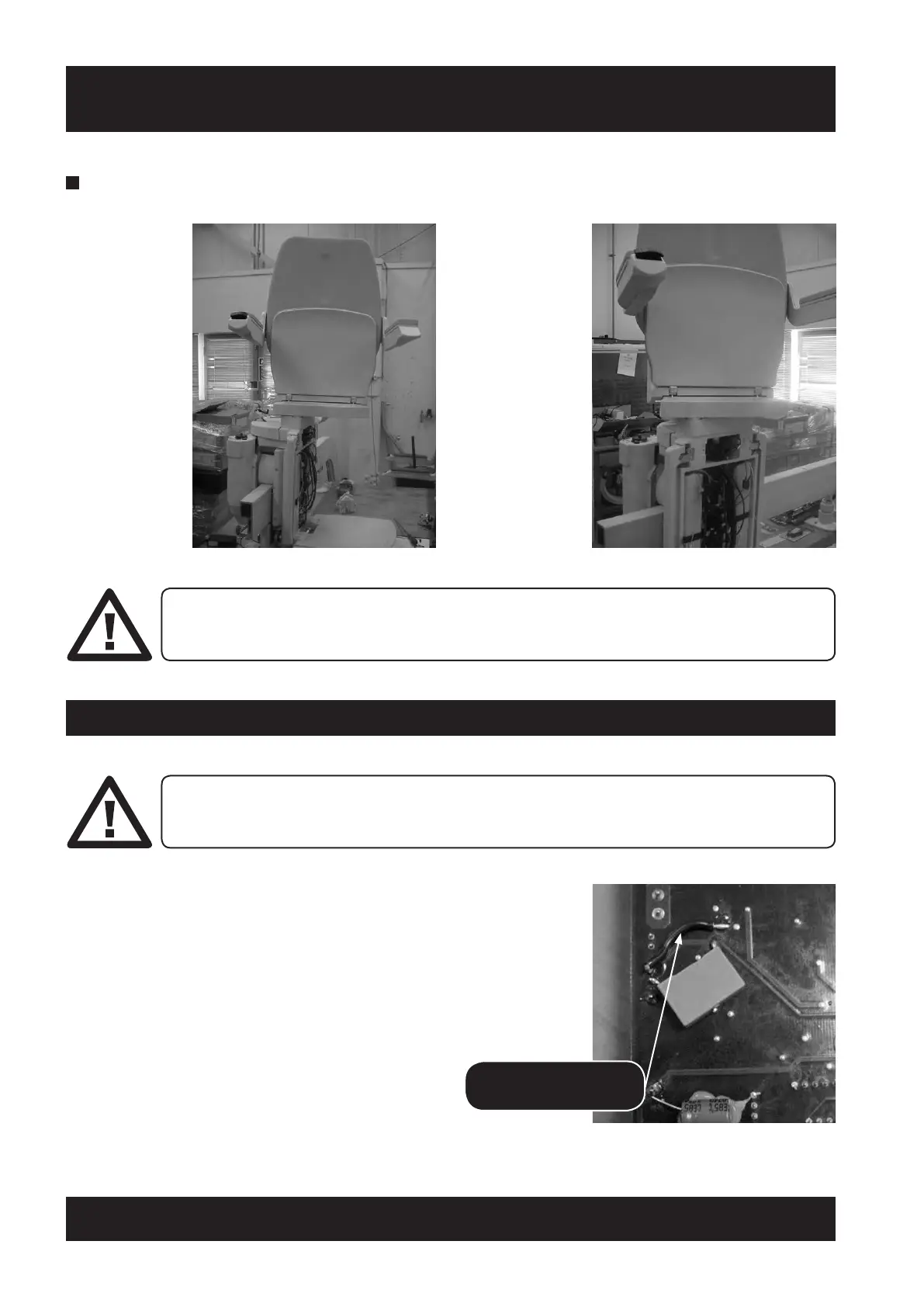

15 Check the motor is correctly working on the carriage and that the seat fully clears the carriage at all points.
IN ORDER FOR THE SUPERCHARGER LINK WIRE TO WORK, THE MAIN PCB MUST ALSO HAVE
A LINK WIRE ON THE BACK OF THE BOARD AS SHOWN BELOW
LINK WIRE ON THE
BACK OF THE BOARD
