ACORN 80 Installation Manual
APPENDIX 10
Rationalisation Procedures

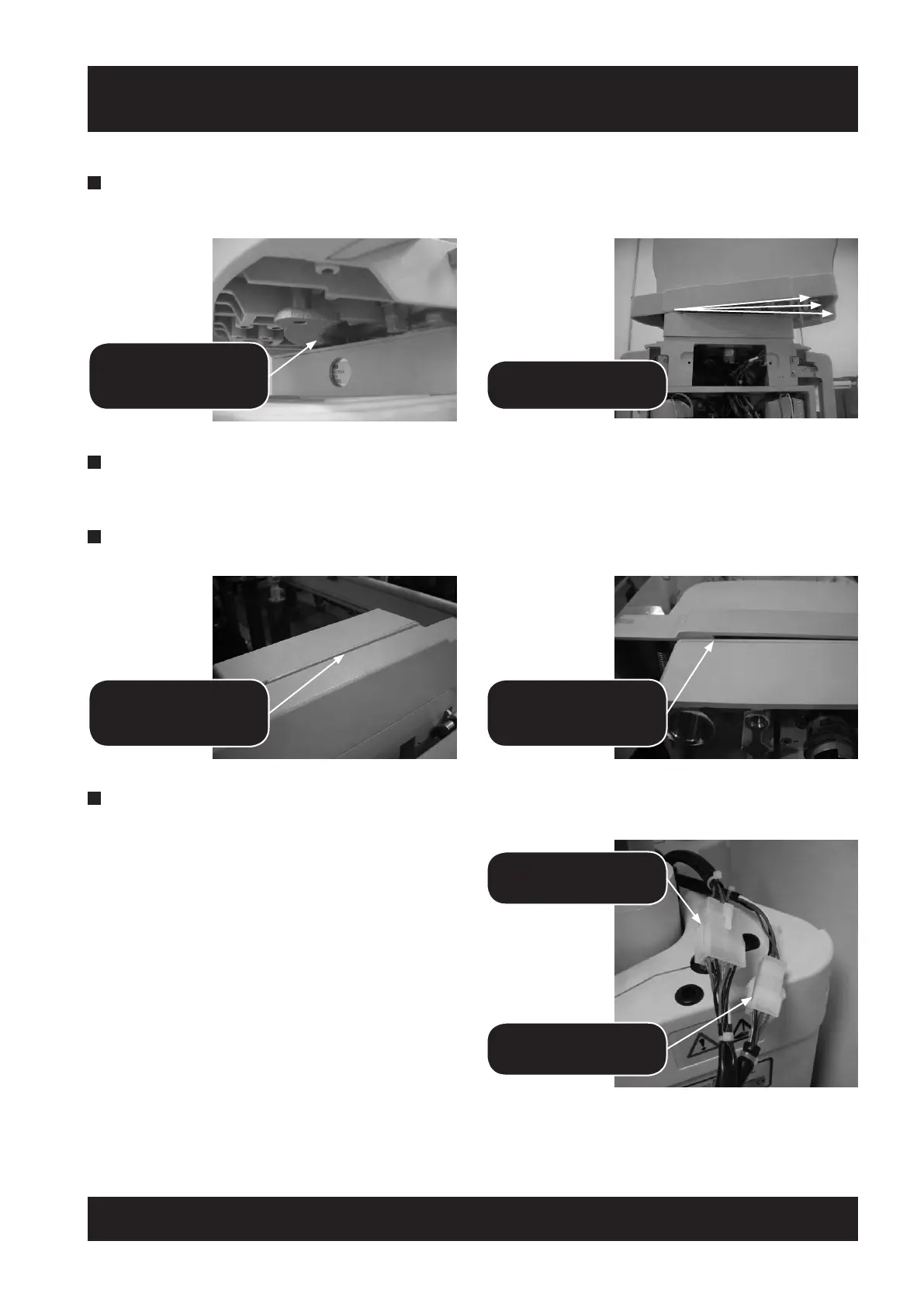

11 Release the Swivel paddle and check to see that the motor gear teeth are in mesh with the motor quadrant
on the base of the seat.
12 Check the positioning of the quadrant by checking the alignment of the seat spacer when the swivel is
moved to its fully closed position. Adjust the quadrant (118CSBM29 or 118CSBM28) slightly until level
with seat base.
13 Spray Gear quadrant with Fin grease (902231)
ENSURE MOTOR GEAR
IS IN MESH WITH
MOTOR QUADRANT
CHECK MESHING IN
3 POSITIONS
SHOULD BE LEVEL
WITH THE SEAT BASE
OR SLIGHTLY ABOVE
MUST NOT BE BELOW
EDGE OF SEAT BASE
WHEN FULLY CLOSED
14 Connect the options and seat harnesses from the seat to the harnesses from the carriage.
OPTIONS HARNESS
ARM HARNESS
