ACORN 80 Installation Manual
APPENDIX 10
Rationalisation Procedures

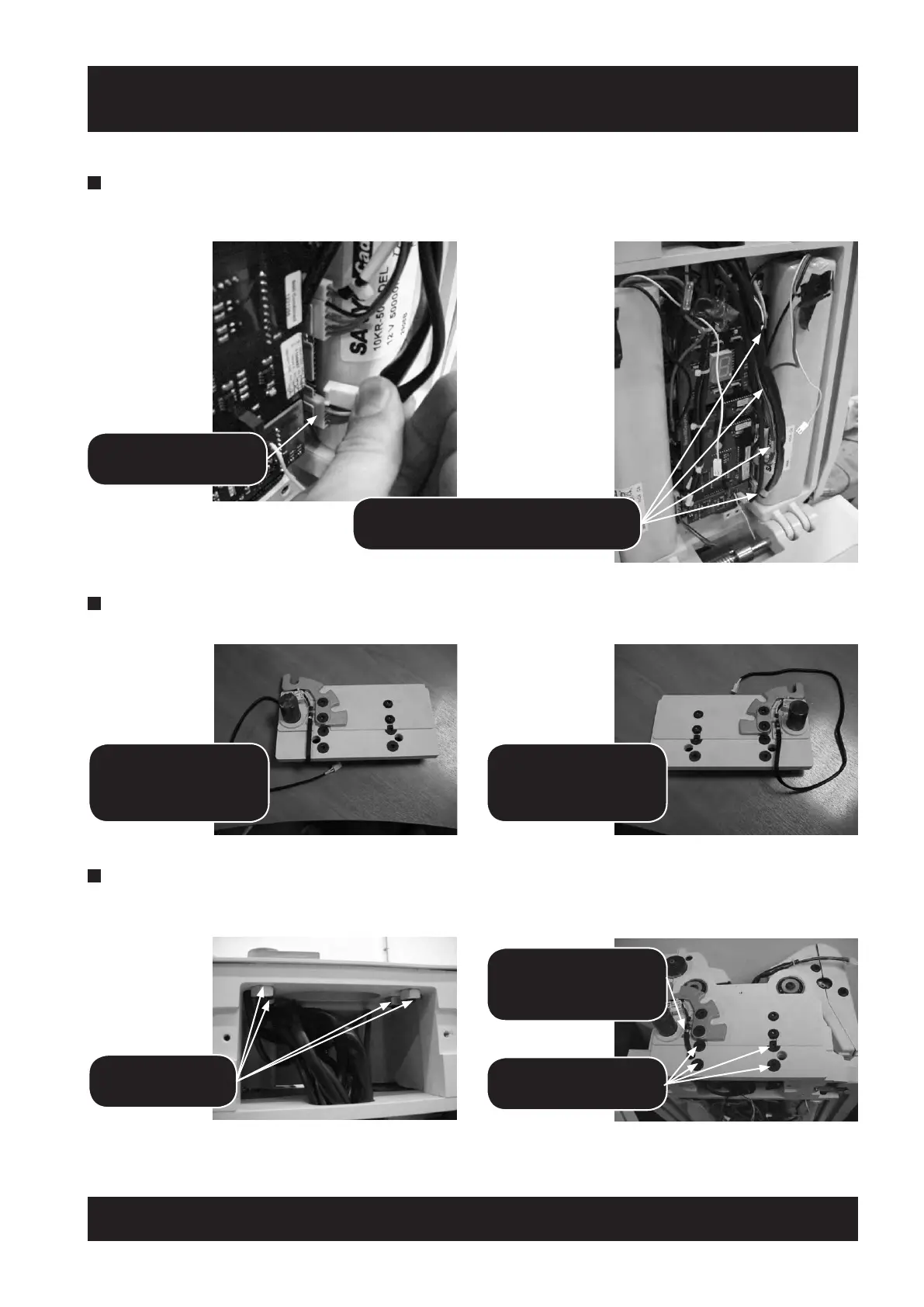

5 Ensure seat posts are free from paint and that the correct handed adaptor plate is supplied.
4 Disconnect the Seat interlock harness from the main PCB and remove all the tie wraps that is securing the
harness in position. Completely remove the seat spacer assembly.
REMOVE SEAT
INTERLOCK HARNESS
REMOVE TIE-WRAPS SECURING THE
INTERLOCK HARNESS IN POSITION
4 x M8 NUTS
900009
SEAT ADAPTOR PLATE
(1241671 L/H)
SEAT POST WELDED ON
RIGHT FOR LEFT HAND
SEAT ADAPTOR PLATE
(1241672 R/H)
SEAT POST WELDED ON LEFT
FOR RIGHT HAND
HARNESS WIRING FED
CORRECTLY THROUGH
THE MAINFRAME
CASTING
M8 x 30mm CSK
SOCKET CAP SCREWS
901045
6 Secure the adaptor plate assembly to the carriage using the supplied 4 PATCHED M8 x 30MM CSK socket
cap screws (901045) and 4 M8 nuts (900009).
