ACORN 80 Installation Manual
APPENDIX 10
Rationalisation Procedures

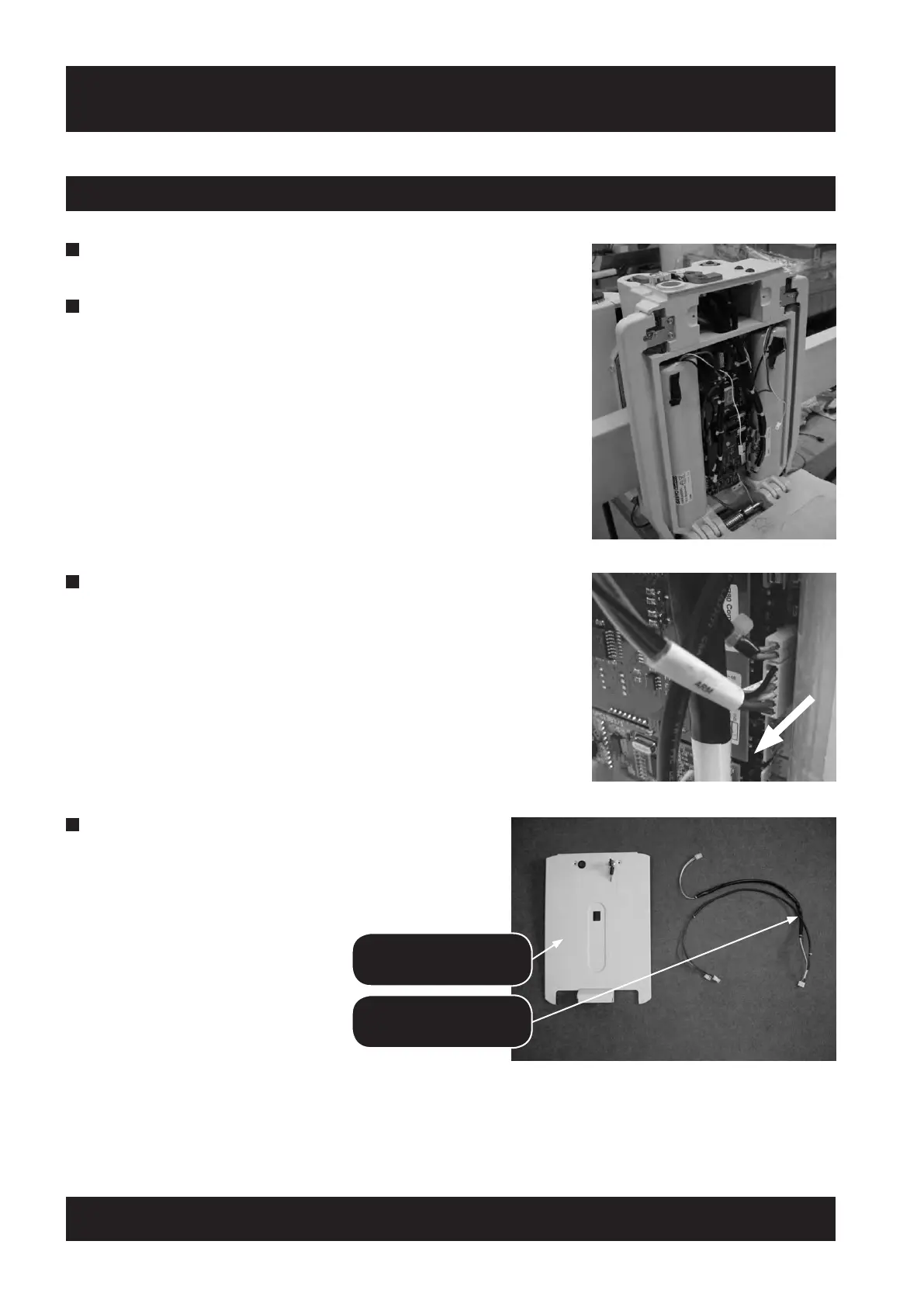

10.6 Replacing Carriage Front Cover / Arm Harness
1 Disconnect the seat Arm harness connecting the seat to the
carriage and remove the seat.
2 Remove Front cover from the carriage.
3 Disconnect Arm Harness from Main PCB and completely remove
from carriage.
4 Unpack carriage cover assembly kit, parts included
are as shown below.
B80 CARRIAGE FRONT
COVER ASSEMBLY
1249000
ARM / SWITCH
HARNESS
1021541
