Readout Modes
Acqiris SA240P User's Manual 29
Chapter 3
ReadoutModes
3.1 Standard readout modes
As presented in the Digitizer acquisition mode (page 18), the two standard acquisition and readout
modes are:
Single record mode: one shot with single waveform, with a single trigger
Multi-record mode: one shot with multiple waveforms, with multiple triggers

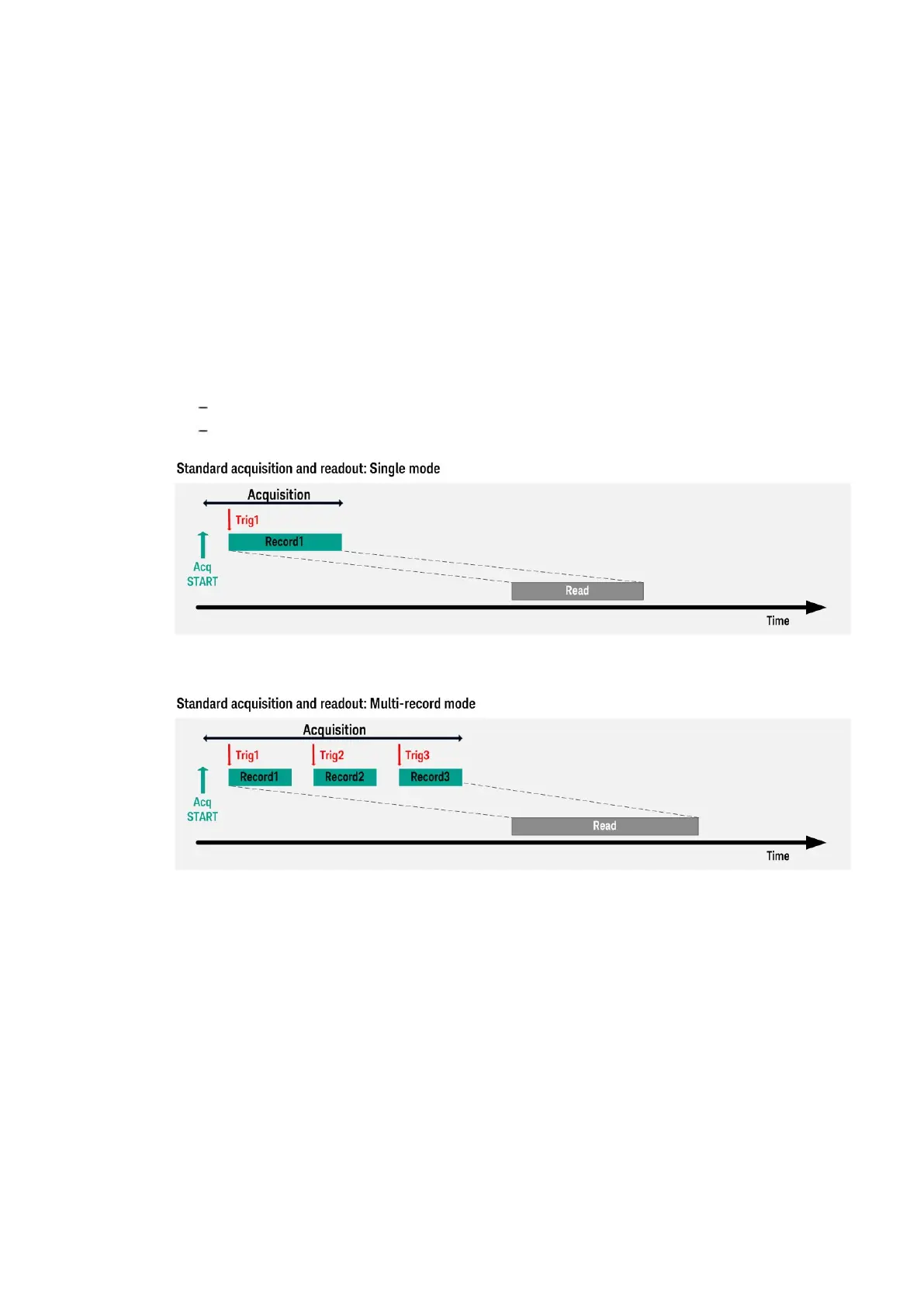

Figure 3.1 - Acquisition sequence using a single record.
Figure 3.2 - Acquisition sequence using multi-records.
The specific readout mode(s) detailed in the following depends on your product version and ordered
options.
