4.1 Baseline stabilization and digital offset
46 Acqiris SA240P User's Manual
Baseline correction calculation period.
There are two modes for baseline correction calculation (see Figure below).

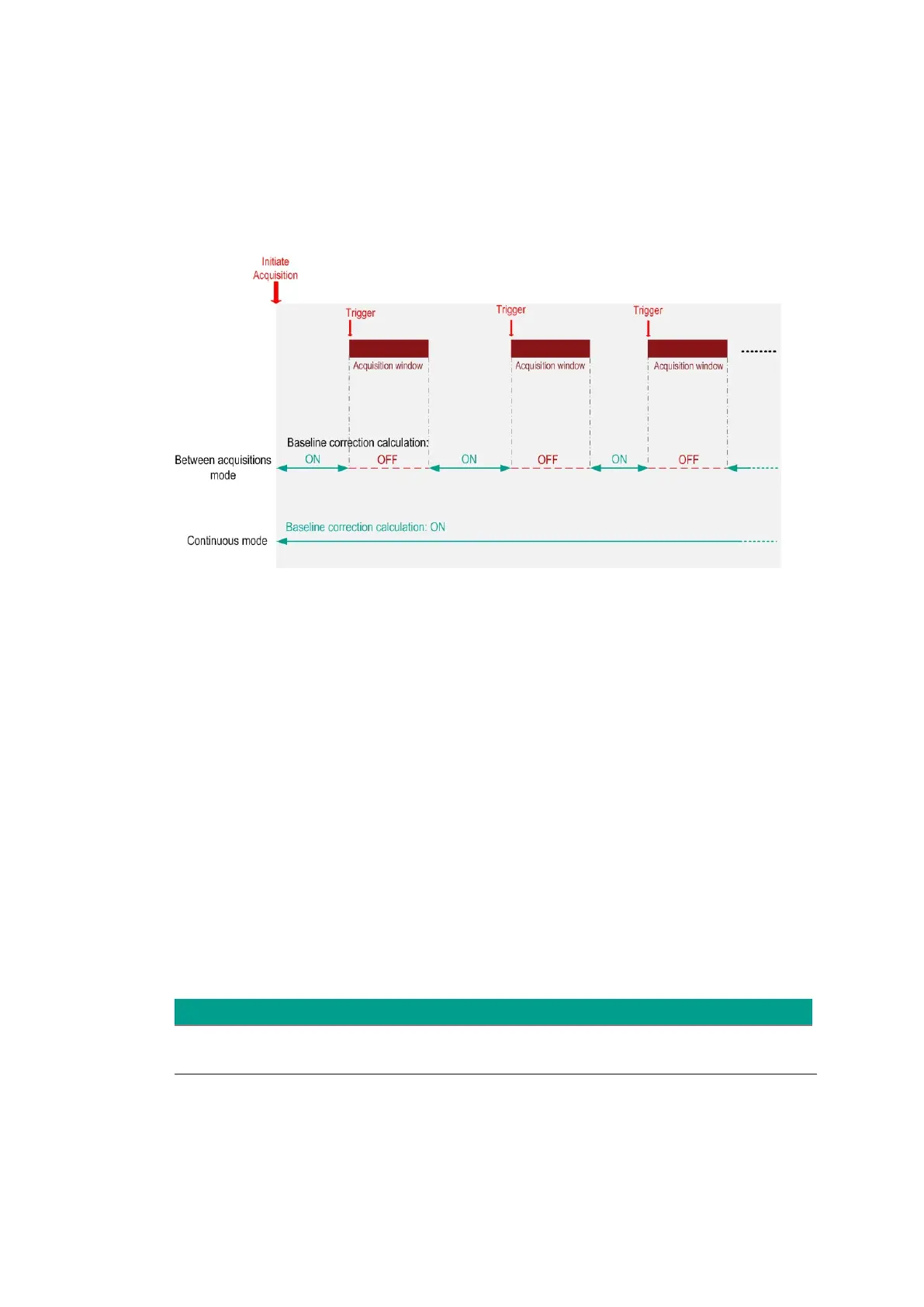

Figure 4.2 - Comparison of the two modes of operation for baseline correction calculation.
a) Continuous: the baseline estimation is active all the time .
b) Between acquisitions: the baseline estimation is active only outside the acquisition window (i.e.
from the trigger to the end of the record, defined by acquisition size).This mode is a way to exclude
unwanted signal values from the baseline estimation, assuming that there is no or very low active
signal outside the acquisition window.
Configuration
The interfaces/methods/properties (functions/attributes) listed below are provided by the Acqiris
MD3 Software. Detailed help on these interfaces may be found in the AqMD3 IVI Driver Help —
Please refer to AqMD3.chm (IVI-C) or Acqiris.AqMD3.Fx40.chm (IVI.NET).
IVI-C
Function
Function Description
AqMD3_Chan-
nelBaselineCorrectionConfigure
Configures the baseline stabilization properties.
