5.3 Trigger output
60 Acqiris SA240P User's Manual
Specifications
In the default software configuration, the output swing is 3.3 V, when unloaded and 1.6 V when
terminated on 50 Ω.
The maximum output current capability is ± 15 mA. As the output is retro-terminated, it is possible to
drive a 50 Ω line un-terminated (HiZ) without loss of performance.

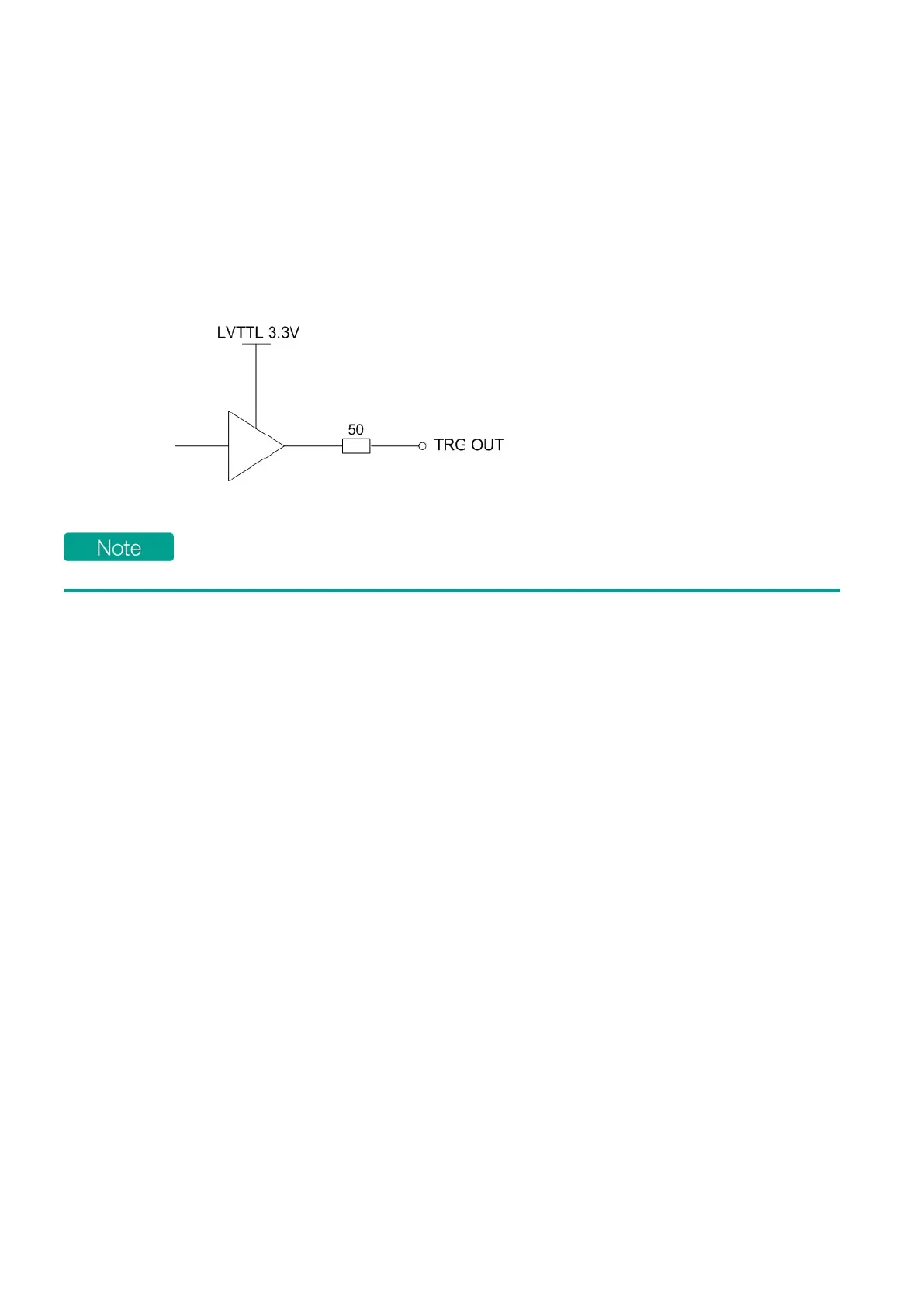

Figure 5.2 - Trigger output block diagram.
The external trigger output functionality is implemented in the hardware. No trigger out signal
occurs for software-generated triggers.
