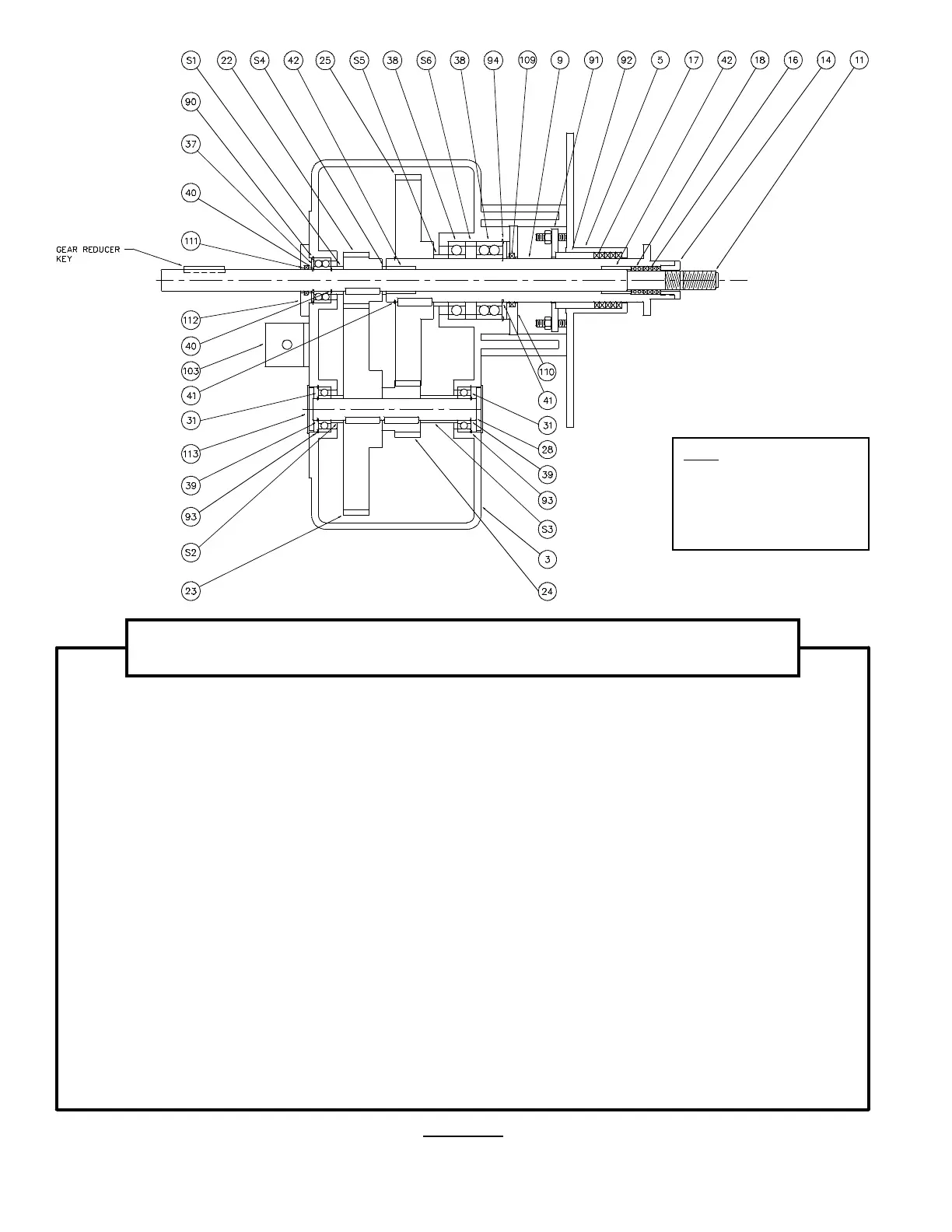

acrison 105-BB - Double Concentric Auger Drive (with Universal Gearbox)- Figure 3

FIGURE 3
NOTE:
The Numerical Component
designations indicated in this
Illustration are for reference
purposes only for use within
this Instruction Manual.
'28%/(&21&(175,&$8*(5'5,9(
8QLYHUVDO*HDUER[
3.
Gearbox
5.
Seal Housing Assembly
9.
Conditioning Auger Drive Shaft
11.
Metering Auger Drive Shaft
14.
Seal Cap (Metering Auger Drive Shaft)
16.
Braided Synthetic Packing
(Metering Auger Drive Shaft)
17.
Braided Synthetic Packing
(Conditioning Auger Drive Shaft)
18.
Seal Spring (Metering Auger Drive Shaft)
22.
“A” Drive Gear
23.
“A” Driven Gear
24.
“B” Drive Gear
25.
“B” Driven Gear
28.
Countershaft
31.
Bearings (Countershaft)
37.
Bearing (Metering Auger Drive Shaft)
38.
Bearings (Conditioning Auger Drive Shaft)
39.
Snap Rings (Countershaft)
40.
Snap Rings (Metering Auger Drive Shaft)
41.
Snap Rings (Conditioning Auger Drive Shaft
)
42.
Front/Rear Bushings
90.
Retaining Ring
(Metering Auger Drive Shaft Bearing)
91.
Seal Cap Pressure Plate
92.
Split Seal Bushing
(Conditioning Auger Drive Shaft)
93.
Retaining Ring (Countershaft Bearing)
94.
Retaining Ring
(Conditioning Auger Drive Shaft Bearing)
103.
Gearbox Support Bracket
109.
Dust Seal Packing (Optional)
(Conditioning Auger Drive Shaft Bearing)
110.
Dust Seal Plate (Optional)
(Conditioning Auger Drive Shaft Bearing)
111.
Dust Seal Packing (Optional)
(Metering Auger Drive Shaft Bearing)
112.
Dust Seal Plate (Optional)
(Metering Auger Drive Shaft Bearing)
113.
Dust Cap (Countershaft)
S1.
Spacer (Metering Auger Drive Shaft)
S2.
Spacer (Countershaft)
S3.
Spacer (Countershaft)
S4.
Spacer (Metering Auger Drive Shaft)
S5.
Spacer (Conditioning Auger Drive Shaft)
S6.
Spacer (Conditioning Auger Drive Shaft
Bearings)
26
