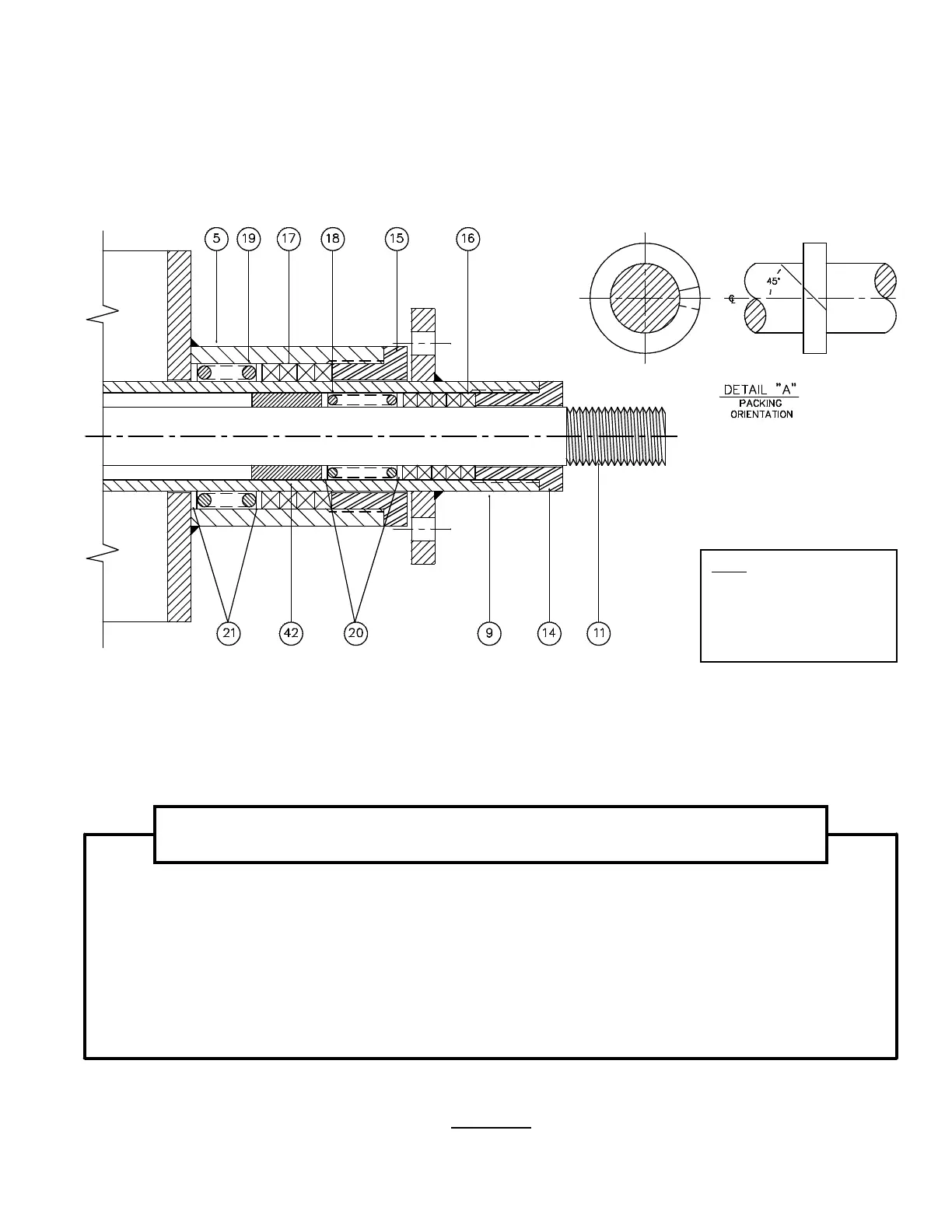

acrison 105-BB - Double Concentric Auger Drive (Used with Type PB Gearboxes)- Figure 4

FIGURE 4
'28%/(&21&(175,&$8*(5'5,9(
XVHGZLWK7\SH3%*HDUER[HV
5.
Seal Housing Assembly
9.
Conditioning Auger Drive Shaft
— Flanged is standard
— Threaded is optional
11.
Metering Auger Drive Shaft
14.
Seal Cap (Metering Auger Drive Shaft)
15.
Seal Cap
(Conditioning Auger Drive Shaft)
16.
Braided Synthetic Packing
(Metering Auger Drive Shaft)
17.
Braided Synthetic Packing
(Conditioning Auger Drive Shaft)
18.
Seal Spring (Metering Auger Drive Shaft)
19.
Seal Spring (Conditioning Auger Drive Shaft)
20.
Seal Spring Washers (Optional)
(Metering Auger Drive Shaft)
21.
Seal Spring Washers (Optional)
(Conditioning Auger Drive Shaft)
42.
Front/Rear Bushings
(Rear Bushing not shown)
NOTE:
The Numerical Component
designations indicated in this
Illustration are for reference
purposes only for use within
this Instruction Manual.
27
