AR-B1579 User’s Guide
3-12
A. System Base Clock & CPU Clock Multiplier (SW1)
ON
123456
OFF
ClockMultiplier
SW1 -- Factory Default Setting
7 8
D.O.C.
RS-485

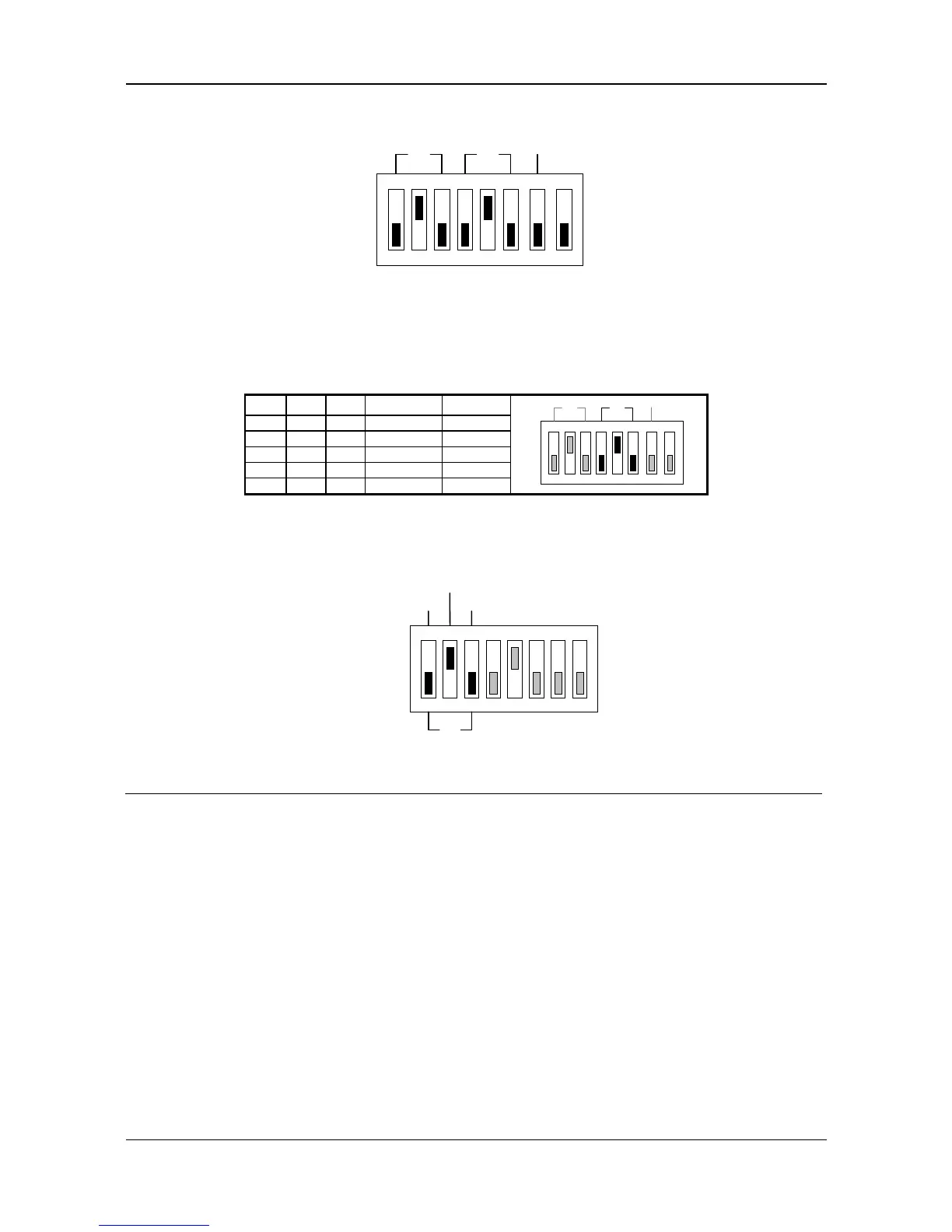

Figure 3-26 SW1: CPU Clock Multiplier
(1) CPU Base Clock Select (SW1)
This board supports different types of CPUs. The clock generator needs to be set by SW1.
The CPU input clock is twice the operation clock.
SW1-4 SW1-5 SW1-6 Base Clock PCI Clock
ON ON OFF 50MHz 25MHz
OFF ON OFF 66.6MHz 33.3MHz
ON OFF OFF 60MHz 30MHz
OFF OFF OFF 55MHz 27.5MHz
OFF OFF ON 75MHz 37.5MHz
ON
123456
OFF
ClockMultiplier
7 8
D.O.C.
RS-485
Table 3-6 SW1: CPU Clock Multiplier
(2) CPU Clock Multiplier Select (SW1)
The CPU clock multiplier needs to be set by SW1.
ON
123456
OFF
Multiplier
BF0
BF1
BF2
7 8
Figure 3-27 SW1: CPU Clock Multiplier
NOTE:
1. SW1 jumper setting – BF0-BF2: On presents Low, Off presents High.
2. Intel CPU MMX - 200 is factory default setting.
