Ultrasonic flaw detector А1212 MASTER
Operation Manual
43
ACOUSTIC
CONTROL
SYSTEMS
2

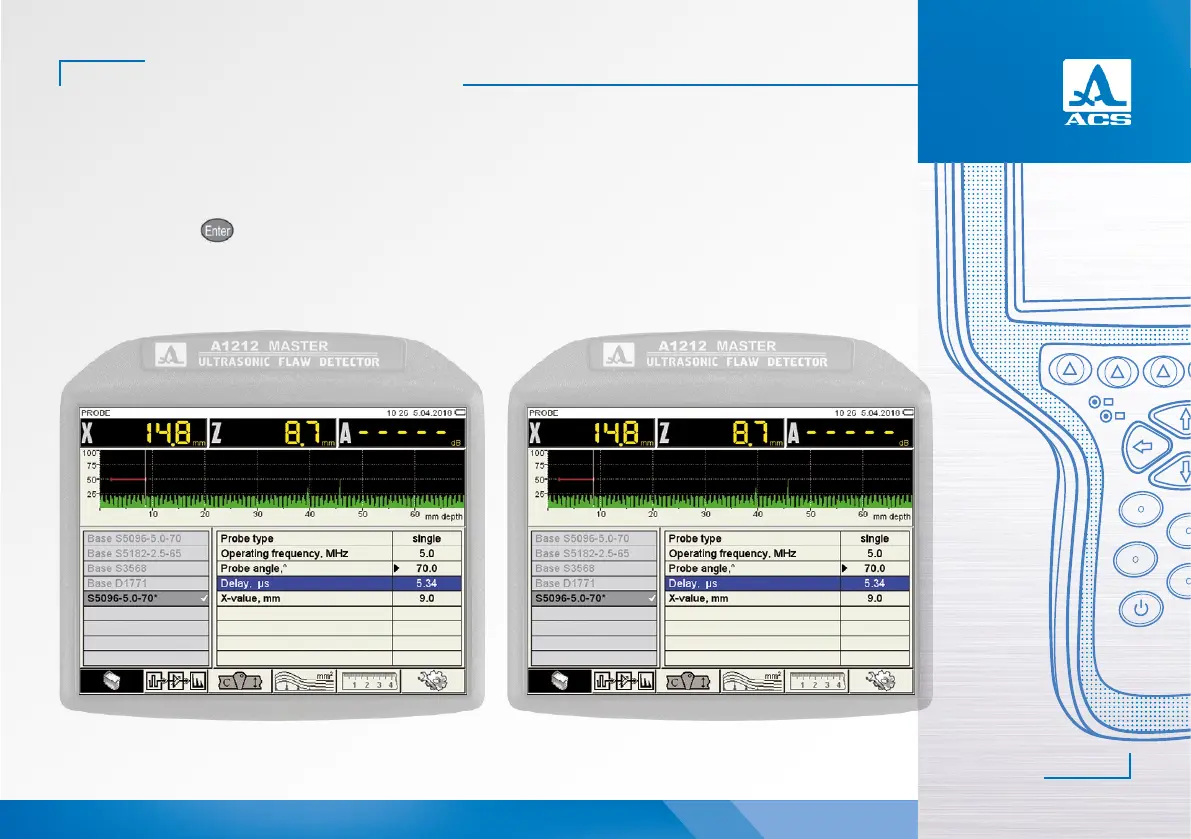

Figure 43 Figure 44
that the configuration taken as a basic one will remain the same.
Note: The word “basic” is not used in the process of the automating naming when a new configuration is being created
based on the any basic configuration.
Figure 43 presents the display when you edit the configuration with the name “Basic S5096 5.0 70”.
Press the key to exit the configuration of parameters when all required settings are adjusted.
A le column listing the configuration names will become active. An automatically generated temporary name of new
configuration (Figure 44) is highlighted.
New configuration becomes a current one by default.
